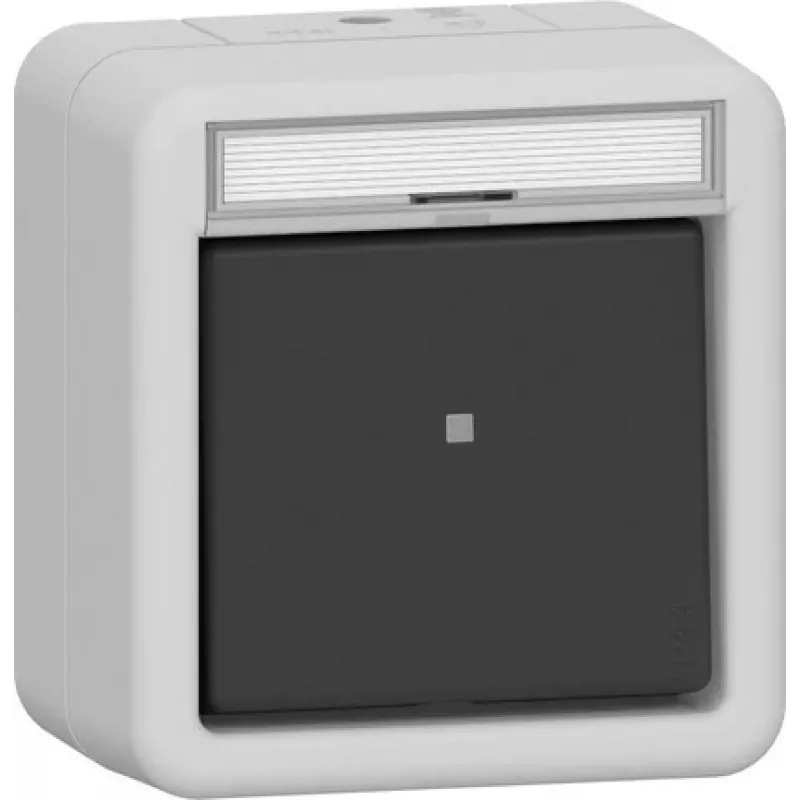

GIRA Interruptor basculante 311230 bipolar con luz de control OFF gris de superficie

Surface-mounted rocker switch with 2-pole switching and glow lamp indicator that illuminates when the switch is OFF, ideal for locating the switch in dark or damp environments. The grey thermoplastic housing is shatterproof and halogen-free, suitable for protected outdoor areas and damp rooms.

Advantages

The glow lamp indicator provides clear visual feedback when the circuit is OFF, enhancing safety and convenience. The 2-pole switching ensures complete disconnection of both live and neutral conductors. Surface mounting allows easy installation on walls or panels without flush-mounting boxes.

Suitable for

• Damp rooms and protected outdoor areas
• Switching lighting or small appliances up to 10 A
• Installations requiring visible OFF status

Key specifications

• Switching function: ON/OFF with OFF indicator (Kontroll-Aus)
• Number of poles: 2
• Indicator light: Glow lamp, illuminates when OFF
• Rated voltage: 250 V AC
• Rated current: 10 A
• Protection rating: IP44
• Material: Thermoplastic, shatterproof, halogen-free
• Connection: Screw terminals
• Mounting: Surface-mounted (AP)
• Colour: Grey

Recommendations

For reliable switching with clear OFF indication in damp or outdoor locations, this GIRA rocker switch offers robust construction and easy surface mounting.
