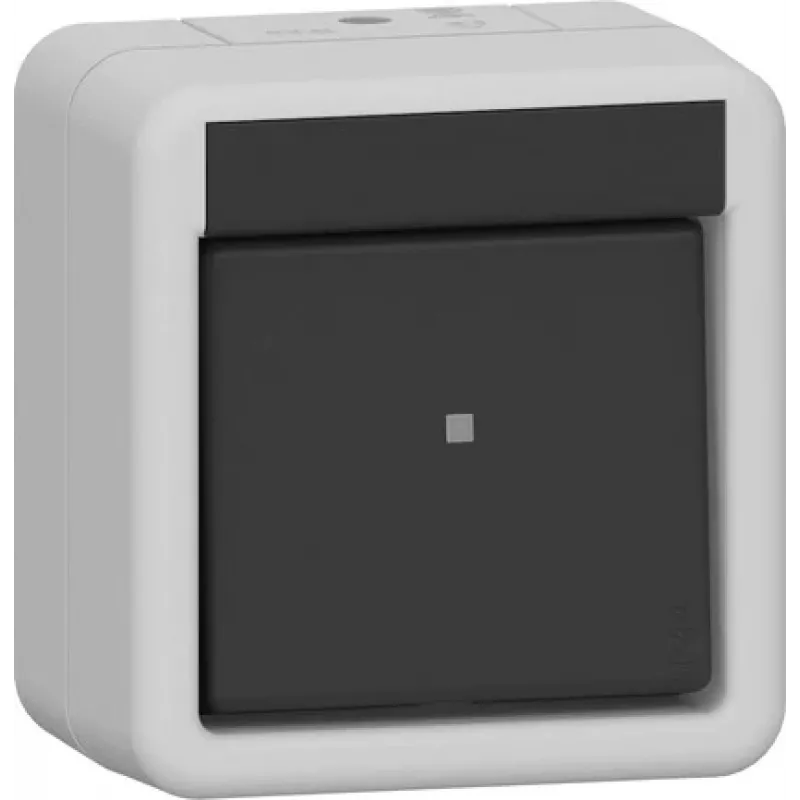

GIRA interruptor de tecla 310230 apagado bipolar WG AP gris (310230)

The GIRA Wippschalter 310230 Aus 2-p WG AP gr is a surface-mounted two-pole OFF switch designed for wet and damp environments, offering reliable circuit interruption with a splash-proof IP44 rating. Its grey thermoplastic housing is shatterproof and UV-resistant, ensuring durability in demanding conditions. Unlike standard switches, this model provides a positive break with two-pole disconnection for enhanced safety.

Highlights

• 2-pole OFF switching function for complete circuit isolation
• Surface-mounted (AP) design for easy installation on walls or boxes
• IP44 splash-proof protection for use in damp locations
• Robust grey thermoplastic housing, shatterproof and UV-resistant
• Screw terminals accommodate conductors up to 2.5 mm²

In daily use

Ideal for workshops, basements, outdoor covered areas, and utility rooms, this switch provides a clear tactile response and a secure grip even with wet hands. The halogen-free material adds an extra layer of safety in case of fire, while the wide operating temperature range from -25 to +40 °C ensures reliable performance year-round.

Full specifications

• Switching function: 2-pole OFF switch
• Mounting type: Surface-mounted (AP)
• Protection class: IP44 (splash-proof)
• Rated voltage: 250 V AC
• Rated current: 10 A
• Connection type: Screw terminals
• Material: Thermoplastic (shatterproof, UV-resistant)
• Colour: Grey
• Design line: Gira WG AP (Wasserdicht Aufputz)
• Number of rockers: 1
• Terminal capacity: up to 2.5 mm²
• Operating temperature: -25 to +40 °C
• Halogen-free: Yes

Final note

A dependable switch for environments where moisture resistance and positive circuit breaking are essential.
