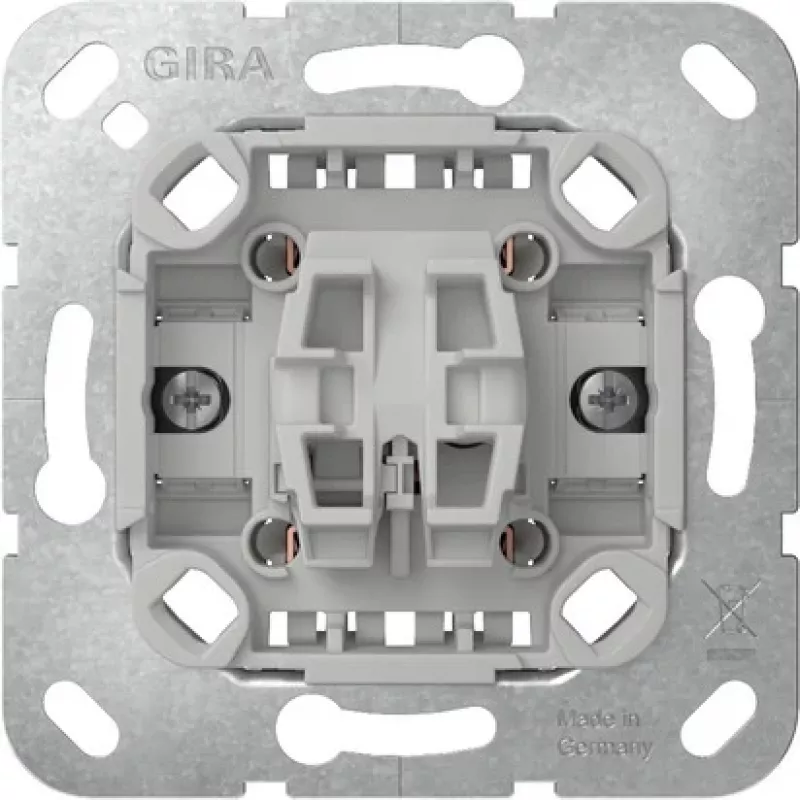

GIRA Mecanismo de pulsador, 1 polo NA, 10 A, empotrar, System 55 312700

Electricians and installers use the GIRA push button switch insert as the functional core behind compatible rockers in Gira System 55 frames. It provides momentary switching for lighting or general loads in residential and commercial buildings.

Key specifications

• Contact configuration: 1-pole Normally Open (NO)
• Rated voltage: 250 V AC
• Rated current: 10 A
• Connection type: Screw terminals
• Mounting type: Flush-mounted
• Material: Thermoplastic, halogen-free
• Series: Gira System 55 compatible

Why choose it

This insert is compatible with a wide range of Gira cover plates, including System 55, E2, Event, Esprit, S-Color, Standard 55, and F100. Its momentary action suits applications where a brief contact is needed, such as staircases or pulse-controlled circuits.

Ideal use cases

• Lighting control with momentary switches
• Pulse activation for automation systems
• Replacement or new installations in flush-mounted boxes

Good to know

The insert has an installation depth of approximately 32 mm and is designed for use with suitable rockers or covers from the Gira range.
