GIRA relé de separación 086100 control de persianas/estores carril DIN 230V AC 2NO

With a maximum switching current of 3 A for inductive loads, the GIRA Isolation Relay 086100 provides reliable electrical separation between control and motor circuits in shutter and blind applications.

Overview

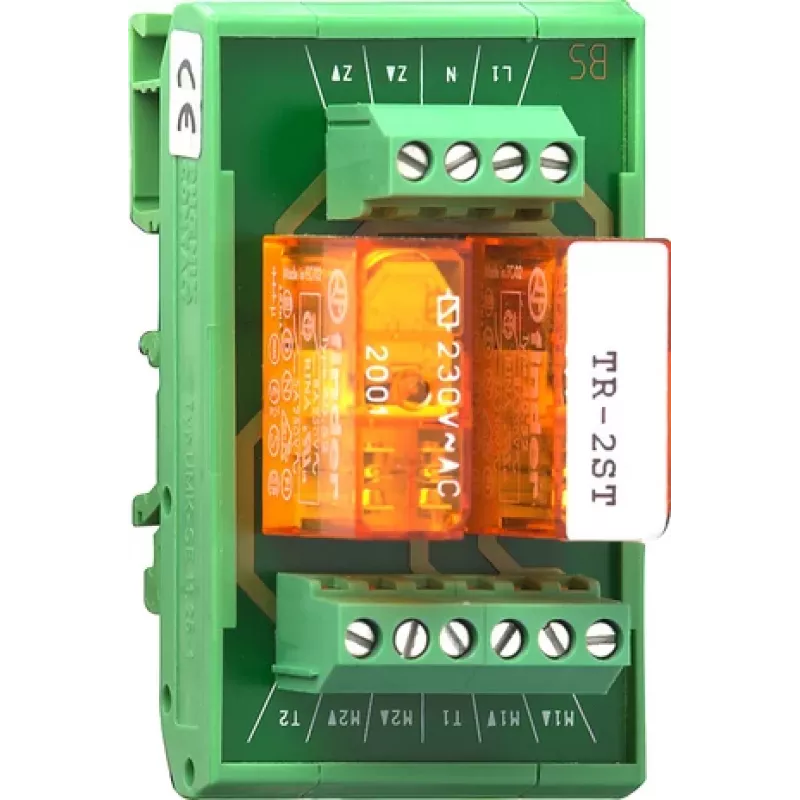

The GIRA Isolation Relay 086100 is a DIN rail mounted device designed for shutter and blind control systems. It features two potential-free contacts for up/down control and two control inputs, enabling safe operation of motors while preventing short circuits between multiple control points.

What stands out

• Electrical separation of control and motor circuits
• Prevents short circuits between multiple control points
• Compact 1-module (TE) DIN rail design
• 230 V AC operating voltage for both control and motor circuits
• 2 potential-free contacts for up/down control

Technical details

• Product Type: Isolation Relay
• Application: Shutter/Blind Control
• Mounting Type: DIN Rail (REG)
• Number of Modules (TE): 1
• Operating Voltage (Control Circuit): 230 V AC
• Operating Voltage (Motor Circuit): 230 V AC
• Switching Current (max.): 3 A (inductive loads)
• Output Type: 2 potential-free contacts (Up/Down)
• Input Type: 2 control inputs (Up/Down)
• Connection Type: Screw Terminals
• Protection Class: IP20
• Operating Temperature Range: 0 to +45 °C
• Storage Temperature Range: -25 to +70 °C
• Housing Material: Plastic
• Color: Light Grey / White
• Standards: VDE compliant

Our verdict

The GIRA Isolation Relay 086100 is a robust solution for shutter and blind control, offering reliable isolation and short-circuit prevention in a compact DIN rail format.
