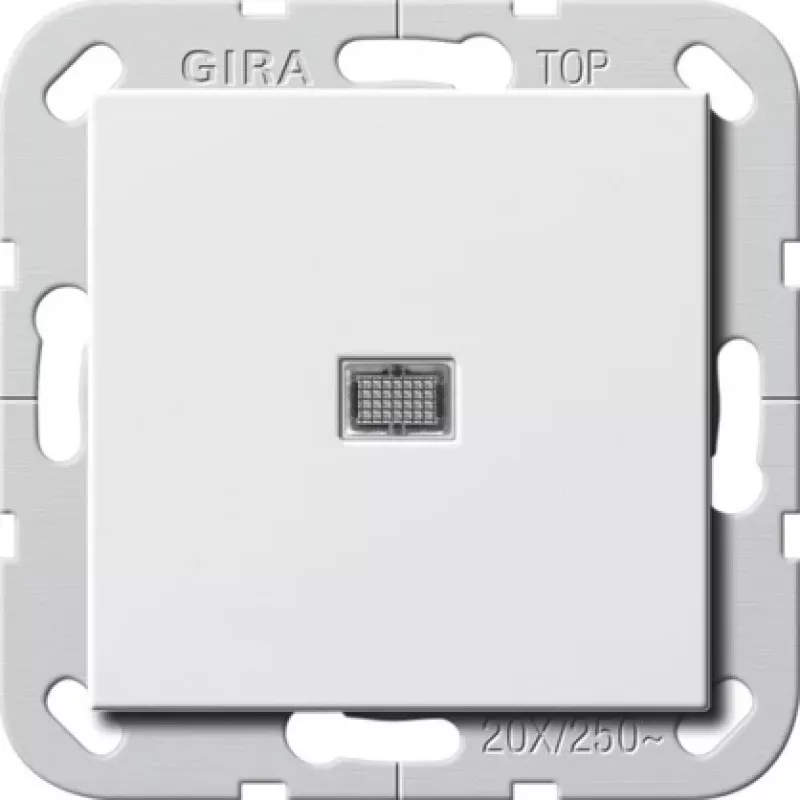

Gira System 55 Mecanismo de interruptor de tecla bipolar OFF, blanco puro mate 283403

Electricians and installers use this Gira System 55 rocker switch insert to control lighting circuits in residential and commercial buildings. It is a 2-pole OFF switch rated for 250 V AC and 10 A, designed for flush-mounted installation in standard wall boxes. The insert is part of the Gira System 55 modular range and pairs with compatible frames and rocker covers (sold separately).

Key specifications

• Switching function: OFF switch (2-pole)
• Rated voltage: 250 V AC
• Rated current: 10 A
• Mounting type: Flush-mounted
• Connection type: Screw terminals
• Material: Thermoplastic
• Colour: Pure white matt
• Halogen-free: Yes
• Protection class: IP20
• Conductor cross-section: 1.5 - 2.5 mm²
• Installation depth: 32 mm
• Operating temperature: -5 to +40 °C

Why choose it

The switch insert is halogen-free and made of durable thermoplastic. Its screw terminals accept solid conductors from 1.5 to 2.5 mm², ensuring a secure connection. The pure white matt finish matches the Gira System 55 aesthetic and can be combined with various rocker designs.

Ideal use cases

• Switching lighting circuits in homes and offices
• Controlling electrical loads up to 10 A
• Flush-mounted installations with Gira System 55 frames

Good to know

The insert is not illuminated, but it can be retrofitted with a lamp if indication is required. It is designed for indoor use (IP20) and fits into standard flush-mounted boxes with a depth of at least 32 mm.
