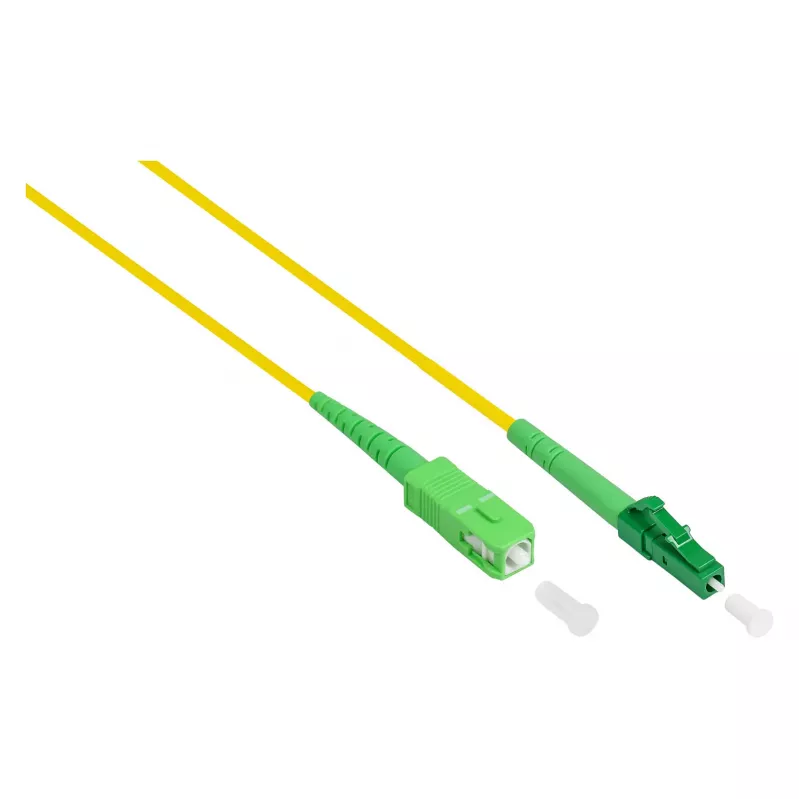

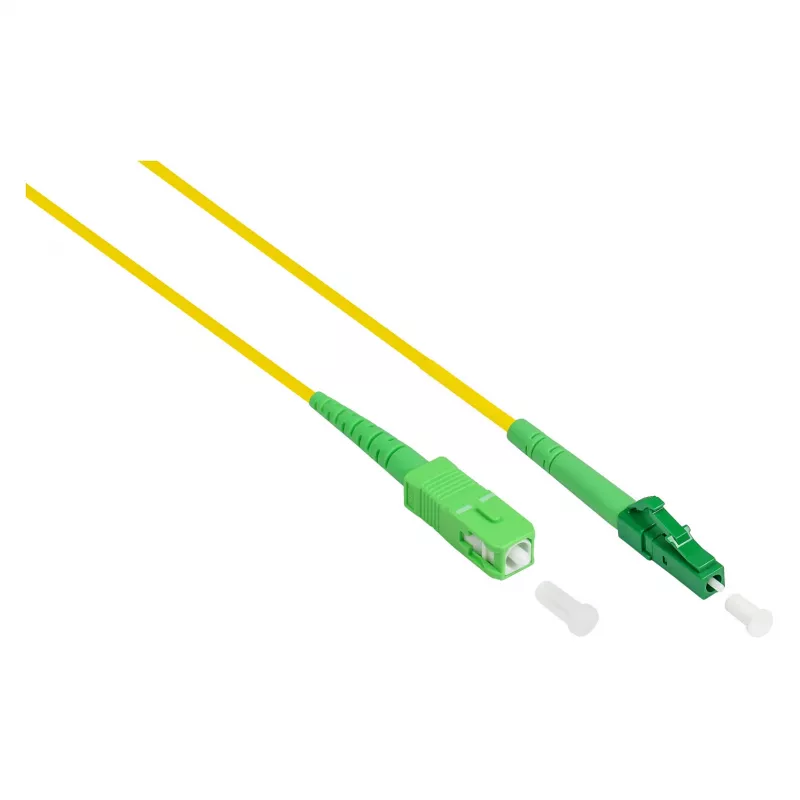

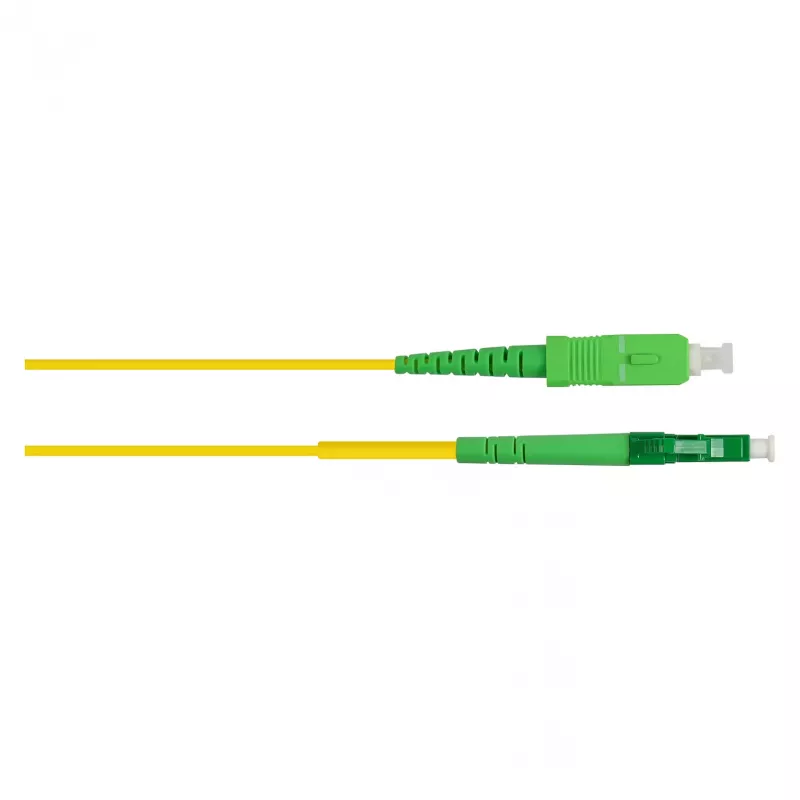

Good Connections OS2 cable de fibra óptica simplex LC/SC SM 9/125 0,5 m amarillo

The Good Connections OS2 Simplex Fiber Optic Patch Cable is a high-performance single-mode patch cord designed for reliable data transmission in fiber optic networks. With LC to SC connectors and a length of 0.5 meters, this cable is ideal for short-distance connections in data centers, telecommunications rooms, and enterprise networks.

Advantages

This patch cable offers low insertion loss and high return loss, ensuring minimal signal degradation and excellent performance. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in case of fire, making it suitable for use in confined spaces. The yellow jacket color indicates single-mode fiber, allowing for easy identification.

Suitable for

• Fiber optic network installations requiring single-mode connections
• Data centers and server rooms
• Telecommunications and broadband networks
• FTTx (Fiber to the x) applications

Key specifications

• Fiber Type: Single-mode (OS2)
• Connector Type A: LC
• Connector Type B: SC
• Core/Cladding Diameter: 9/125 µm
• Cable Length: 0.5 m
• Construction: Simplex
• Jacket Material: LSZH
• Jacket Color: Yellow
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 50 dB
• Ferrule Material: Zirconia Ceramic
• Polish Type: UPC
• Operating Wavelengths: 1310 nm, 1550 nm
• Cable Diameter: Approx. 3.0 mm
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, REACH, CE

Recommendations

For optimal performance, ensure proper handling and avoid sharp bends. This cable is compatible with standard LC and SC ports. Suitable for use with 9/125 µm single-mode equipment.
