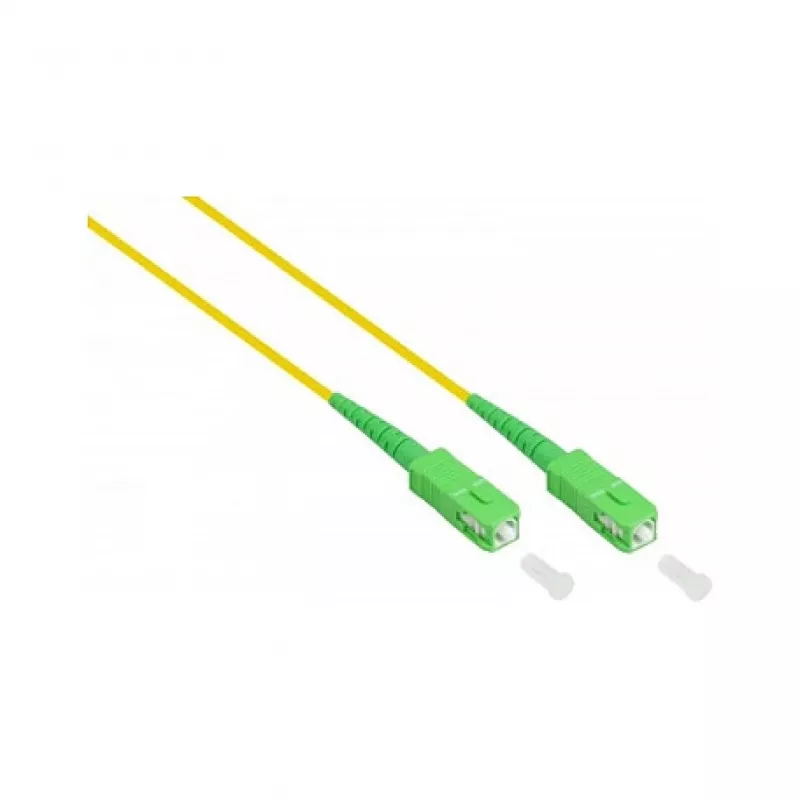

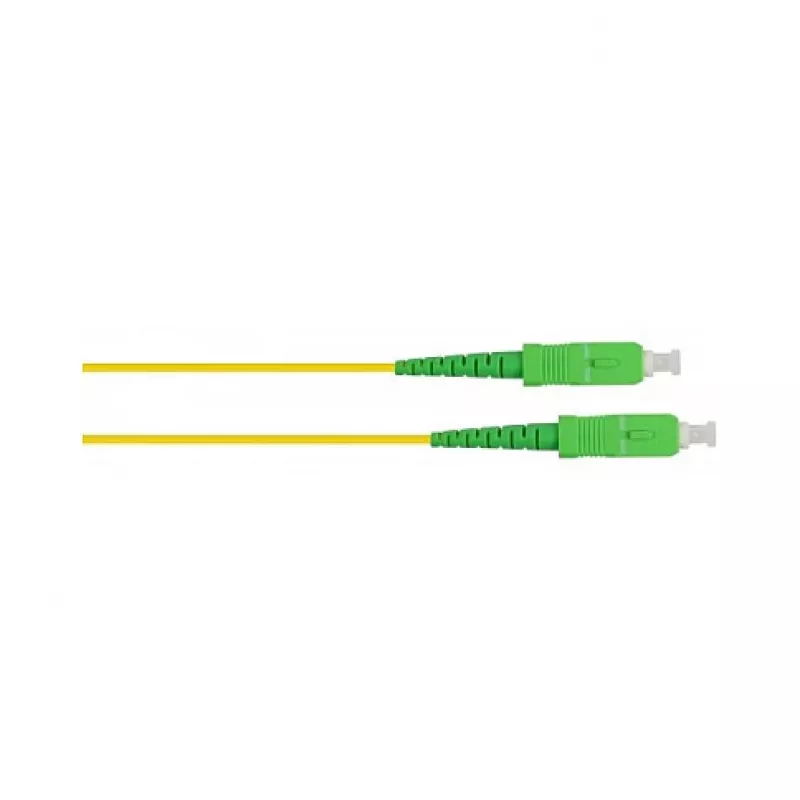

GoodConnections cable de fibra óptica OS2 Simplex SC/SC SM 9/125 30m LSZH amarillo

Engineered for high-performance single-mode networks, this GoodConnections OS2 patch cable delivers exceptional signal integrity over 30 meters. With ultra-low insertion loss and a durable LSZH jacket, it ensures reliable, safe connectivity in demanding environments.

Overview

This fiber optic patch cable is a professional-grade solution for data centers, enterprise networks, and telecommunications installations. It features a simplex design with SC connectors on both ends, providing a secure and stable connection for single-mode applications. The OS2 classification guarantees optimal performance for long-distance transmissions, supporting wavelengths of 1310nm and 1550nm.

What stands out

• Ultra-low insertion loss (≤0.3 dB) ensures minimal signal degradation.
• High return loss (≥50 dB) reduces reflections for cleaner transmission.
• LSZH (Low Smoke Zero Halogen) jacket enhances safety by limiting toxic emissions in case of fire.
• Yellow jacket color provides easy identification of single-mode fiber.
• Duplex construction (as per research) offers flexibility for bidirectional communication.

Technical details

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Single-mode (SM)
• Fiber Class: OS2
• Connector Type: SC/SC
• Cable Construction: Duplex
• Fiber Core Diameter: 9 µm
• Fiber Cladding Diameter: 125 µm
• Cable Length: 30 m
• Connector Polish: UPC
• Jacket Material: LSZH
• Jacket Color: Yellow
• Insertion Loss (typical): ≤ 0.3 dB
• Return Loss (typical): ≥ 50 dB
• Supported Wavelengths: 1310nm, 1550nm
• Attenuation at 1310nm: ≤ 0.35 dB/km
• Attenuation at 1550nm: ≤ 0.25 dB/km
• Operating Temperature: -20°C to 70°C

Our verdict

For professionals requiring a reliable, high-performance single-mode fiber link, this GoodConnections patch cable delivers outstanding optical characteristics and robust construction. Its LSZH jacket and precise engineering make it a trustworthy choice for critical network infrastructure.
