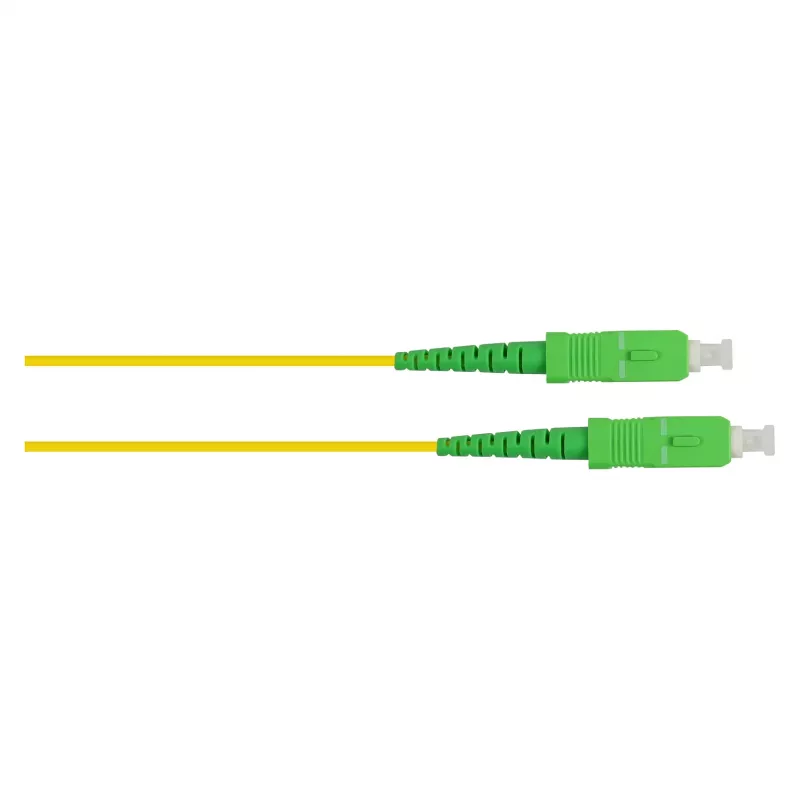

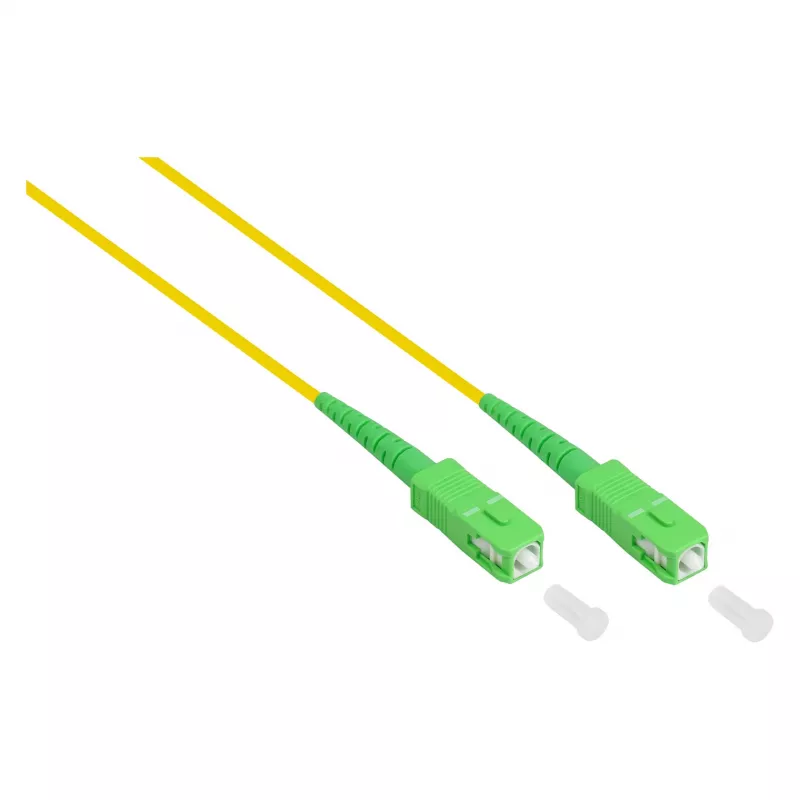

Cable de parcheo de fibra óptica monomodo OS2 SC/SC UPC simplex 9/125µm LSZH 10 m amarillo Good Connections

With an insertion loss of less than 0.3 dB, this OS2 singlemode fiber optic patch cable delivers exceptional signal clarity over its 10-meter length. The SC/UPC to SC/UPC simplex construction ensures a reliable, low-reflection connection for high-speed network backbones, data centers, and telecom applications.

Overview

Engineered for performance, the Good Connections LW-S910SASA patch cable features a 9/125µm OS2 singlemode fiber core, optimized for long-distance transmission with minimal attenuation. The cable is terminated with SC/UPC connectors on both ends, providing a secure and stable link for your fiber optic infrastructure. The yellow LSZH (Low Smoke Zero Halogen) jacket not only aids in identification but also enhances safety by emitting low smoke and no halogen in the event of a fire.

What stands out

• Low insertion loss (< 0.3 dB) and high return loss (> 50 dB) for superior signal integrity
• OS2 singlemode fiber supports high bandwidth over long distances
• SC/UPC connectors ensure precise alignment and low back reflection
• LSZH jacket is flame-retardant and safe for indoor use
• Simplex design ideal for single-fiber bidirectional links or paired for duplex

Technical details

• Fiber type: OS2 singlemode 9/125µm
• Connectors: SC/UPC to SC/UPC
• Cable length: 10 meters
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: Yellow
• Cable diameter: 3.0 mm
• Insertion loss: < 0.3 dB typical
• Return loss: > 50 dB typical
• Operating temperature: -20°C to 70°C
• Minimum bend radius: 30 mm
• Standards: IEC 60794-2, TIA/EIA-568-C.3, RoHS, CE

Our verdict

An excellent choice for professionals seeking a dependable singlemode patch cable. The combination of low loss, robust LSZH jacket, and precise SC/UPC connectors makes it a solid investment for any fiber optic network.
