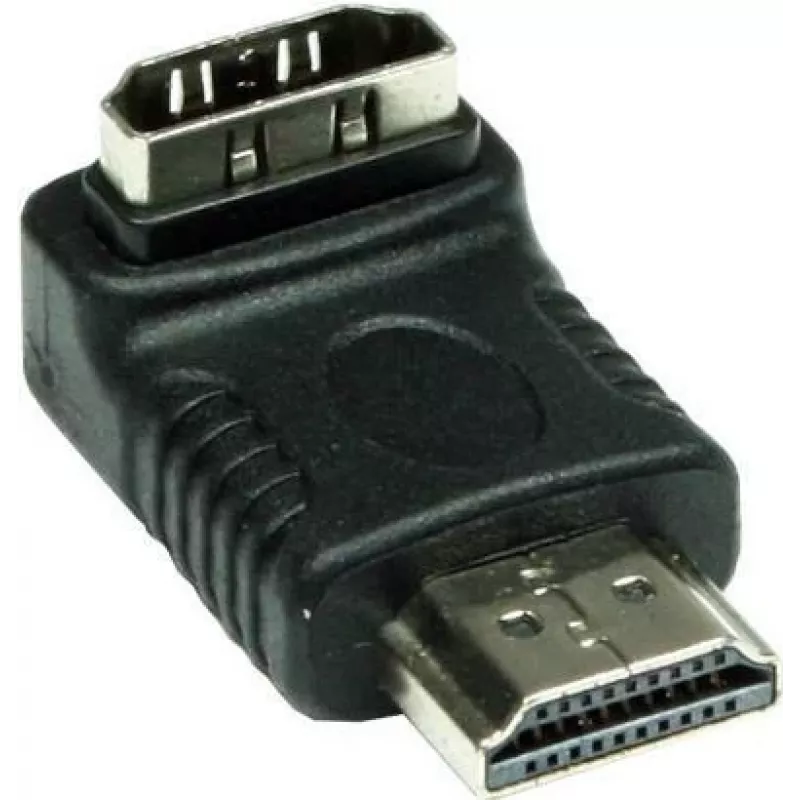

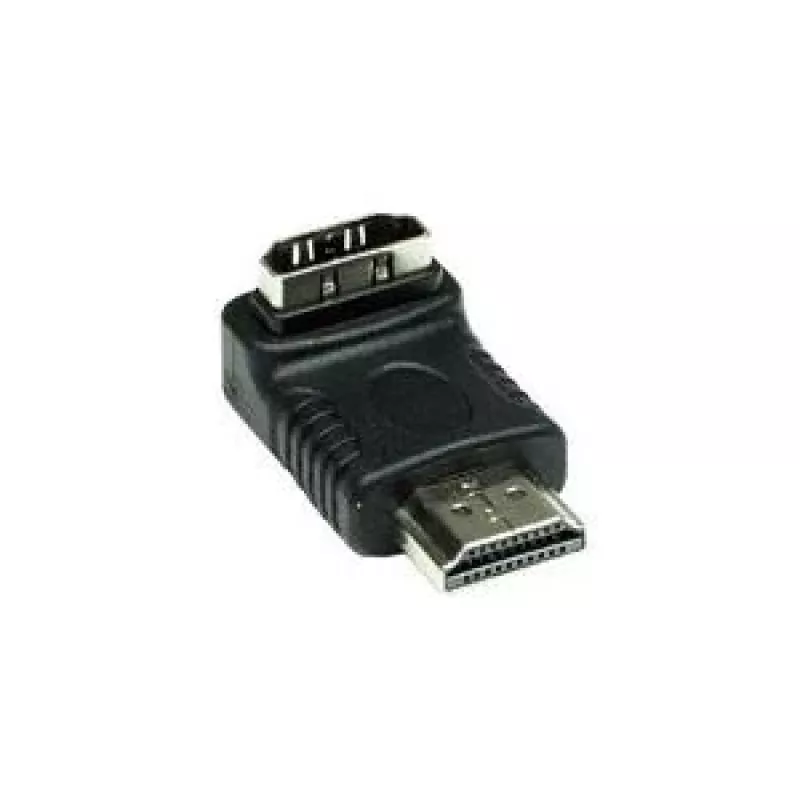

Good Connections adaptador HDMI de 19 pines conector macho a conector hembra, acodado hacia abajo, negro (HDMI-FMWU)

Wall-mounted TVs and tight AV cabinets often leave no room for a standard HDMI plug, forcing cables into sharp bends that stress connectors and degrade signal quality. The Good Connections HDMI-FMWU solves this by routing the connection 90 degrees downward, so the cable drops cleanly behind the display instead of jutting out. It is a simple, durable fix for cramped installations.

Who is it for

This adapter is ideal for home theatre enthusiasts, professional AV installers, and anyone mounting a TV or monitor flush against a wall. It is equally useful in server racks, media furniture, and other spaces where a straight HDMI connection simply does not fit.

Main features

• 90-degree downward angle relieves cable strain and saves space behind wall-mounted screens
• HDMI 2.0 compliant with 18 Gbps bandwidth for 4K Ultra HD at 60 Hz, HDR, and Deep Color
• Gold-plated 19-pin contacts ensure reliable signal transfer and resist corrosion
• Fully shielded PVC/ABS housing protects against electromagnetic interference
• Supports HDCP 2.2, ARC, and CEC for seamless compatibility with modern devices

Specifications

• Connector 1: HDMI Type A male (19-pin)
• Connector 2: HDMI Type A female (19-pin)
• Orientation: Angled down (90 degrees)
• HDMI standard: 2.0 (backward compatible with earlier versions)
• Maximum resolution: 4K Ultra HD (3840 x 2160) at 60 Hz
• Data transfer rate: up to 18 Gbps
• Audio support: Multi-channel audio, ARC
• Video features: HDR, Deep Color
• Other features: HDCP 2.2, CEC
• Housing material: PVC / ABS
• Contact plating: Gold
• Shielding: Yes
• Colour: Black

Tips

Before purchasing, check the direction your HDMI port faces and confirm that a downward angle matches your cable routing. For best results, pair this adapter with a high-speed HDMI cable rated for 18 Gbps to maintain full 4K HDR performance. If you need the cable to exit upward or sideways, look for the corresponding Good Connections angled variant.
