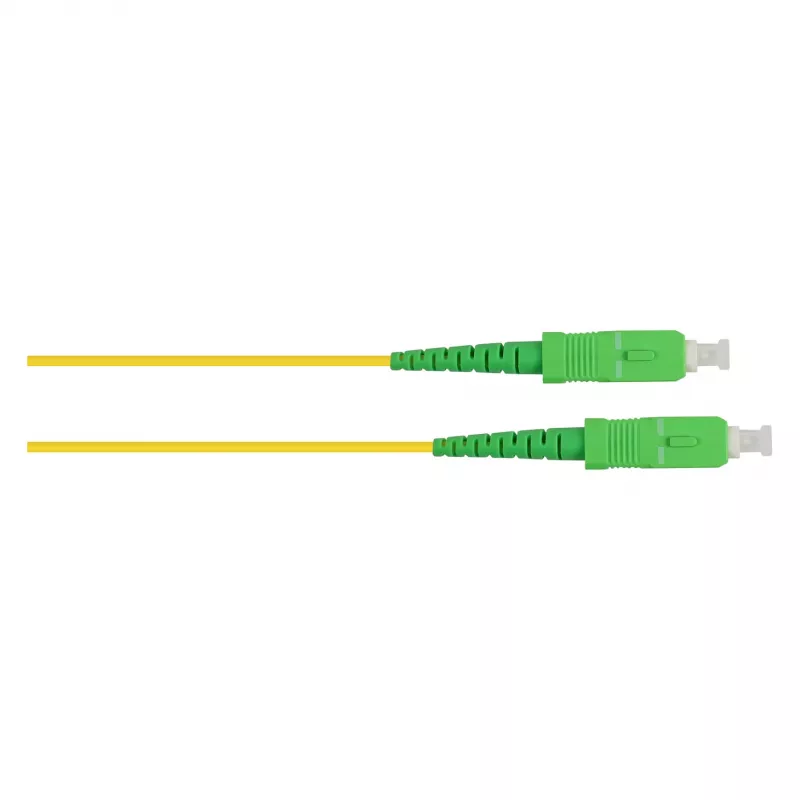

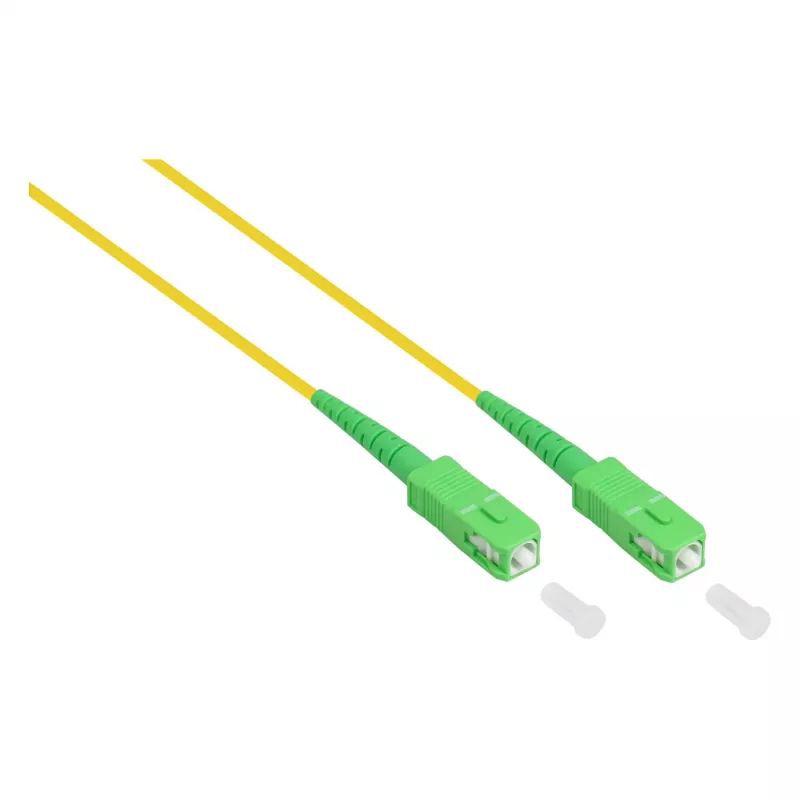

Good Connections cable de conexión de fibra óptica OS2 monomodo SC/SC, 9/125 µm, 3 m, amarillo

Fiber optic patch cable for reliable single-mode connections over short distances. The OS2 fiber with 9/125 µm core/cladding diameter ensures low attenuation and high return loss, making it ideal for high-speed data transmission in telecom and data center environments. The SC connectors with UPC polish provide stable, low-loss connections, while the LSZH jacket offers safety in case of fire. With a length of 3 meters and a yellow jacket for easy identification, this cable is ready for immediate deployment.

Advantages

Low insertion loss of less than 0.3 dB and high return loss of over 50 dB ensure signal integrity. The LSZH jacket is halogen-free and low smoke, improving safety in enclosed spaces. The single-mode OS2 fiber supports long-distance transmission up to 10 km at 10 Gbps, making it future-proof. The simplex construction keeps the cable lightweight and flexible for easy routing.

Suitable for

• Telecom rooms and data centers
• FTTH (Fiber to the Home) installations
• High-speed network backbones
• Industrial and enterprise networks

Key specifications

• Fiber type: Single-mode OS2, 9/125 µm
• Connectors: SC/UPC to SC/UPC
• Cable length: 3 m
• Jacket: LSZH, yellow
• Insertion loss: < 0.3 dB
• Return loss: > 50 dB
• Operating temperature: -20°C to +70°C

Recommendations

For optimal performance, pair with single-mode transceivers and keep bend radius above 30 mm. Inspect connectors before use and clean with appropriate tools if necessary. Store in a dry environment away from direct sunlight.
