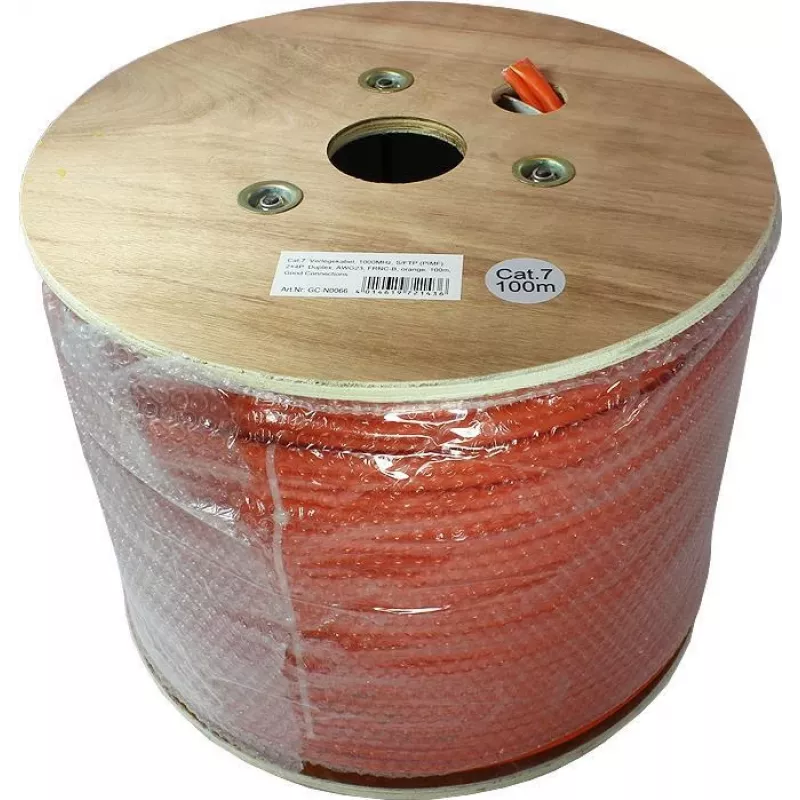

Good Connections Cable de instalación Cat.7 S/FTP PiMF, dúplex, AWG23, FRNC-B, Naranja, 100m

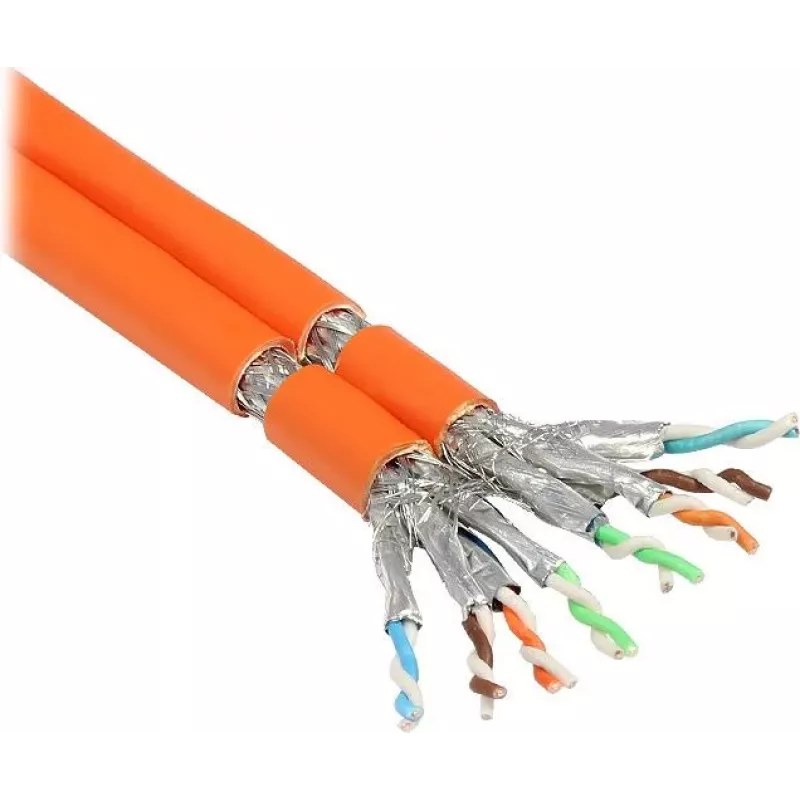

The Good Connections GC-N0066 is a high-performance Cat.7 installation cable designed for reliable data transmission in structured cabling networks. With S/FTP shielding and PiMF pair shielding, it provides excellent protection against electromagnetic interference, ensuring stable 10 Gigabit Ethernet performance up to 1000 MHz. The duplex construction (2x4 pairs) and AWG23 solid copper conductors guarantee low signal loss and long-distance transmission. The FRNC-B jacket is flame retardant, halogen-free, and low smoke, making it ideal for installations in public buildings and data centers. This 100-meter bulk cable is suitable for permanent links in accordance with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2 standards.

Advantages

High bandwidth of 1000 MHz supports 10GBASE-T and future applications. S/FTP shielding minimizes crosstalk and external noise. Duplex design allows for two separate 4-pair channels in one cable. FRNC-B jacket ensures safety in case of fire. Easy installation with robust AWG23 conductors.

Suitable for

• Data center cabling
• Enterprise network infrastructure
• Industrial Ethernet
• Structured cabling systems
• High-speed data transmission up to 10 Gbit/s

Key specifications

• Cable type: Cat.7 S/FTP PiMF Duplex
• Frequency: 1000 MHz
• Conductor: AWG23 solid copper
• Number of pairs: 2x4 (8 pairs total)
• Jacket: FRNC-B, orange
• Length: 100 m
• Impedance: 100 Ohm
• Halogen-free: Yes
• Flame retardancy class: B

Recommendations

For optimal performance, use with Cat.7 connectors and ensure proper grounding of the S/FTP shield. This cable is ideal for permanent installations where high data rates and reliability are required.
