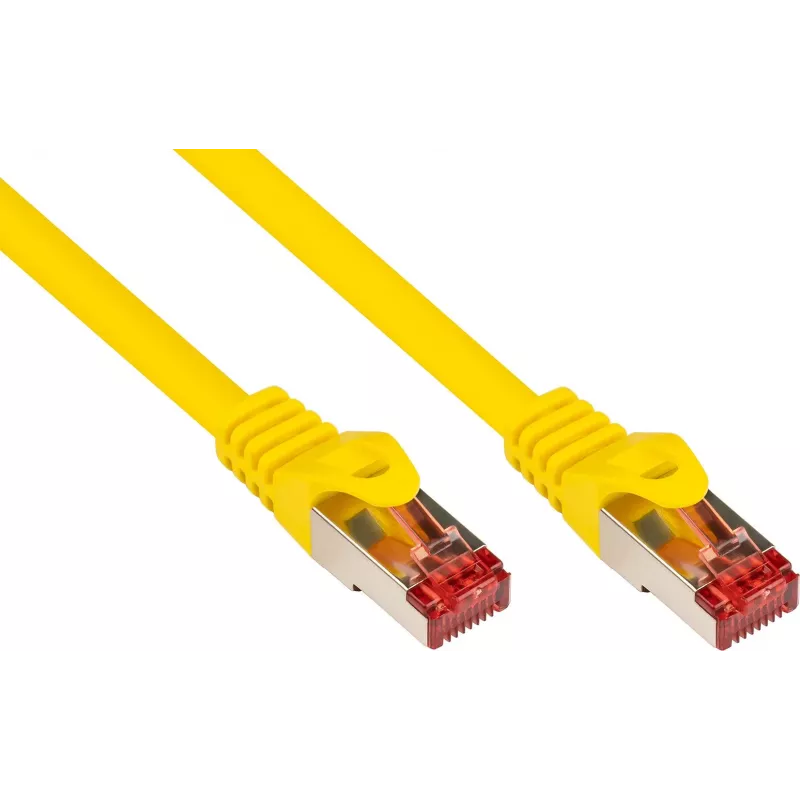

GoodConnections RNS® cable de parcheo Cat. 6 S/FTP con Snagless Boot, PiMF, PVC, 250 MHz, amarillo, 25 m 8060-250Y

Built for reliable gigabit links in demanding environments, this GoodConnections RNS® patch cable combines Cat. 6 performance with robust S/FTP shielding and a clever snagless boot that protects the locking tab during frequent moves. The 25-metre yellow jacket stands out in crowded racks and cable trays, while the stranded copper conductors keep the cable flexible enough for tight bends.

Highlights

• Cat. 6 rated with 250 MHz bandwidth for Gigabit Ethernet (10/100/1000Base-T)

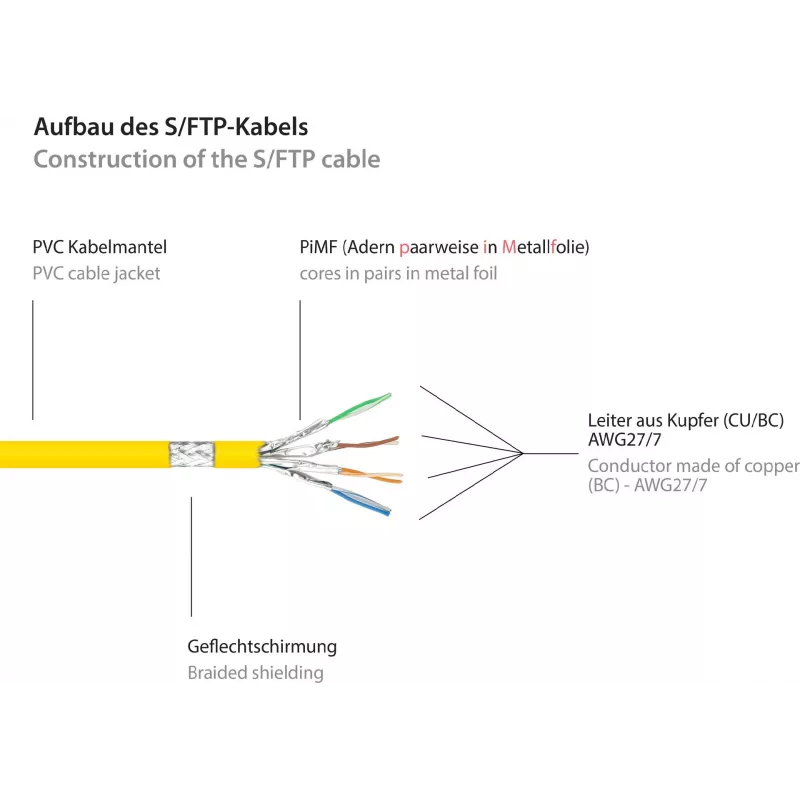

• S/FTP shielding: overall braid plus foil around each pair (PiMF) for excellent EMI/RFI rejection

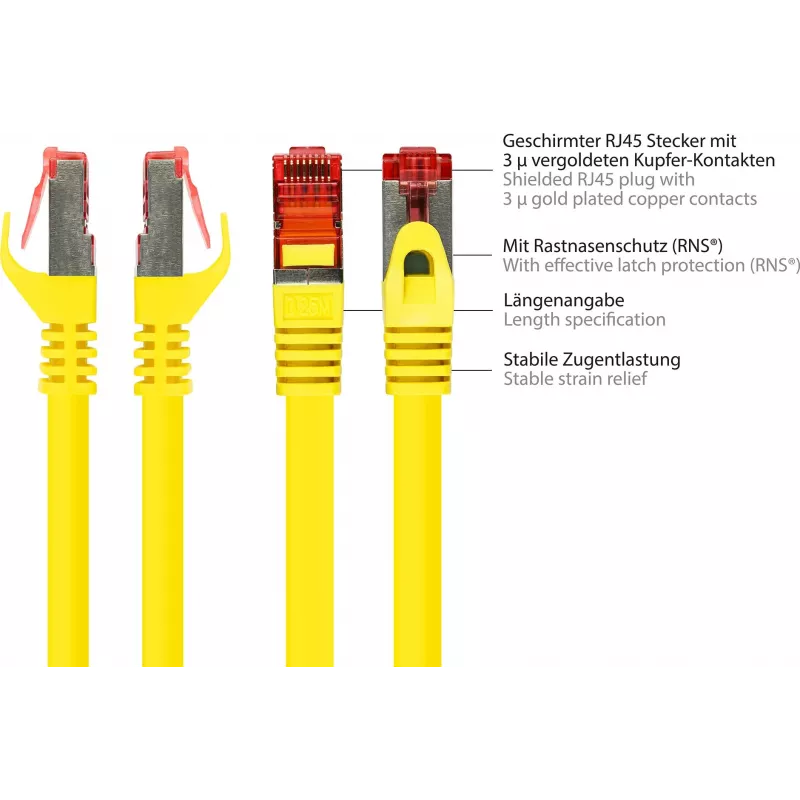

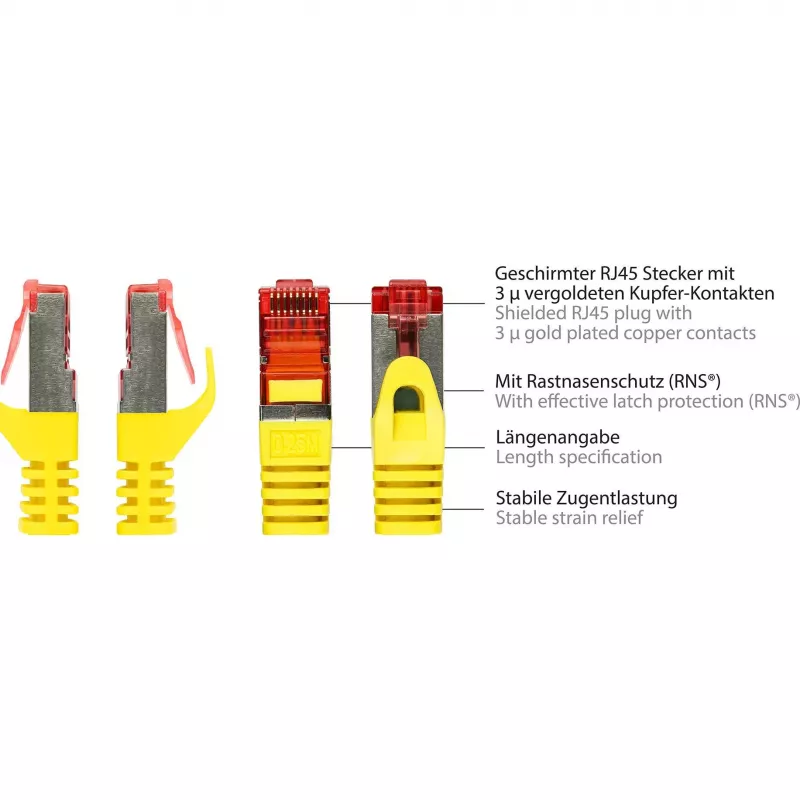

• Snagless boot (RNS® Rastnasenschutz) prevents the RJ45 locking tab from breaking or snagging
• Stranded AWG 27/7 copper conductors for flexibility and easy routing
• Durable PVC jacket in high-visibility yellow, 25 m length
• RoHS compliant, 100 Ohm impedance, TIA/EIA 568B wiring

In daily use

The snagless boot is a real time-saver when you are constantly patching and unpatching in a busy server room. The boot slides over the locking tab, so it will not catch on adjacent cables or break off when pulling the cable through a bundle. The yellow colour makes it easy to trace connections across long runs, and the stranded conductors mean the cable coils and uncoils without kinking.

Full specifications

• Cable type: Ethernet patch cable
• Category: Cat. 6
• Shielding: S/FTP (Screened/Foiled Twisted Pair), PiMF
• Jacket material: PVC
• Frequency bandwidth: 250 MHz
• Length: 25 m
• Colour: Yellow
• Connectors: RJ45 male to RJ45 male
• Connector feature: Snagless boot (RNS®)
• Conductor material: Copper (Cu)
• Conductor construction: Stranded
• Conductor gauge: AWG 27/7
• Wiring standard: TIA/EIA 568B
• Data transfer rate: Up to 1 Gbit/s
• Impedance: 100 Ohm
• Halogen-free: No
• RoHS compliant: Yes
• Operating temperature: -20°C to 60°C

Final note

For a dependable, shielded Cat. 6 link that survives daily handling, this GoodConnections cable delivers both performance and durability in a single package.
