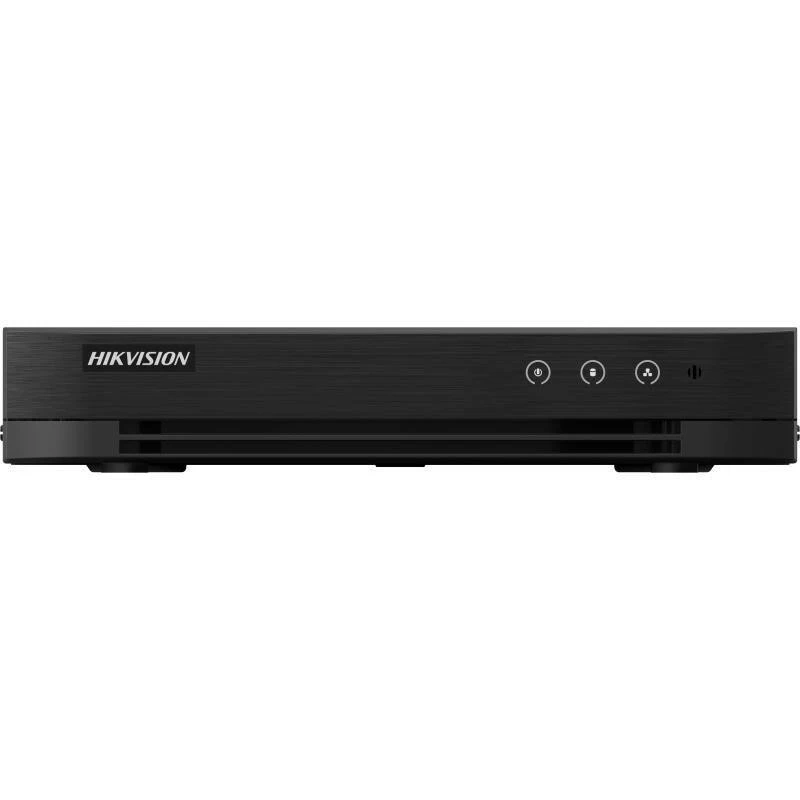

Grabador 5 en 1 Hikvision DS-7204HGHI-M1/T

The Hikvision DS-7204HGHI-M1/T is a versatile 5-in-1 hybrid DVR that supports analog and IP cameras, offering flexible video surveillance solutions for small to medium-sized installations. With HDTVI, AHD, HDCVI, and CVBS compatibility, it integrates seamlessly with existing analog systems while allowing future IP camera upgrades.

Advantages

This recorder combines multiple video standards in one device, simplifying system design and reducing costs. Its H.265 Pro+ compression saves bandwidth and storage without compromising image quality. The unit supports up to 10 TB of internal storage and provides reliable 24/7 recording.

Suitable for

• Retail stores and small businesses
• Office surveillance
• Residential security systems
• Warehouse monitoring

Key specifications

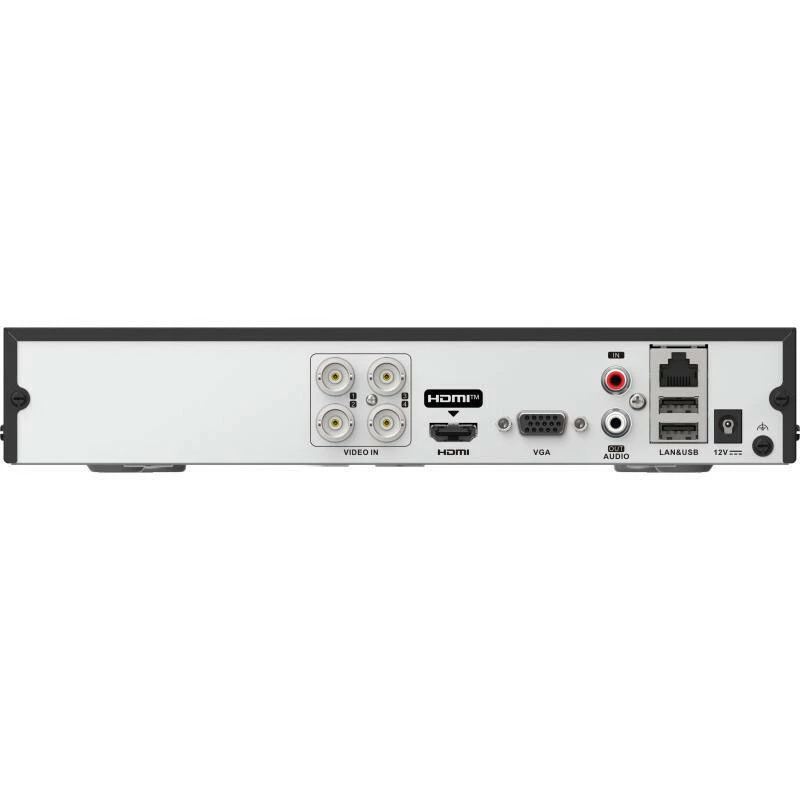

• Video Input: 4 BNC channels (TVI/AHD/CVI/CVBS) + 1 IP channel (expandable to 5 or 6 total)
• Recording Resolution: Up to 1080p Lite
• Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Audio: 1 RCA input + 4 via coax, 1 RCA output
• Video Output: 1 HDMI, 1 VGA (up to 1920x1080)
• Storage: 1 SATA interface, up to 10 TB
• Network: 1x 10/100 Mbps Ethernet
• USB: 2x USB 2.0
• Power: 12 VDC, ≤8 W (without HDD)
• Operating Temperature: -10 °C to +55 °C

Recommendations

For optimal performance, use with Hikvision HDTVI cameras and a compatible HDD. Ensure proper ventilation and stable power supply.
