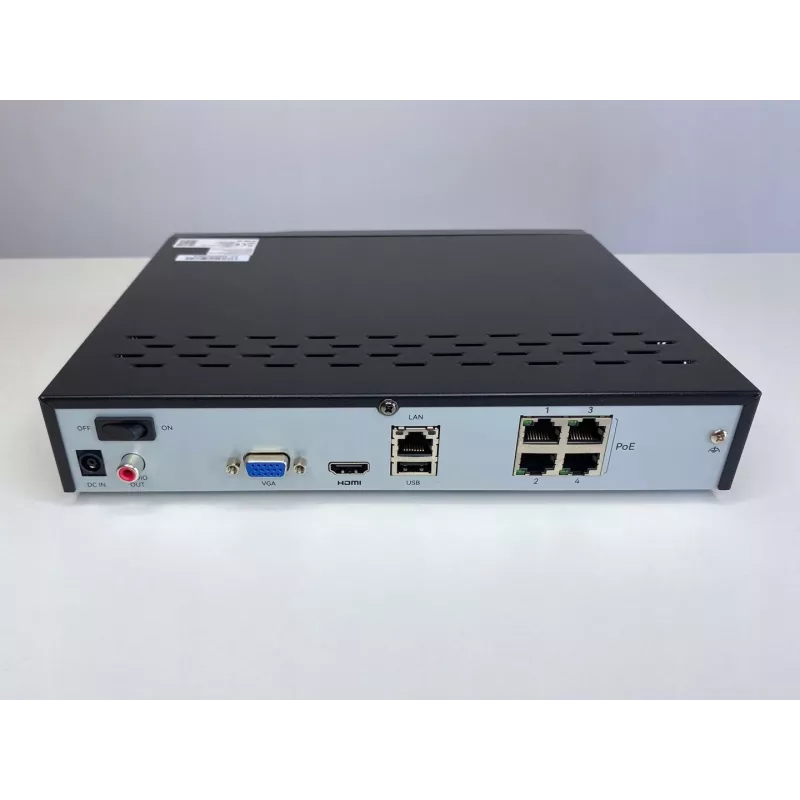

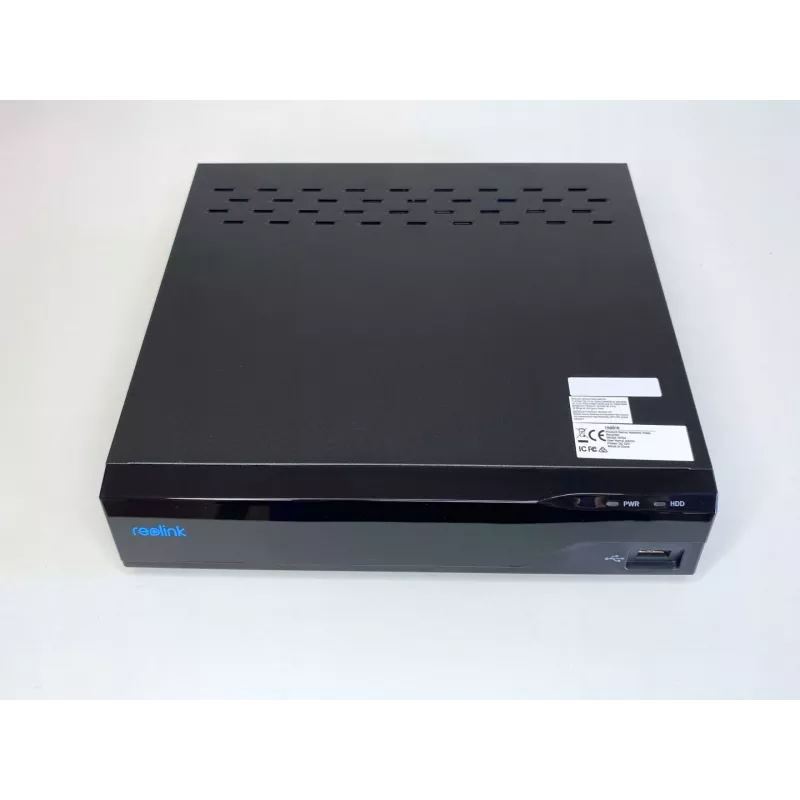

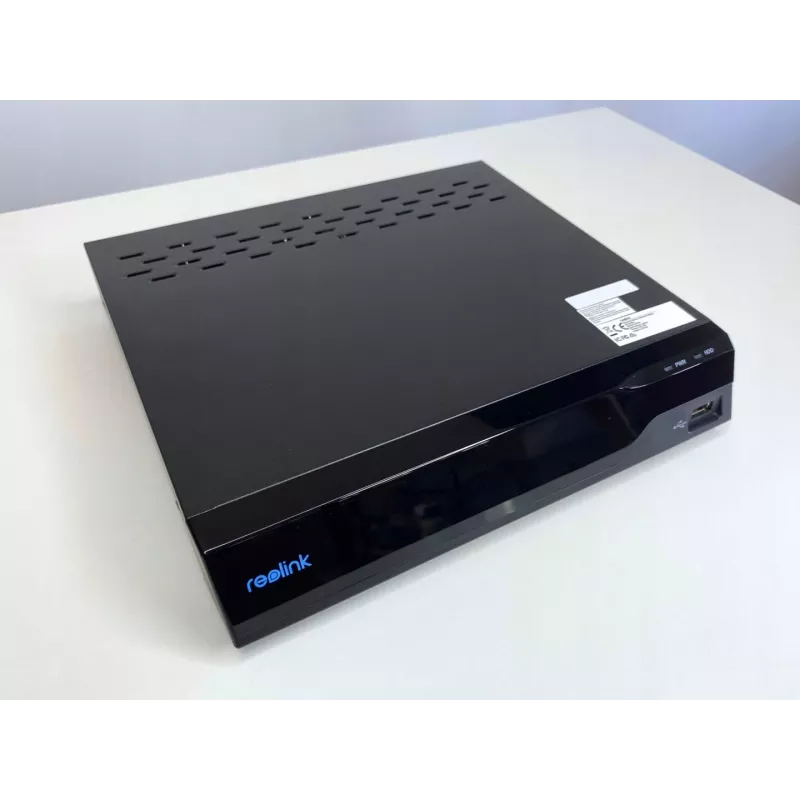

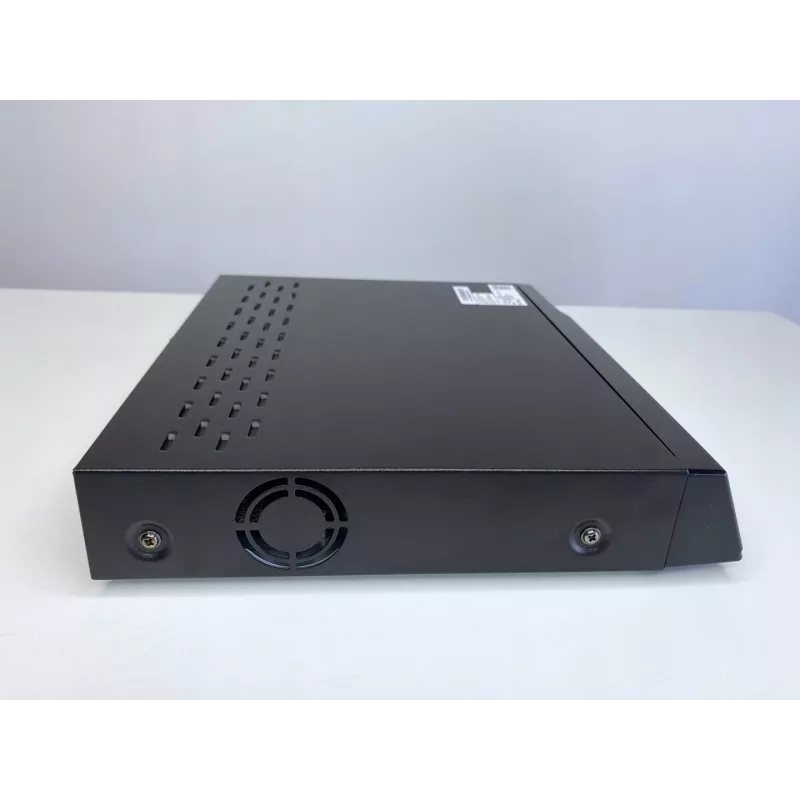

Grabador de vídeo en red Reolink PN01-4 PoE, NVR de 4 canales, H.264, PoE, HDMI, VGA, máx. 6 TB

Reolink PN01-4 is a 4-channel PoE network video recorder designed for continuous 24/7 recording and local storage. The unit supports H.264 video compression, simultaneous playback of four channels, and simplified camera connection via Power over Ethernet. It provides HDMI and VGA video outputs, one RCA audio output, two USB 2.0 ports and nine RJ-45 Ethernet ports, and supports up to 6 TB of internal storage. The recorder is compatible with macOS, Windows and iOS and works with common browsers for remote access. Operating conditions range from -10 to 45 °C with 10–90% relative humidity.

Advantages

The NVR integrates PoE ports for straightforward camera power and data connection, supports H.264 compression for efficient recording and playback of up to four channels at once, and offers both HDMI and VGA outputs for flexible monitor setups. Multiple USB ports and broad browser and OS compatibility simplify file export and remote viewing. The compact, lightweight housing fits typical installation locations and accepts up to 6 TB of storage for extended recording retention.

Suitable for

• Small office or retail security systems
• Home surveillance with up to four PoE cameras
• Remote monitoring via browser or mobile iOS devices

Key specifications

• Channels: 4 PoE camera inputs
• Video compression: H.264
• Simultaneous playback channels: 4
• Storage: supports up to 6 TB internal hard drive
• Video outputs: 1 HDMI, 1 VGA
• Audio output: 1 RCA
• Network ports: 9 x RJ-45 (Ethernet), 100 Mbps data rate
• USB: 2 x USB 2.0
• Power over Ethernet (PoE): yes
• Operating temperature: -10 to 45 °C
• Operating humidity: 10–90% relative humidity
• Dimensions (W×D×H): 255 × 232 × 495 mm
• Weight: 1.4 kg

How to use

Install a compatible internal hard drive up to 6 TB, place the NVR in a ventilated location within the specified temperature and humidity range, and connect PoE cameras to the RJ-45 ports to provide both power and data. Connect a monitor via HDMI or VGA for live view and playback, and attach USB storage devices to export footage if needed. Access the recorder from macOS, Windows or iOS devices or via supported browsers (Edge, Firefox, Chrome, Safari) for configuration, live monitoring and playback.

Recommendations

Use PoE-capable cameras to take full advantage of integrated PoE ports, regularly check recording status and available disk space, and dispose of the unit according to local electronic-waste regulations.
