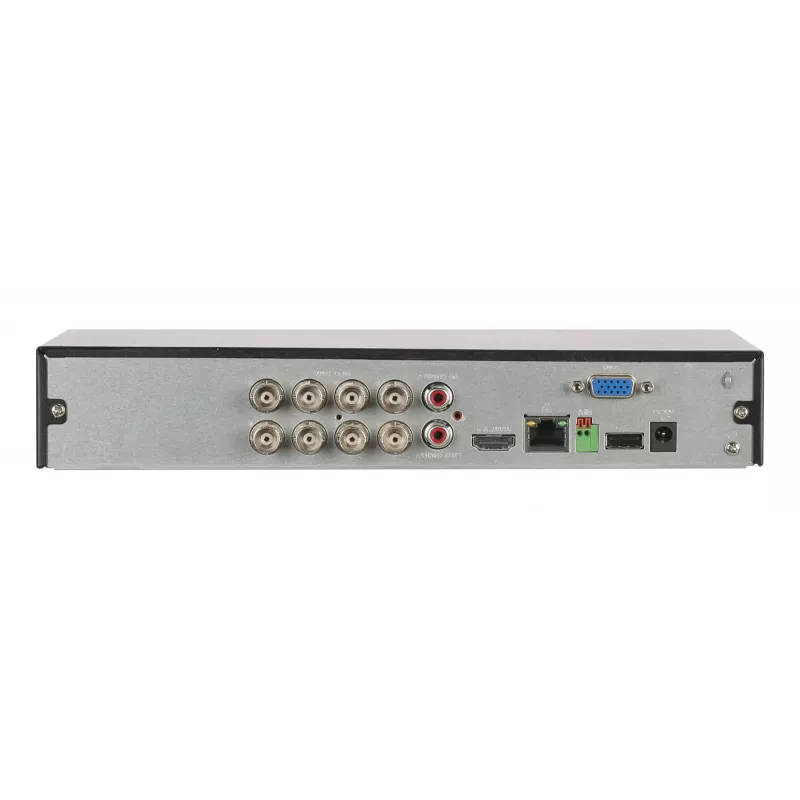

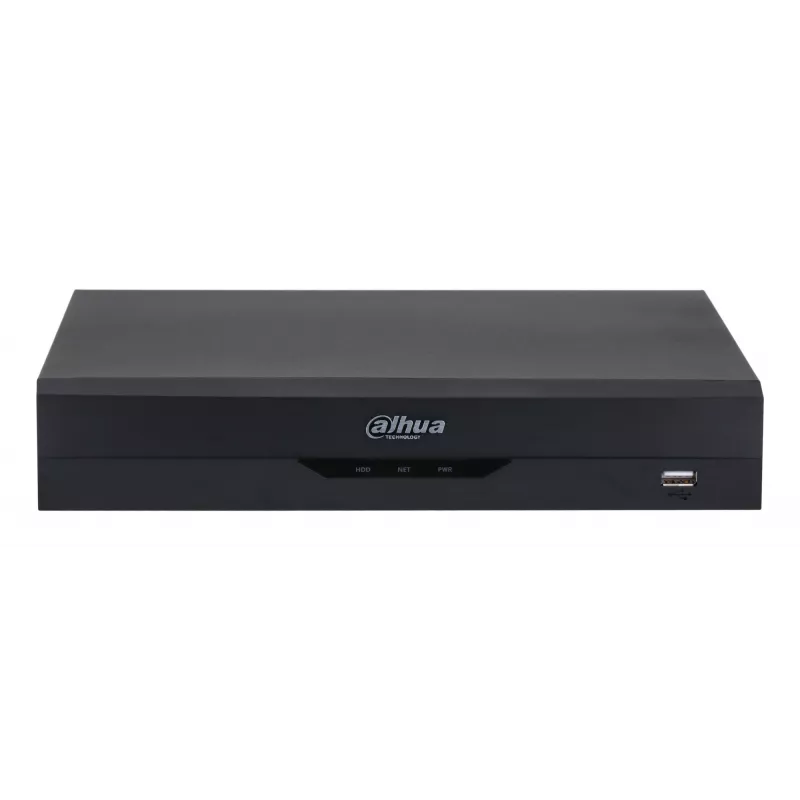

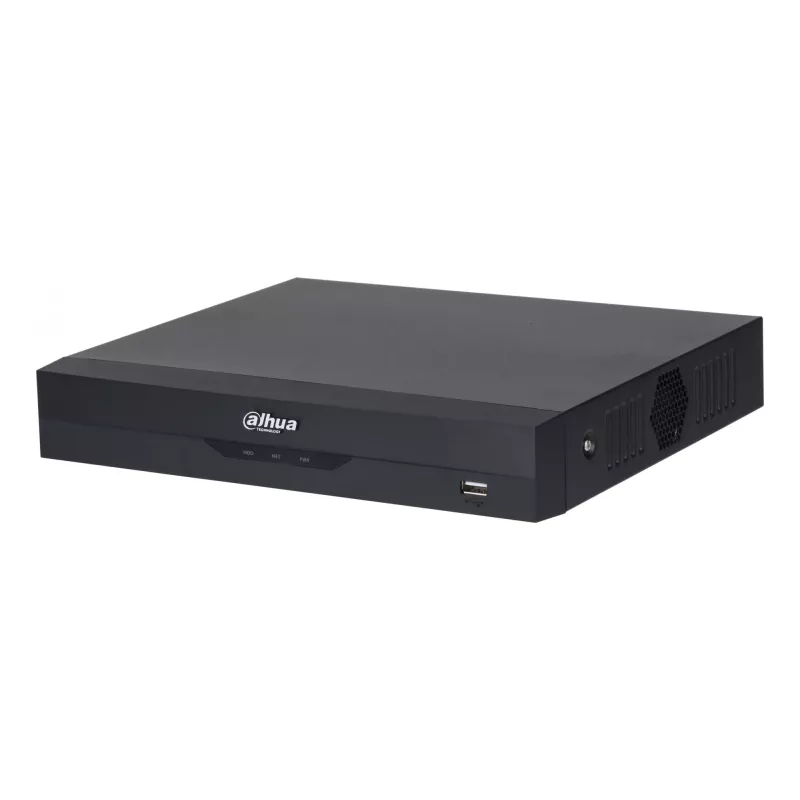

Dahua XVR5108HS-4KL-I3/T DVR HDCVI penta-brid de 8 canales

The Dahua XVR5108HS-4KL-I3/T is an 8-channel penta-brid HDCVI DVR from the WizSense series, featuring AI capabilities such as AcuPick, perimeter protection, face recognition, and SMD Plus. It supports HDCVI, AHD, TVI, CVBS, and IP video inputs, and can accommodate up to 16 IP camera inputs with each channel up to 8 MP.

Key features

• 8-channel two-way talk over coaxial cable
• 8-channel AcuPick for analog channels
• 8-channel perimeter protection for analog channels (tripwire and intrusion detection)
• 4-channel face recognition for analog channels
• 8-channel SMD Plus for analog channels or 16-channel SMD by camera
• 8-channel AI Coding
• Supports HDCVI, AHD, TVI, CVBS and IP video input
• Supports up to 16-channel IP camera input, each channel up to 8 MP
• Incoming bandwidth up to 128 Mbps
• Supports accessing Wi-Fi cameras
• Smart H.265+ and H.265 dual-stream video compression
• Dolynk cloud version: DMSS 2.3.0 and above, Dolynk Care 2.53.00 and above

Specifications

• Brand: Dahua
• MPN: XVR5108HS-4KL-I3/T
• Product colour: Black
• Video input channels: 8 channels
• Analog inputs: 8× BNC (HDCVI/AHD/TVI/CVBS)
• IP inputs: up to 16 channels (8 + 8 expansion)
• Video compression formats: H.264, H.264+, H.265, H.265+
• Audio compression: G.711a, G.711u, PCM
• Audio inputs: 1× RCA + 8× BNC (audio over coax)
• Audio outputs: 1× RCA
• Two-way audio: Yes (BNC + network)
• Ethernet LAN: Yes
• Ethernet interface type: Gigabit Ethernet
• Network protocols: HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
• HDD: 1× SATA, up to 16 TB
• RS-485: 1 port
• USB: 2 ports (USB 2.0 + USB 3.0)
• Video outputs: HDMI ×1, VGA ×1
• HDMI output up to 4K, VGA up to 1080p
• Operating system: Embedded Linux
• Web and local GUI interface
• Face database: up to 10 databases, 20,000 images
• Face recognition performance: 4 channels
• AcuPick: 8 channels
• Scene change: 1 channel
• EPTZ: 1 channel
• Frame rate: PAL 1–25 fps, NTSC 1–30 fps
• Video bitrate: 32 kbps – 6144 kbps
• Split screen: 1/4/8/9 (up to 16 with IP)
• Third-party camera support: Panasonic, Sony, Hanwha, Axis, ONVIF
• Mobile access: iOS, Android
• Compatibility: ONVIF Profile T/S/G, CGI, SDK
• General alarms: motion detection, alarm input/output, PIR
• Anomaly alarms: no disk, disk error, signal loss, IP conflict
• Smart alarms: face, perimeter, SMD Plus
• Privacy masking: 1 channel
• Power supply: 12 V DC / 2 A
• Power consumption: < 10 W (without HDD)

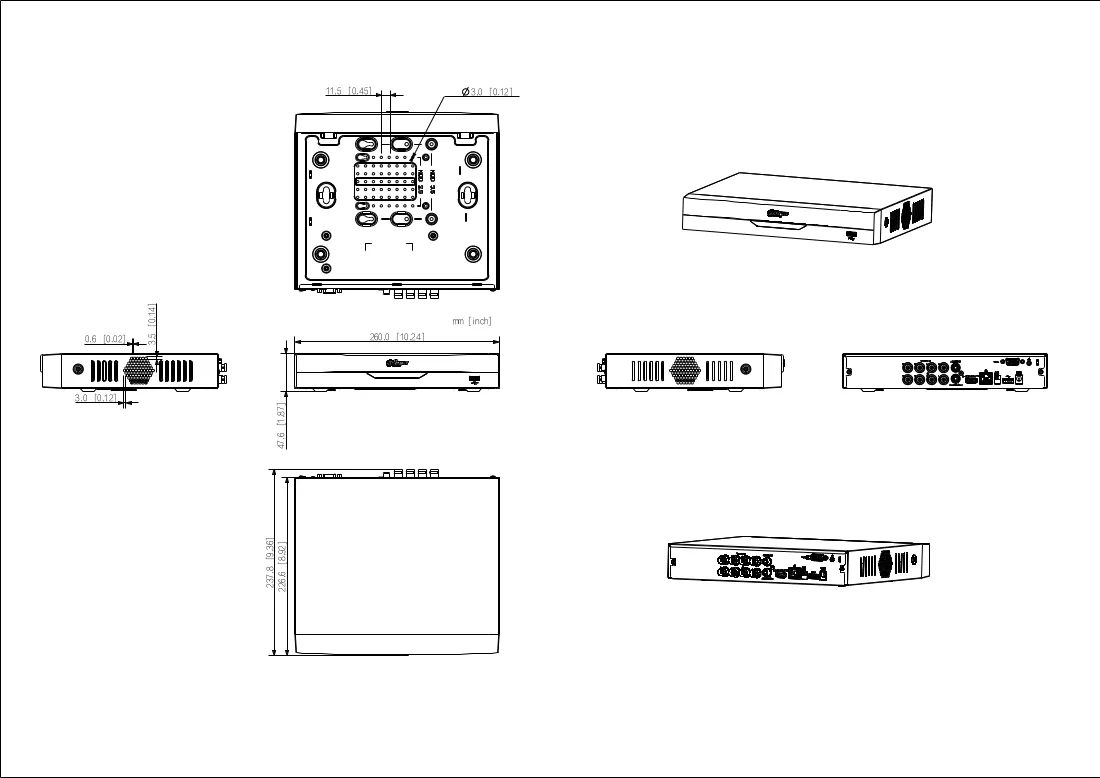

• Dimensions: 260 × 237.8 × 47.6 mm
• Weight: 1.23 kg
• Operating temperature: –10°C to +55°C
• Operating humidity: 10–90% RH
• Mounting: Desktop
• Certifications: CE (LVD, EMC)
• Recording modes: continuous, alarm, motion, smart
• Backup: USB, network
