Grabador IP TC-R3110 SPEC:I/B/K/V3.1

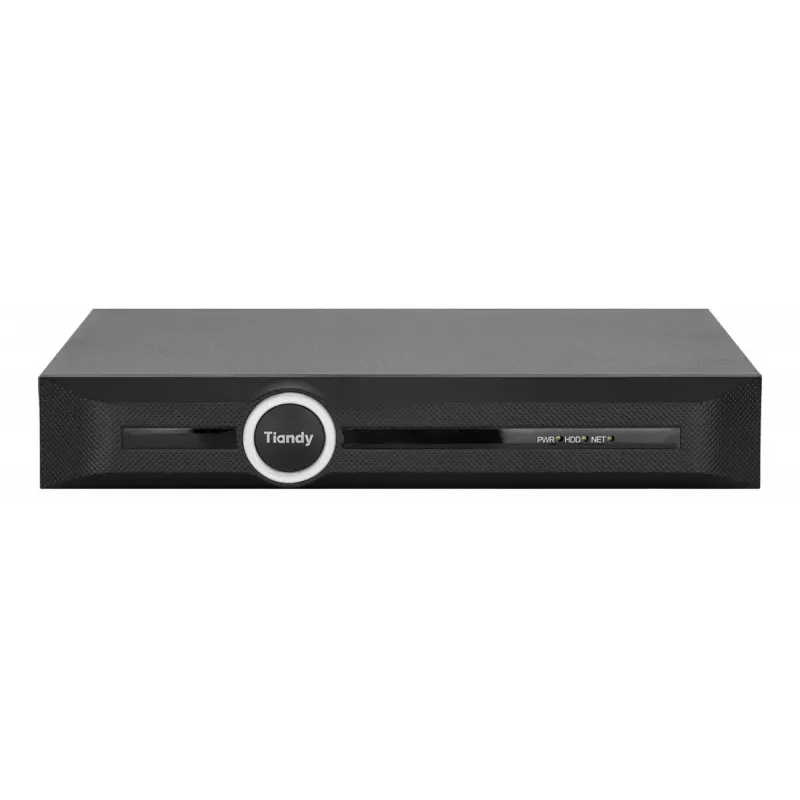

The TC-R3110 is a high-performance 8-channel IP recorder supporting up to 8MP (4K UHD) resolution, ideal for professional surveillance systems. It features H.265+ compression for efficient storage and bandwidth usage, and offers flexible recording modes including manual, schedule, motion detection, and alarm.

Advantages

Supports up to 10TB HDD for extended recording, simultaneous playback of 8 channels, and remote access via web browser, mobile app, or client software. The compact design includes 1 HDMI and 1 VGA output, 1 RCA audio input/output, and 2 USB 2.0 ports.

Suitable for

• Small to medium businesses
• Retail stores
• Office surveillance
• Home security systems

Key specifications

• Video Input Channels: 8 IP Channels
• Max Recording Resolution: 8MP (4K UHD)
• Video Compression: H.265+, H.265, H.264+, H.264
• Video Output: 1x HDMI, 1x VGA
• Audio Input/Output: 1x RCA each
• HDD Bays: 1x SATA, up to 10TB
• Network Interface: 1x RJ45 10/100 Mbps Ethernet
• USB Interface: 2x USB 2.0
• Power Supply: DC 12V
• Operating Temperature: -10°C to 55°C

Recommendations

For optimal performance, use with compatible IP cameras and a high-capacity HDD. Ensure proper ventilation and stable power supply.
