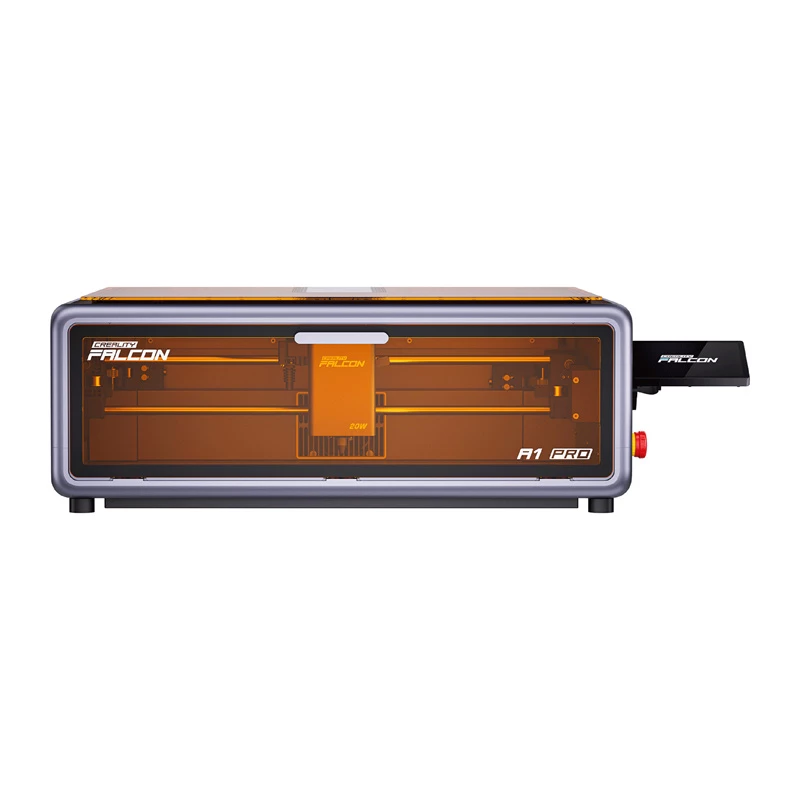

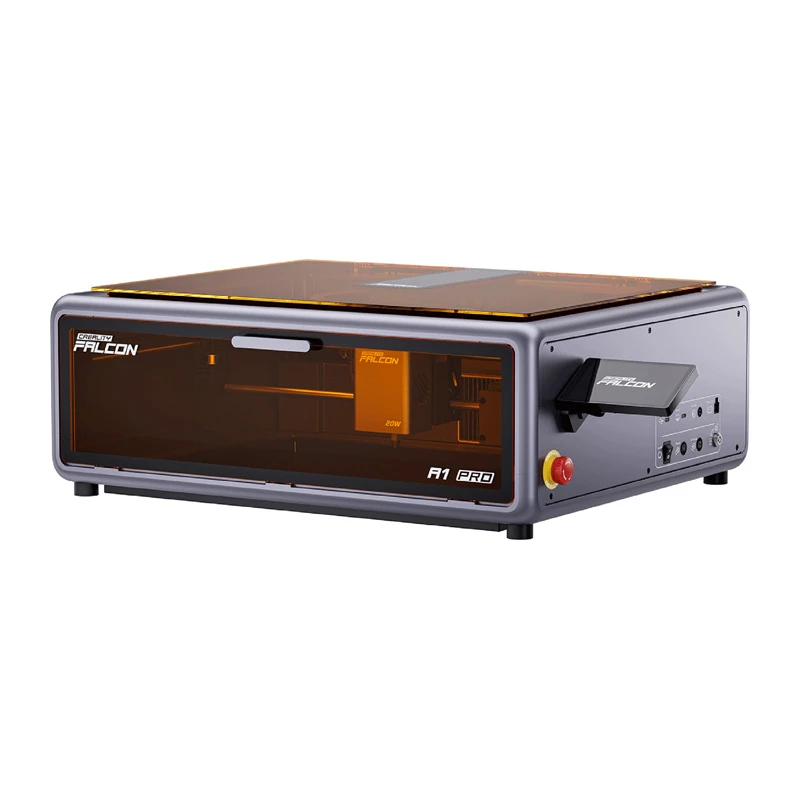

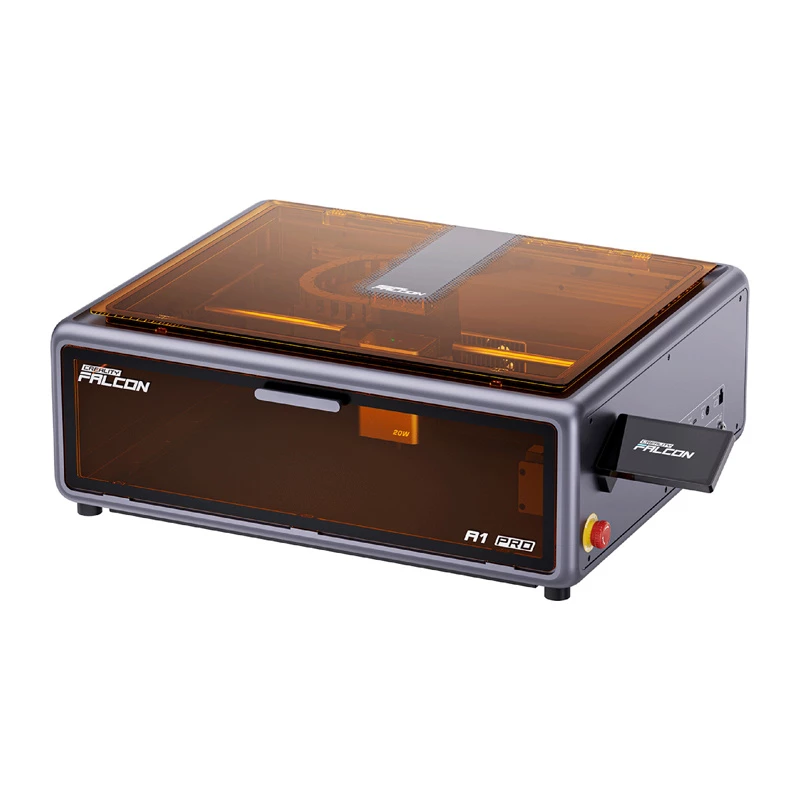

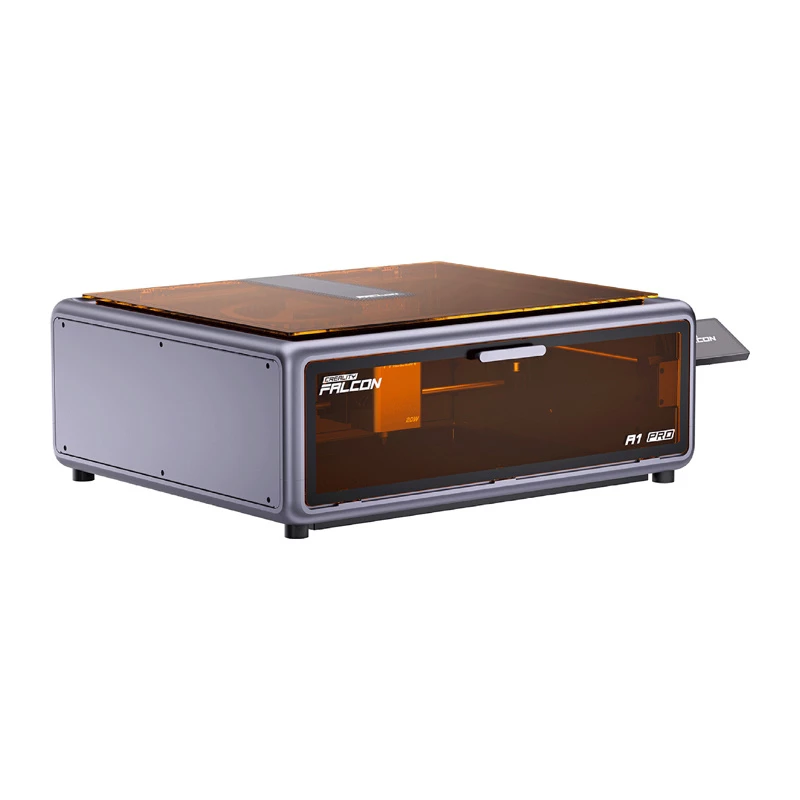

Creality Falcon A1 Pro 20W Laser Engraver
The Creality Falcon A1 Pro is an advanced laser engraver designed for users who expect the highest quality workmanship, material versatility, and comfort. The device combines two switchable laser modules, intelligent AI systems, a closed Class 1 design, and solutions that allow you to start working immediately after unboxing—no adjustments or time-consuming configuration required. Choose intelligent solutions and select the Falcon A1 Pro today.
Two laser modules
The 20W blue diode laser is designed for cutting and engraving materials such as wood, acrylic, stainless steel, glass, painted metal, stone, fabric, leather, paper, and felt. It can easily cut 10 mm linden plywood and 8 mm black acrylic. The 2W IR laser opens up completely new possibilities for working with metals and plastics, enabling precise marking and engraving where standard diode lasers are insufficient. With this combination, a single device can handle projects that previously required several different machines.
No tools, no downtime
The device supports laser module replacement without the need for tools. The integrated Z-axis with double cable clamp provides plug-and-play installation, saving time and eliminating the risk of errors. Changing the laser takes less time than brewing a cup of coffee, allowing you to switch smoothly between different production tasks. No adjustments, no calibration, and no additional preparation — just plug in and get started.
High-level engraving
The Falcon A1 Pro is designed to handle the most demanding projects. The ultra-fine 0.03 mm laser spot combined with 1064 nm IR technology allows for exceptional detail. The device is perfect for engraving photos, jewelry, business cards, or precise graphic details where every micrometer counts.
Artificial intelligence-supported systems
The integrated AI vision system combines an AI camera with a red measuring laser, providing automatic focusing in less than 3 seconds, measurement accuracy of < 0.3 mm, and a perfect first cut without trials and corrections. In addition, the HD camera enables precise positioning, a full view of the work area, and the elimination of blind spots during operation.
Fast, versatile, and safe operation
The device reaches a working speed of up to 600 mm/s, which significantly increases productivity in serial production. The 358 × 268 mm working area allows you to carry out larger projects or process multiple elements simultaneously in batch mode. With the mobile app, you can monitor work progress in real time, no matter where you are. The system allows for convenient multitasking—the device informs you about the status of the task, and you have full control without the need for constant supervision.
Protection without compromise

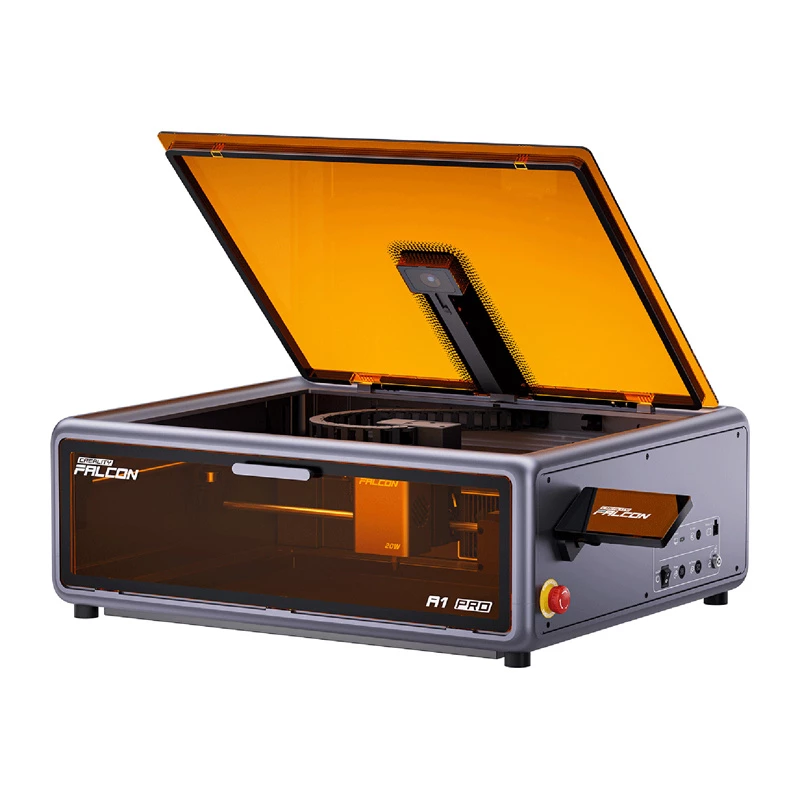

The Falcon A1 Pro is a fully enclosed Class 1 design, ready for safe operation in a home environment. It features a cover to protect your eyes from harmful laser light, a smoke extraction system with a filter, two cooling fans in the head, automatic shutdown when the cover is opened, and an emergency stop button. In addition, AI-based intelligent flame detection detects fire in real time, immediately stops the device, and sends a notification to the app. This solution is designed for maximum user and environmental safety.
Thoughtful design
Despite its large working area, the Falcon A1 Pro stands out for its space-saving design, taking up significantly less space than devices with similar capabilities. Its dimensions of 567 × 468 × 211 mm allow it to fit easily into almost any workspace. The large double window provides excellent visibility of the process without the need for protective goggles, and the filtration system ensures comfortable viewing. The integrated smart touch screen provides quick access to file history, a clear view of the process, and a clear workflow. You can watch the laser work directly on the screen and launch tasks from the app with a single touch.
Included
- engraver
- exhaust pipe
- hose clamp
- air support equipment
- silicone tube
- power supply
- linden wood (300 x 300 x 3 mm)
- calibration test card
- rotary set connection cable
- multi-level fixed focus block
- Type A to Type C cable
- antistatic brush
- L-shaped cross wrench
- M1.5/M2/M2.5/M3 Allen key
- tweezers
- dust-free cloth
- lens cover
- A-type to C-type adapter
- safety key x2
- user manual
General
| Manufacturer | Creality |
|---|---|
| Model | Falcon A1 Pro |
| Engraving area | 268 x 358 mm |
| Optical power | 20 W |
| Laser source | Semiconductor laser |
| Product dimensions | 567 x 468 x 211 mm (product dimensions after screen installation: 685 x 468 x 211 mm) |
| Laser wavelength | 455 1064±5 nm |
| Weight | 16.8 kg |
| Safety class | Class 1 (FDA) |
| Input voltage | 100–240 V~ 50–60 Hz |
| Output voltage | DC 24.0 V 7.5 A |
| Operating system | Windows/MacOS |
| Operating temperature | 5°C-35°C |
| Supported file formats | Jpeg, jpg, png, bmp, svg, dxf, etc. |
| Supported materials | Cardboard, wood, bamboo, rubber, leather, fabric, acrylic, plastic, etc. |
| Laser engraving software | Falcon Design Space, LightBurn, LaserGRBL |
| Safety certifications | FDA, CE, ROHS, FCC, PSE |
2 W infrared laser
| Laser source | Semiconductor laser |
|---|---|
| Laser wavelength | 1064±1 nm |
| Optical power | 2 W |
| Supported materials | Gold, silver, brass, iron, aluminum, stainless steel, plastics, dark opaque materials, titanium alloy, galvanized metals, slate, ceramic pads, etc. |
How to use
Place the Falcon A1 Pro on a stable surface within the recommended operating temperature range and connect the power supply and exhaust as instructed in the user manual. Choose the appropriate laser module for the material — the 20W blue diode for wood, acrylic, leather and many coated materials, or the 2W IR module for direct marking of metals and dark opaque plastics. Load your design in a supported file format via the desktop software or mobile app, position the workpiece using the camera view, and start the job. The integrated AI autofocus and positioning system minimize manual calibration; monitor the process through the app or the built-in touchscreen and be ready to use the emergency stop if necessary.
Recommendations
Use appropriate ventilation and the included filtration system when cutting or engraving materials that produce smoke. For cutting thicker materials, perform test cuts to determine optimal power and speed settings. When working with metals, use the IR laser module and ensure material surface cleanliness for best marking results. Always follow the safety instructions in the user manual and keep the cover closed during operation to maintain Class 1 safety.
