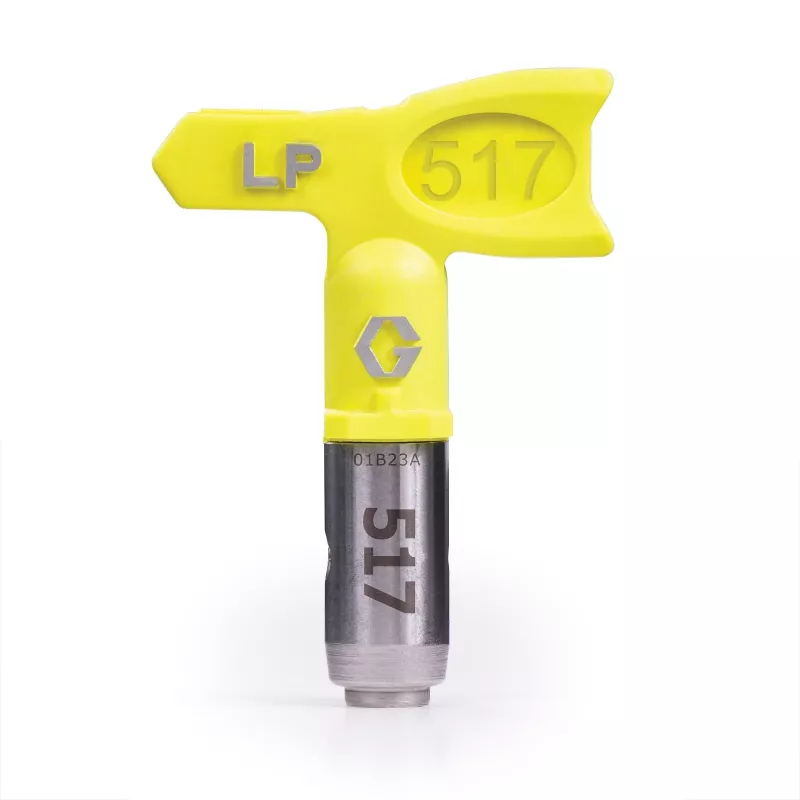

Graco LP517 RAC X Boquilla de Acabado Reversible, Amarillo, Orificio 0.017 pulgadas, Ancho de Abanico 10 pulgadas

The Graco LP517 RAC X Reversible Finishing Nozzle is a high-performance spray tip designed for fine finishing applications. Engineered for low-pressure operation, this yellow nozzle delivers a consistent, high-quality finish while reducing overspray by up to 50% compared to standard tips. Its reversible design allows for easy clog clearing without removing the tip, maximizing productivity on the job.

Advantages

This nozzle extends pump life by operating at lower pressures (1000-2000 PSI) and provides a fine finish ideal for cabinets, trim, doors, and walls. The tungsten carbide orifice and stainless steel body ensure durability and long service life. The 517 tip size (0.017" orifice) produces a 10-inch fan width at a 50-degree spray angle, perfect for precision work.

Suitable for

• Fine finishing of cabinets, trim, doors, and walls
• Spraying stains, lacquers, enamels, urethanes, primers, interior latex, and acrylics
• Use with Graco RAC X HandTite Guard (e.g., 246215)
• Airless paint sprayers requiring low-pressure tips

Key specifications

• Tip Type: Low Pressure (LP)
• Series: Graco RAC X
• Tip Size: 517
• Orifice Size: 0.017 inches (0.43 mm)
• Fan Width: 10 inches (25.4 cm)
• Spray Angle: 50 degrees
• Reversibility: Yes
• Color: Yellow
• Maximum Pressure Rating: 4000 PSI (276 bar)
• Recommended Operating Pressure: 1000-2000 PSI
• Construction Material: Tungsten Carbide orifice, Stainless Steel body
• Finish Quality: Fine Finish

Recommendations

For best results, pair this nozzle with a Graco RAC X HandTite Guard and ensure your sprayer is set to low-pressure mode. Always clean the tip after use to maintain performance.
