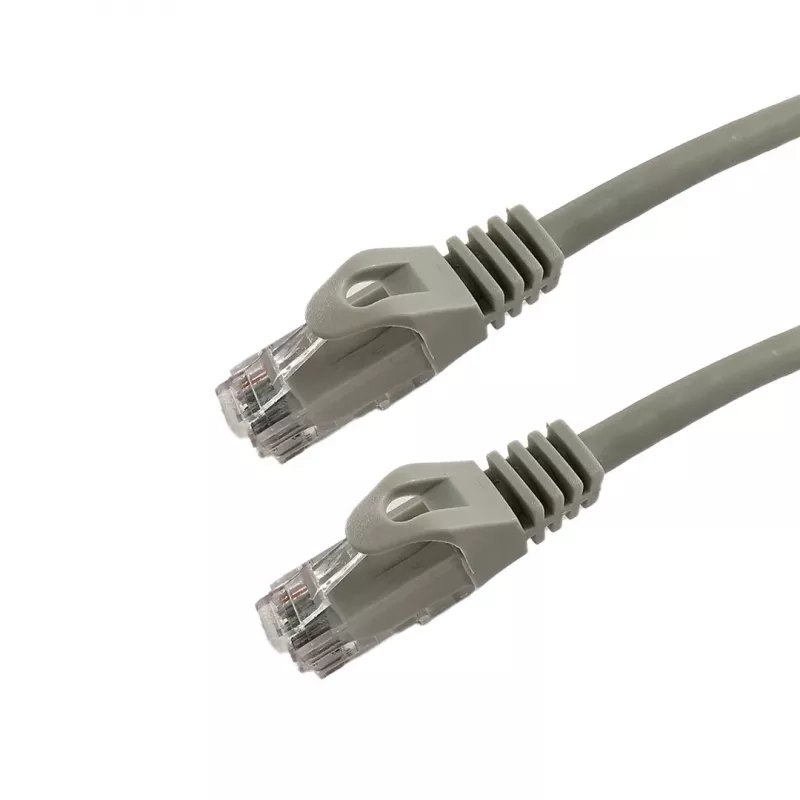

GRAFENTHAL Cable de conexión CAT6 S/FTP CU 0,5m gris

The GRAFENTHAL Patch Cable CAT6 S/FTP CU is a high-performance network cable designed for reliable and fast data transmission. With a length of 0.5 meters, it is ideal for short-distance connections in data centers, server rooms, and home networks. The cable features S/FTP shielding (Screened/Foiled Twisted Pair) to minimize electromagnetic interference, ensuring stable signal integrity. Made from pure copper (CU) conductors, it supports data transfer rates up to 10 Gigabit Ethernet over short distances and is fully backward compatible with 1 Gigabit Ethernet. The gold-plated RJ45 connectors provide corrosion resistance and optimal conductivity. This patch cable is compliant with RoHS and CE standards, making it an environmentally friendly choice.

Advantages

High-quality pure copper conductors ensure excellent signal transmission and durability. The S/FTP shielding protects against external interference, making it suitable for high-density environments. The snagless molded boot design prevents connector damage during installation and removal. The cable is also PoE compatible, allowing power and data transmission over a single cable.

Suitable for

• Connecting computers, switches, routers, and other network devices
• Data centers and server rooms requiring reliable high-speed connections
• Home and office networks for stable internet access
• Power over Ethernet (PoE) applications such as IP cameras and wireless access points

Key specifications

• Cable Type: Patch Cable
• Category: CAT6
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Conductor Material: Pure Copper (CU)
• Length: 0.5 m
• Connector Type: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated
• Jacket Material: PVC
• AWG: 26 AWG
• Bandwidth: 250 MHz
• Data Transfer Rate: Up to 10 Gbps (10GBASE-T) over short distances, 1 Gbps (1000BASE-T) compliant
• Wiring Standard: TIA/EIA 568B
• Cable Construction: Stranded
• Color: Grey
• Outer Diameter: Approx. 6.0 mm
• Impedance: 100 Ohm
• Compliance: RoHS, CE
• Application: Network, Ethernet, PoE
• Boot Type: Molded Snagless
• Pair Shielding: Aluminium Foil (PIMF)

Recommendations

For optimal performance, use this cable with CAT6 compatible devices. Ensure proper cable management to avoid kinking or sharp bends. This cable is ideal for short patch connections where space is limited.
