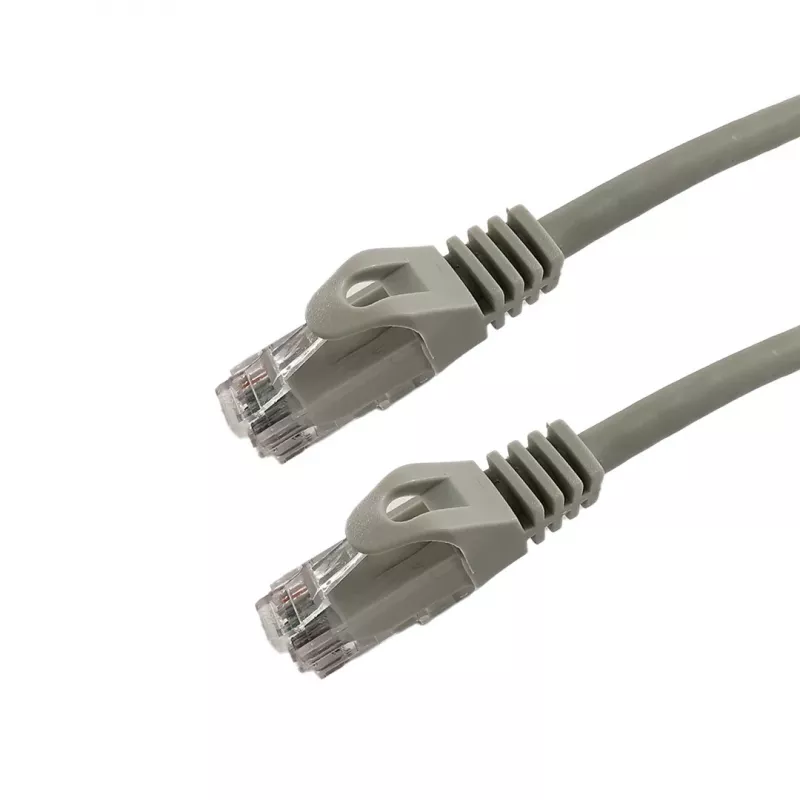

GRAFENTHAL Cable de conexión CAT6 S/FTP CU 0,5m gris

The GRAFENTHAL Patch Cable CAT6 S/FTP CU is a high-performance Ethernet cable designed for reliable, high-speed network connections. With a length of 0.5 meters and a sleek grey jacket, this cable is ideal for short-distance patching in data centers, server rooms, and office networks. It supports 10 Gigabit Ethernet (10GBASE-T) and features S/FTP shielding (Pairs in Metal Foil) to minimize electromagnetic interference, ensuring stable data transmission.

Advantages

This cable offers exceptional signal integrity and protection against crosstalk and external noise, thanks to its S/FTP construction and gold-plated RJ45 connectors. The LSZH (Low Smoke Zero Halogen) jacket enhances safety by reducing toxic emissions in case of fire. It is also PoE compatible, making it suitable for powering devices like IP cameras and wireless access points.

Suitable for

• Connecting computers, switches, routers, and patch panels in local area networks (LAN)
• Data centers and server rooms requiring high-density cabling
• Home and office networks demanding reliable Gigabit and 10 Gigabit performance
• Power over Ethernet (PoE) applications such as VoIP phones and security cameras

Key specifications

• Cable Type: Patch Cable
• Category: CAT6
• Shielding: S/FTP (PIMF)
• Conductor Material: Copper (CU)
• Jacket Material: LSZH
• Length: 0.5 m
• Colour: Grey
• Connectors: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated
• Wiring Standard: TIA/EIA 568B
• Conductor Gauge: 27 AWG
• Max Bandwidth: 250 MHz
• Max Data Transfer Rate: 10 Gbps
• Cable Construction: Stranded
• Halogen Free: Yes
• Flame Retardant: Yes
• PoE Support: Yes

Recommendations

For optimal performance, ensure that all components in your network (switches, NICs) support CAT6 standards. This cable is best used for short patch connections; for longer runs, consider CAT6a or higher. Always handle cables with care to avoid damaging the connectors or shielding.
