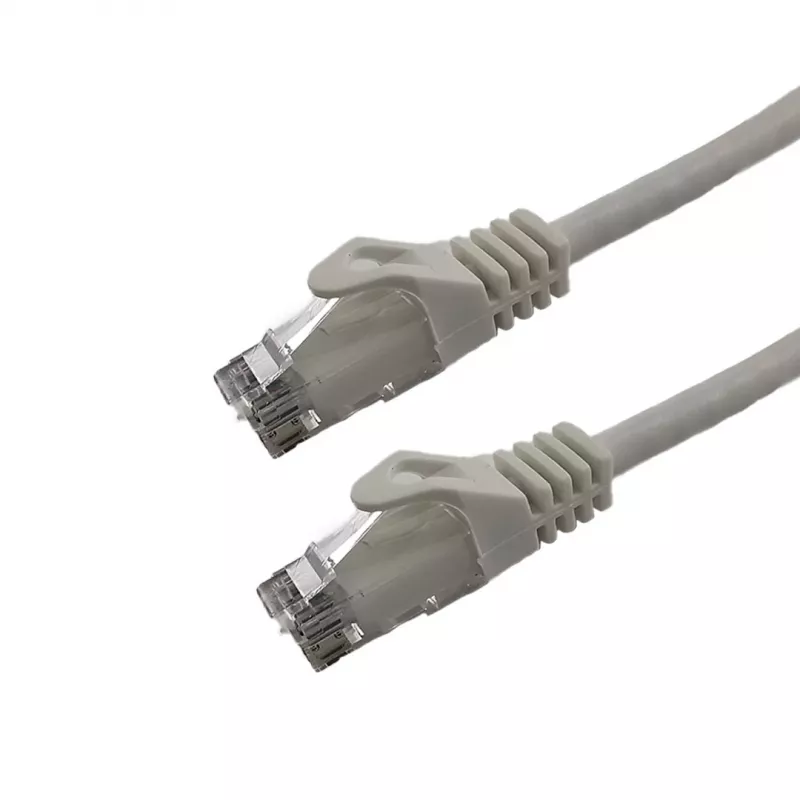

Grafenthal Cable de conexión CAT6 S/FTP CU 0,5m gris LSZH Snagless RJ45

The Grafenthal Patch Cable CAT6 S/FTP CU is a high-performance network cable designed for reliable 10 Gigabit Ethernet connections. With S/FTP shielding (pairs in metal foil plus overall braid) and 100% copper conductors, it ensures excellent protection against electromagnetic interference and superior signal integrity. The cable features gold-plated RJ45 connectors, a snagless boot for strain relief, and a LSZH (Low Smoke Zero Halogen) jacket for safety in sensitive environments.

Advantages

This patch cable offers maximum data transfer rates up to 10 Gbps and a bandwidth of 250 MHz, making it ideal for demanding network applications. The S/FTP shielding minimizes crosstalk and external noise, while the stranded construction provides flexibility for easy routing. The snagless boot protects the connector clips during installation and removal, and the LSZH jacket reduces toxic smoke in case of fire.

Suitable for

• Data centers and server rooms requiring high-speed, reliable connections
• Enterprise networks where signal integrity and interference protection are critical
• PoE applications (PoE, PoE+, 4PPoE) for powering devices like IP cameras and access points
• Any environment where safety and low smoke emission are priorities

Key specifications

• Cable Type: Patch Cable
• Category: CAT6
• Shielding: S/FTP (PiMF)
• Conductor Material: 100% Copper (CU)
• Length: 0.5 m
• Connectors: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated contacts
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• AWG: 27 AWG
• Wiring Standard: TIA/EIA 568B
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: Up to 250 MHz
• PoE Support: Yes (PoE, PoE+, 4PPoE)
• Color: Grey
• Halogen Free: Yes
• Flame Retardant: Yes
• Cable Construction: Stranded
• Boot Type: Snagless

Recommendations

For optimal performance, use this cable with CAT6-compatible network equipment. Ensure proper cable management to avoid kinking or sharp bends. This cable is ideal for short-distance patching in racks and panels.
