Grafenthal Cable de fibra óptica OM3 LC/UPC-LC/UPC LSZH 15,00m azul aguamarina

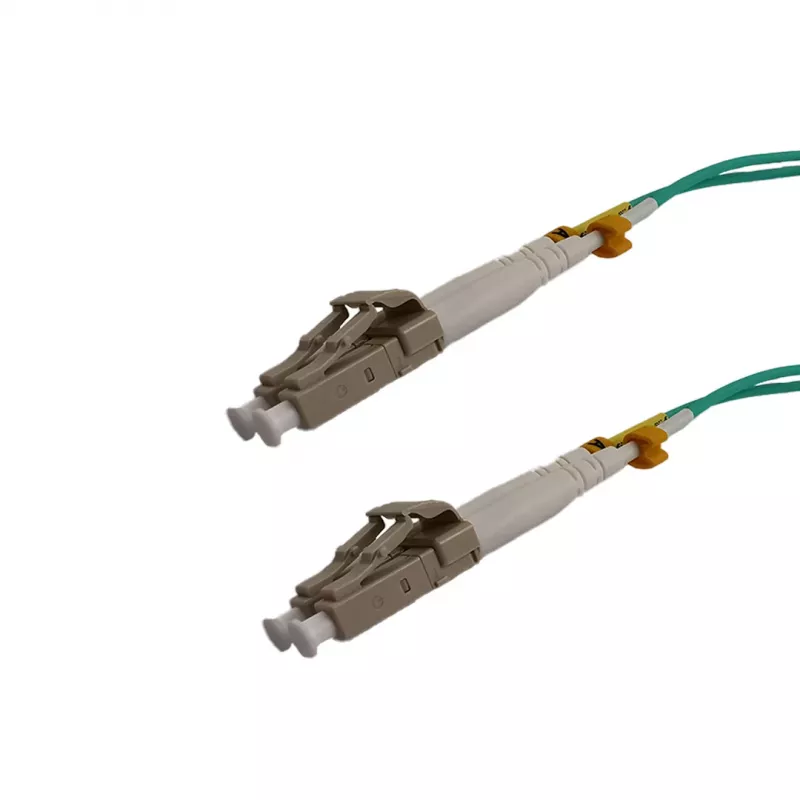

The Grafenthal Optical Fibre Cable OM3 is a high-performance duplex multimode patch cable designed for reliable 10 Gigabit Ethernet connections in data centers, LANs, and SANs. With LC/UPC connectors on both ends, a 15-meter length, and an aqua blue LSZH jacket, this cable ensures low insertion loss and high return loss for optimal signal integrity.

Advantages

This cable offers superior bandwidth and speed for demanding network environments. The OM3 fibre class supports 10 Gbps data rates up to 300 meters at 850nm, making it ideal for high-speed data transmission. The LSZH jacket provides safety in enclosed spaces by emitting low smoke and zero halogen in case of fire.

Suitable for

• Data centers requiring high-density cabling
• Local Area Networks (LANs) with 10 Gigabit Ethernet
• Storage Area Networks (SANs)
• Telecommunications rooms and server rooms

Key specifications

• Fibre Mode: Multimode OM3
• Connector Type: LC/UPC to LC/UPC
• Cable Configuration: Duplex
• Core/Cladding Diameter: 50/125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Length: 15 meters
• Cable Colour: Aqua Blue
• Insertion Loss (Typical): < 0.3 dB
• Return Loss (Typical): > 50 dB
• Operating Temperature: -20°C to +70°C

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard LC/UPC interfaces and is ideal for high-speed network upgrades.
