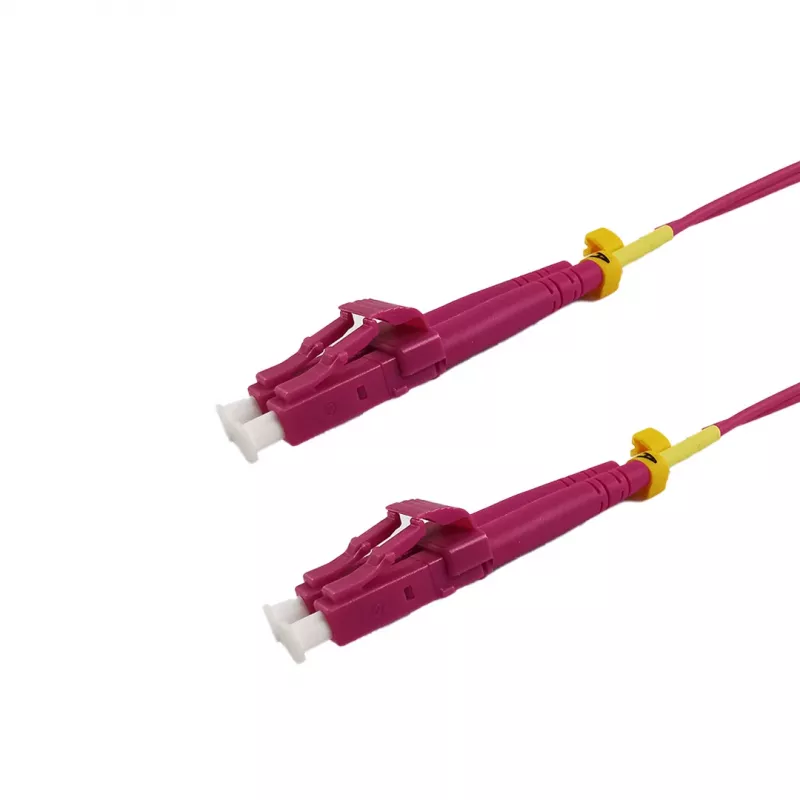

Grafenthal Cable de fibra óptica OM4 LC/UPC-LC/UPC LSZH 20,00m violeta

The Grafenthal Optical Fibre Cable OM4 is a high-performance multimode fibre optic patch cable designed for reliable data transmission in demanding network environments. With LC/UPC connectors on both ends, a length of 20.00 metres, and a violet LSZH jacket, this cable ensures low signal loss and high bandwidth for 10, 40, and 100 Gigabit Ethernet applications.

Advantages

This OM4 fibre cable offers superior bandwidth and attenuation characteristics, making it ideal for high-speed data centres and enterprise networks. The LSZH jacket provides enhanced safety by reducing toxic smoke and fumes in case of fire, while the duplex design supports bidirectional communication.

Suitable for

• Data centre backbone cabling
• High-speed server and storage area network connections
• Telecommunications and enterprise network infrastructure
• Applications requiring 10, 40, or 100 Gigabit Ethernet

Key specifications

• Fibre Mode: Multimode OM4
• Connector Type: LC/UPC to LC/UPC
• Connector Polish: UPC (Ultra Physical Contact)
• Cable Length: 20.00 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Violet
• Fibre Count: 2 (Duplex)
• Core/Cladding Diameter: 50/125 µm
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 30 dB
• Attenuation at 850nm: 2.3 dB/km
• Attenuation at 1300nm: 0.6 dB/km
• Bandwidth at 850nm (EMB): 4700 MHz·km
• Bandwidth at 1300nm: 500 MHz·km
• Minimum Bend Radius: 7.5 mm (non-tensile)
• Operating Temperature: -20°C to 70°C
• Compliance: TIA/EIA-568-C.3, ISO/IEC 11801, EN 50173

Recommendations

For optimal performance, ensure that connectors are clean before installation. This cable is compatible with standard LC fibre optic transceivers and patch panels. Store in a clean, dry environment.
