Grafenthal Cable de fibra óptica OM4 LC/UPC-LC/UPC LSZH 3,00m violeta

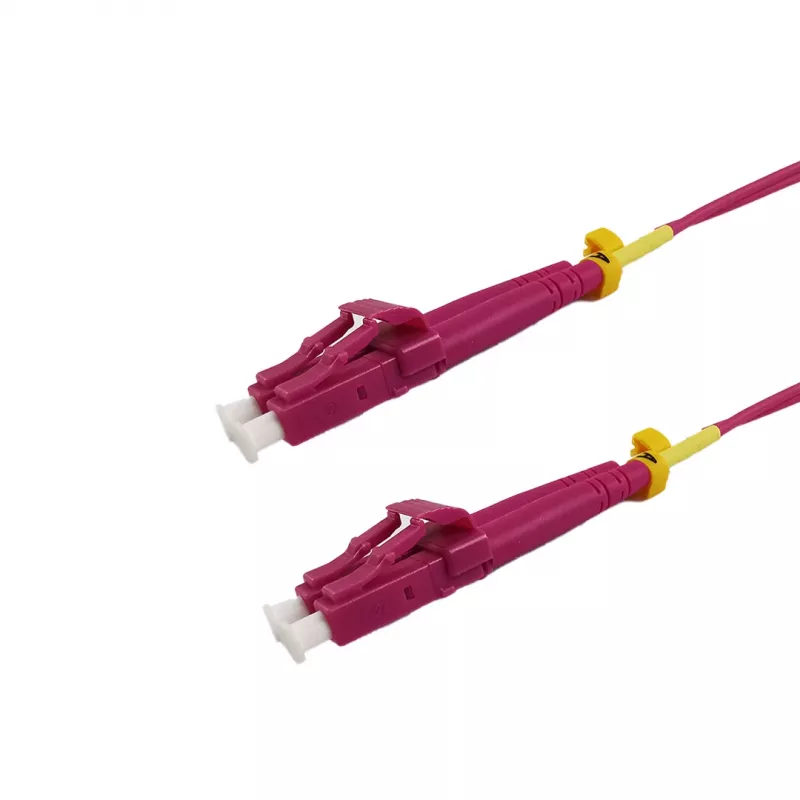

The Grafenthal Optical Fibre Cable OM4 is a high-performance multimode fibre optic patch cable designed for high-speed data transmission in demanding network environments. With LC/UPC connectors on both ends, a length of 3.00 metres, and a violet LSZH jacket, this cable ensures reliable connectivity and safety in data centres, SANs, and LANs.

Advantages

This OM4 fibre cable supports data rates up to 100 Gbps, making it ideal for future-proofing your network infrastructure. The LSZH jacket reduces toxic smoke in case of fire, enhancing safety in confined spaces. Low insertion loss and high return loss guarantee excellent signal integrity.

Suitable for

• High-speed data networks
• Data centres and server rooms
• Storage Area Networks (SAN)
• Local Area Networks (LAN)

Key specifications

• Fibre Mode: Multimode OM4
• Connectors: 2x LC/UPC duplex
• Length: 3.00 m
• Jacket: LSZH, Violet
• Core/Cladding: 50/125 µm
• Bandwidth: 4700 MHz·km @850nm, 500 MHz·km @1300nm
• Insertion Loss: <0.3 dB typical
• Return Loss: >50 dB typical
• Operating Temperature: -20°C to +70°C
• Standards: IEC 60793, TIA/EIA-568-C.3, RoHS, CE

Recommendations

For optimal performance, use with OM4-compatible transceivers and ensure clean, dust-free connectors. This cable is ideal for high-bandwidth applications requiring reliable, low-loss connections.
