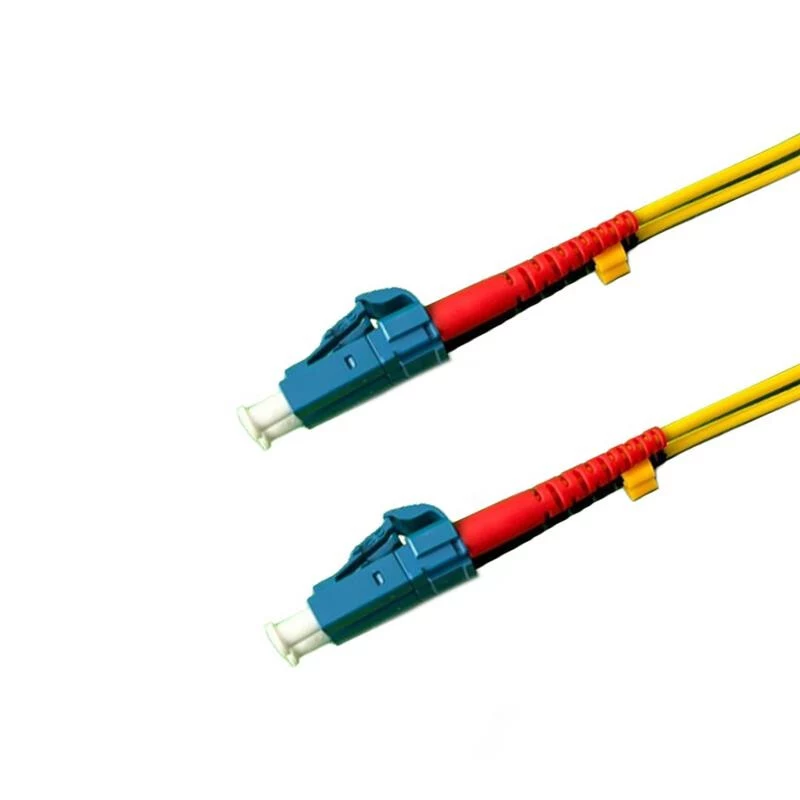

Grafenthal Cable de fibra óptica OS2 LC/UPC-LC/UPC LSZH 3,00m amarillo

The Grafenthal Optical Fibre Cable OS2 is a high-performance single-mode duplex patch cable designed for reliable data transmission in demanding network environments. With LC/UPC connectors on both ends and a length of 3.00 metres, this cable ensures low insertion loss and high return loss, making it ideal for high-speed Ethernet, Fibre Channel, and data centre applications. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, while the yellow colour facilitates easy identification.

Advantages

This fibre optic cable offers exceptional signal integrity with typical insertion loss ≤0.2 dB and return loss ≥50 dB (UPC). The 9/125 µm core/cladding diameter ensures compatibility with OS2 single-mode networks. Its LSZH jacket reduces toxic smoke emissions in case of fire, meeting stringent safety standards. The duplex design supports bidirectional communication, and the robust construction with a 3.0 mm cable diameter and minimum bend radius of 10 mm ensures durability and easy installation.

Suitable for

• Data centres and server rooms
• Local Area Networks (LAN) and Storage Area Networks (SAN)
• Fibre to the x (FTTx) deployments
• High-speed Ethernet applications (1G/10G/40G/100G/400G)
• Fibre Channel networks

Key specifications

• Product Type: Fibre Optic Patch Cable
• Fibre Mode: Single-Mode
• Fibre Standard: OS2 (ITU-T G.657.A1/A2 & G.652.D)
• Connector Type A: LC/UPC
• Connector Type B: LC/UPC
• Number of Fibres: 2 (Duplex)
• Cable Length: 3.00 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Yellow
• Core/Cladding Diameter: 9/125 µm
• Insertion Loss (Typical): ≤ 0.2 dB
• Return Loss (Typical): ≥ 50 dB (UPC)
• Minimum Bend Radius: 10 mm
• Cable Diameter: 3.0 mm
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Flammability Rating: IEC 60332-1
• Compliance: RoHS, CE, TIA/EIA-568-C.3

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is suitable for both indoor and plenum applications where low smoke and halogen-free characteristics are required. Pair with compatible SFP transceivers for best results.
