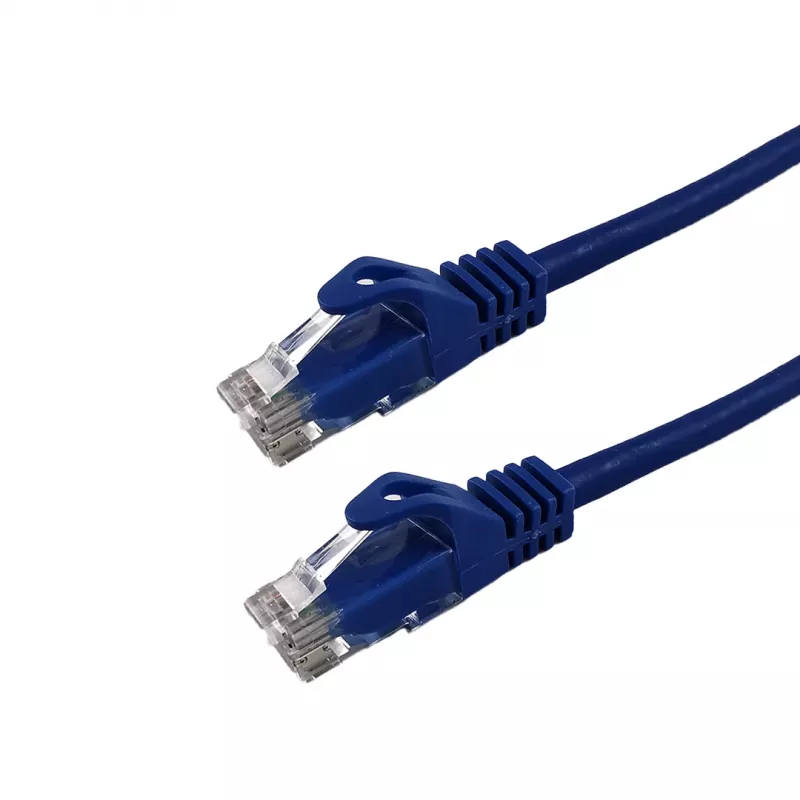

Grafenthal Cable de red CAT6 F/UTP CU LSZH 7,50m azul

The Grafenthal Patch Cable CAT6 F/UTP CU LSZH 7.50m Blue is a high-performance Ethernet cable designed for reliable network connections in data centers, offices, and home networks. Manufactured with 100% copper conductors and F/UTP shielding, it ensures minimal crosstalk and interference, supporting Gigabit Ethernet speeds up to 1 Gbps with a bandwidth of 250 MHz. The LSZH jacket provides safety in enclosed spaces by emitting low smoke and zero halogen in case of fire.

Advantages

This patch cable offers excellent signal integrity and durability. The gold-plated RJ45 connectors (50µm) resist corrosion and ensure optimal conductivity. The stranded copper construction provides flexibility for easy routing, while the 26 AWG gauge maintains performance over the 7.5-meter length. Compliance with RoHS and CE standards guarantees environmental and safety compliance.

Suitable for

• Ethernet networks (10/100/1000BASE-T)
• LAN connections in offices and data centers
• Connecting computers, switches, routers, and patch panels
• Applications requiring low smoke and zero halogen materials

Key specifications

• Cable Type: Patch Cable
• Category: CAT6
• Shielding: F/UTP
• Conductor Material: 100% Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 7.5 meters
• Color: Blue
• Connectors: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated (50µm)
• Wiring Standard: TIA/EIA-568B
• Data Transfer Rate: Up to 1 Gbps
• Bandwidth: Up to 250 MHz
• Conductor Gauge: 26 AWG (Stranded)
• Outer Diameter: Approx. 6.0 mm
• Operating Temperature: -20°C to 60°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, use this cable with CAT6-compatible network devices. Ensure proper cable management to avoid kinking or sharp bends. Ideal for structured cabling systems requiring reliable and safe cabling solutions.
