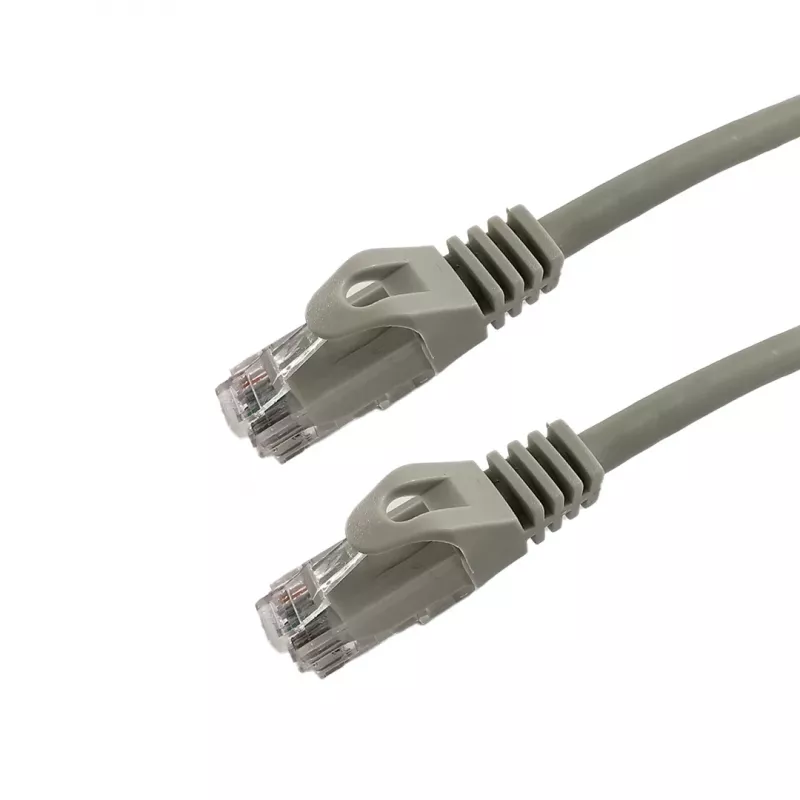

Grafenthal Cable de red Cat6 U/UTP CU LSZH 0,50 m gris

The Grafenthal Patch Cable Cat6 U/UTP CU LSZH 0.50m Grey is a high-performance Ethernet patch cable designed for reliable network connectivity in local area networks (LAN). Manufactured with pure copper conductors and a low smoke zero halogen (LSZH) jacket, this cable ensures excellent signal transmission and safety in case of fire. With a length of 0.5 meters, it is ideal for short-distance connections between network devices such as computers, switches, routers, and patch panels.

Advantages

This Cat6 patch cable offers superior performance with bandwidth up to 250 MHz and supports data transfer rates up to 1 Gbps, making it suitable for Gigabit Ethernet applications. The U/UTP (unshielded twisted pair) design reduces crosstalk and electromagnetic interference, ensuring stable and fast data transmission. The LSZH jacket minimizes toxic smoke and fumes in case of fire, making it safe for use in enclosed spaces like offices, data centers, and schools. Gold-plated connectors provide corrosion resistance and reliable contact, while the 26 AWG stranded conductors offer flexibility and durability for frequent handling.

Suitable for

• Connecting computers to switches or routers in a LAN
• Patch panel to switch connections in server rooms
• Short-distance network cabling in offices, homes, and data centers
• Power over Ethernet (PoE) devices such as IP cameras and VoIP phones

Key specifications

• Cable Type: Ethernet Patch Cable
• Cable Category: Cat6
• Shielding Type: U/UTP (Unshielded/Unshielded Twisted Pair)
• Conductor Material: Pure Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 0.5 meters (50 cm)
• Color: Grey
• Connector Type: RJ45 Male to RJ45 Male
• Wiring Standard: TIA/EIA-568B
• Bandwidth: Up to 250 MHz
• Data Transfer Rate: Up to 1 Gbps (1000BASE-T)
• Conductor Gauge: 26 AWG Stranded
• Number of Pairs: 4 Twisted Pairs
• Connector Plating: Gold-plated contacts
• PoE Support: Yes
• Flame Retardant: Yes (LSZH compliant)
• Compliance: RoHS, CE
• Compatibility: Backward compatible with Cat5e/Cat5

Recommendations

For optimal performance, use this cable with Cat6 compatible network devices. Ensure proper cable management to avoid kinks and sharp bends. This cable is ideal for short patch connections where space is limited and safety is a priority.
