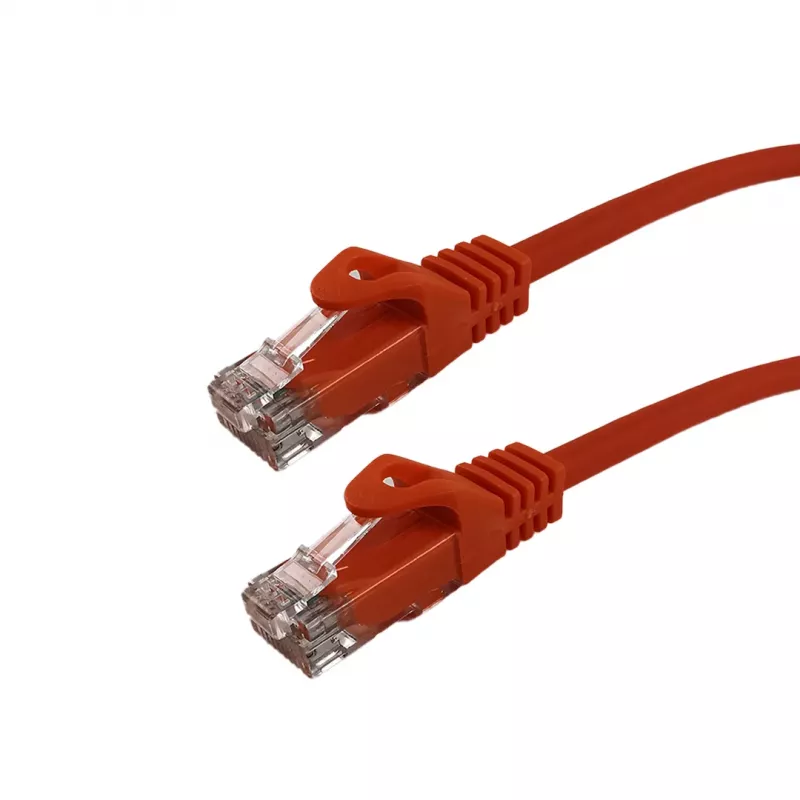

Grafenthal Cable de red CAT6 U/UTP CU LSZH 5,00m Naranja

The Grafenthal Patch Cable CAT6 U/UTP CU LSZH 5.00m Orange is a high-performance Ethernet cable designed for reliable network connections in data centers, offices, and home networks. Manufactured with 100% copper conductors and Low Smoke Zero Halogen (LSZH) jacket, this cable ensures safety and durability. It supports data transfer rates up to 10 Gigabit Ethernet (10GBASE-T) with a bandwidth of 250 MHz, making it ideal for demanding applications.

Advantages

This patch cable offers superior signal integrity and reduced crosstalk thanks to its U/UTP (Unshielded/Unshielded Twisted Pair) design. The LSZH jacket minimizes toxic smoke and fumes in case of fire, enhancing safety in enclosed spaces. The 24 AWG stranded copper conductors provide flexibility and long-lasting performance. Compliant with TIA/EIA-568B wiring standard, it ensures compatibility with standard network equipment.

Suitable for

• Local Area Networks (LAN)
• Data Centers
• Home Networks
• Server rooms and office environments
• Applications requiring high-speed data transfer up to 10 Gbps

Key specifications

• Cable Type: Patch Cable
• Ethernet Category: CAT6
• Shielding Type: U/UTP
• Conductor Material: 100% Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Length: 5.00 meters
• Cable Color: Orange
• Connector Type: RJ45 Male to RJ45 Male
• Wiring Standard: TIA/EIA-568B
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: 250 MHz
• Conductor Gauge: 24 AWG
• Cable Construction: Stranded Copper
• Fire Safety Standard: IEC 60332-1
• Compliance: RoHS, CE
• Operating Temperature: -20°C to 60°C
• Storage Temperature: -20°C to 75°C
• Insulation Material: HDPE (High-Density Polyethylene)

Recommendations

For optimal performance, use this cable with CAT6 compatible network devices. Ensure proper cable management to avoid kinks and sharp bends. This cable is suitable for both horizontal and patch cord applications.
