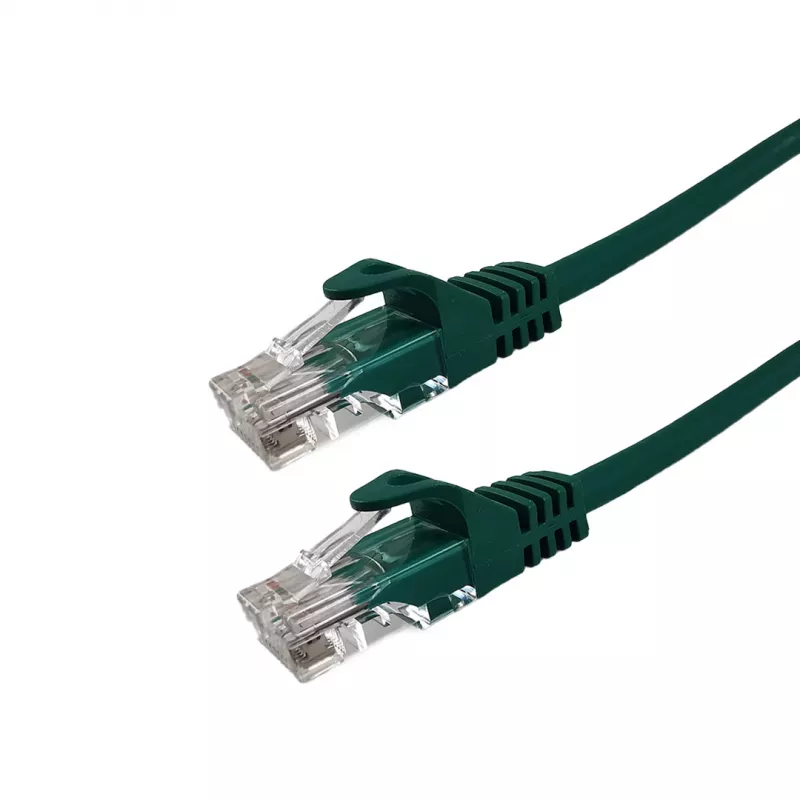

Grafenthal Cable de red Cat6 U/UTP CU PVC 0,25m Verde

The Grafenthal Patch Cable Cat6 U/UTP CU PVC 0.25m Green is a high-performance Ethernet patch cable designed for reliable network connectivity in data centers, server rooms, and home networks. Manufactured with pure copper conductors and PVC jacket, this cable ensures excellent signal transmission and durability.

Advantages

This Cat6 patch cable offers superior performance with bandwidth up to 250 MHz and supports 1 Gigabit Ethernet (1000BASE-T). The snagless boot design protects the RJ45 connectors during installation and removal, reducing the risk of damage. Stranded conductors provide flexibility for tight spaces, while the U/UTP shielding minimizes crosstalk and interference.

Suitable for

• Network connectivity between computers, switches, routers, and patch panels
• Data centers and server rooms requiring reliable high-speed connections
• Home and office Ethernet networks
• Applications where short cable lengths are needed (0.25m)

Key specifications

• Cable Type: Patch Cable
• Cable Category: Cat6
• Shielding Type: U/UTP (Unshielded Twisted Pair)
• Conductor Material: Pure Copper (CU)
• Jacket Material: PVC
• Length: 0.25 m
• Color: Green
• Connector Type: RJ45 Male to RJ45 Male
• Wiring Standard: TIA/EIA-568B
• Bandwidth: Up to 250 MHz
• Data Transfer Rate: Up to 1 Gbps
• Conductor Gauge: 26 AWG
• Cable Construction: Stranded
• Boot Type: Snagless
• Impedance: 100 Ohm
• Number of Pairs: 4 Twisted Pairs
• Operating Temperature: -20°C to 60°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, use this cable with Cat6 compatible devices. Ensure proper cable management to avoid kinking or sharp bends. This cable is ideal for short-distance connections where space is limited.
