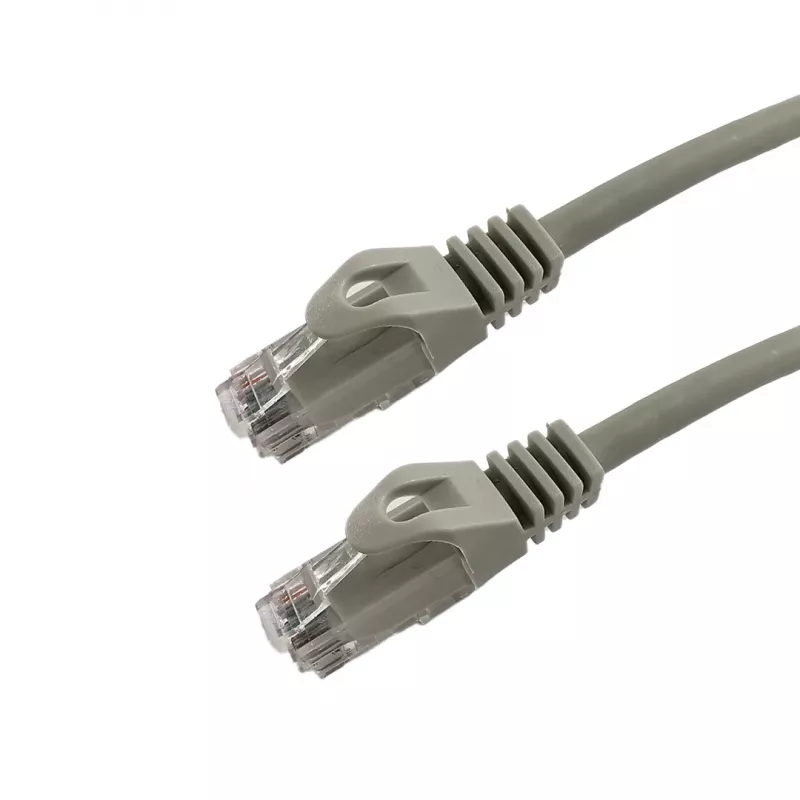

Grafenthal Cable de red CAT6 U/UTP CU PVC 5,00m Gris

The Grafenthal Patch Cable CAT6 U/UTP CU PVC 5.00m Grey is a high-performance Ethernet cable designed for reliable network connections in professional environments. Manufactured with pure copper conductors and PVC jacket, this cable ensures excellent signal integrity and durability for data-intensive applications.

Advantages

This patch cable offers superior data transfer rates up to 10 Gbps, making it ideal for bandwidth-intensive tasks such as streaming, gaming, and large file transfers. The U/UTP shielding minimizes electromagnetic interference, while the gold-plated RJ45 connectors provide corrosion-resistant, stable connections. Stranded construction enhances flexibility, reducing the risk of damage during installation.

Suitable for

• Ethernet LAN networks in offices, data centers, and home setups
• Connecting computers, switches, routers, and other network devices
• 10GBASE-T applications requiring high-speed data transmission

Key specifications

• Cable Type: Patch Cable
• Category: CAT6
• Shielding: U/UTP (Unshielded Twisted Pair)
• Conductor Material: Copper (CU)
• Jacket Material: PVC
• Length: 5.00 m
• Colour: Grey
• Connector Type: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated (50µm)
• Wiring Standard: TIA/EIA-568B
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: Up to 250 MHz
• Conductor Gauge: 24 AWG
• Cable Construction: Stranded
• Operating Temperature: -20°C to 60°C
• Jacket Diameter: Approx. 6.0 mm
• Fire Rating: CM Rated
• Compliance: RoHS, CE

Recommendations

For optimal performance, use this cable with CAT6-compatible network equipment. Ensure proper cable management to avoid kinking or sharp bends. This cable is suitable for indoor use only.
