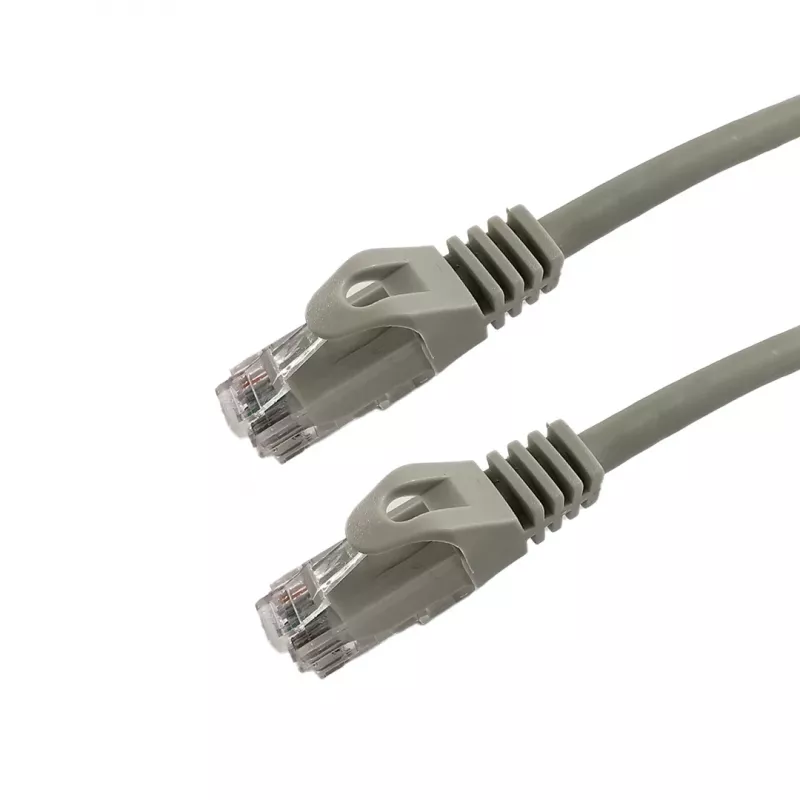

Grafenthal Cable de red CAT6 U/UTP LSZH 7,5m Gris

The Grafenthal CAT6 U/UTP LSZH Patch Cable 7.5m Grey is a high-performance network cable designed for reliable Gigabit Ethernet connections in professional environments. Manufactured with pure copper conductors and low smoke zero halogen (LSZH) jacket, it ensures safety and signal integrity.

Advantages

This patch cable offers excellent data transmission up to 250 MHz and supports 1 Gbps speeds, making it ideal for demanding network applications. The LSZH jacket reduces toxic fumes in case of fire, enhancing safety in enclosed spaces. Gold-plated RJ45 connectors provide corrosion resistance and optimal contact.

Suitable for

• Connecting computers, switches, routers, and patch panels in LAN networks
• Data centers, offices, and home networks requiring reliable performance
• Installations where fire safety is a priority (LSZH jacket)

Key specifications

• Cable Type: Patch Cable
• Category: CAT6
• Shielding: U/UTP (Unshielded)
• Conductor: Copper (CU), 26 AWG stranded
• Jacket: LSZH (Low Smoke Zero Halogen)
• Length: 7.5 meters
• Colour: Grey
• Connectors: RJ45 Male to RJ45 Male, gold-plated (50µm)
• Wiring: TIA/EIA-568B
• Bandwidth: 250 MHz
• Data Transfer Rate: 1 Gbps
• Impedance: 100 Ohm
• Number of Pairs: 4 twisted pairs
• Compliance: RoHS, CE
• Operating Temperature: -20°C to 60°C

Recommendations

For optimal performance, use with CAT6 compatible devices and avoid sharp bends or kinks during installation. This cable is suitable for structured cabling systems and ensures backward compatibility with CAT5e networks.
