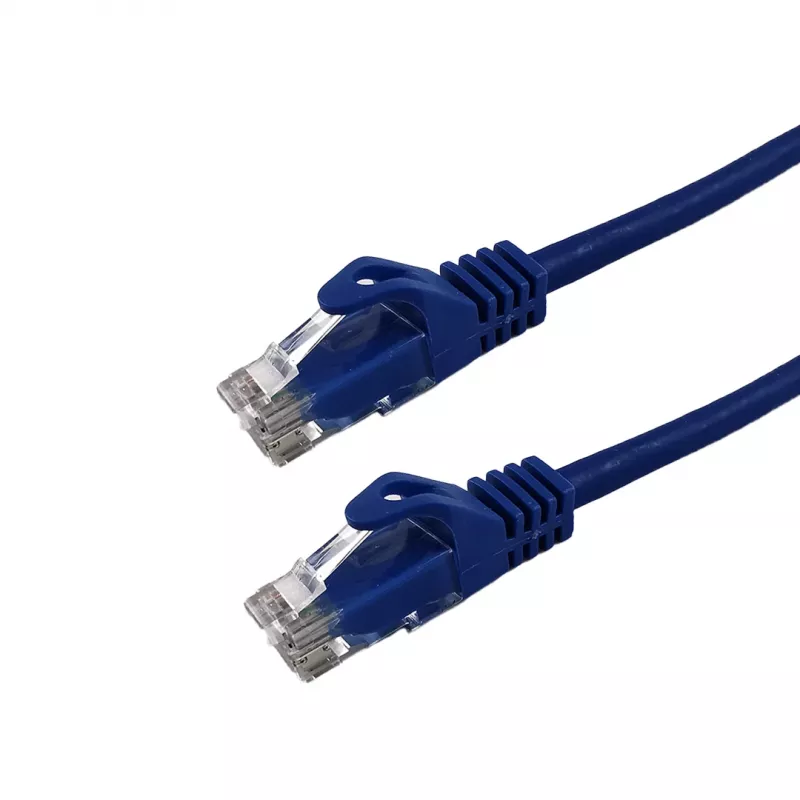

Grafenthal Cable de red CAT6A U/UTP CU LSZH 1,50m Azul

The Grafenthal Patch Cable CAT6A U/UTP CU LSZH 1.50m Blue is a high-performance Ethernet patch cable designed for reliable network connectivity in data centers, home offices, and enterprise environments. Manufactured with pure copper conductors and a Low Smoke Zero Halogen (LSZH) jacket, this cable ensures excellent signal integrity and safety in case of fire.

Advantages

This CAT6A cable supports data transfer rates up to 10 Gbps (10GBASE-T) with a bandwidth of 500 MHz, making it ideal for high-speed applications. The U/UTP (unshielded twisted pair) design reduces crosstalk and interference, while the snagless boot protects the RJ45 connectors during installation. The LSZH jacket minimizes toxic smoke and fumes, enhancing safety in enclosed spaces.

Suitable for

• Connecting computers, switches, routers, and patch panels in local area networks (LANs)
• Data centers requiring high-speed, reliable cabling
• Home and office networks demanding future-proof performance
• Applications where low smoke and halogen-free materials are required

Key specifications

• Cable Type: Ethernet Patch Cable
• Category: CAT6A (Category 6a)
• Shielding: U/UTP (Unshielded Twisted Pair)
• Conductor Material: Pure Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 1.5 meters
• Color: Blue
• Connectors: RJ45 Male to RJ45 Male
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Wiring Standard: TIA/EIA-568B
• Conductor Gauge: 26 AWG
• Number of Conductors: 8 (4 Twisted Pairs)
• Connector Plating: Gold-plated contacts
• Boot Type: Snagless
• Flammability Rating: LSZH compliant
• Operating Temperature: -20°C to 60°C
• Certifications: RoHS, CE

Recommendations

For optimal performance, pair this cable with CAT6A compatible network equipment. Ensure proper cable management to avoid kinking or sharp bends. This cable is an excellent choice for new installations or upgrades to 10 Gigabit Ethernet.
