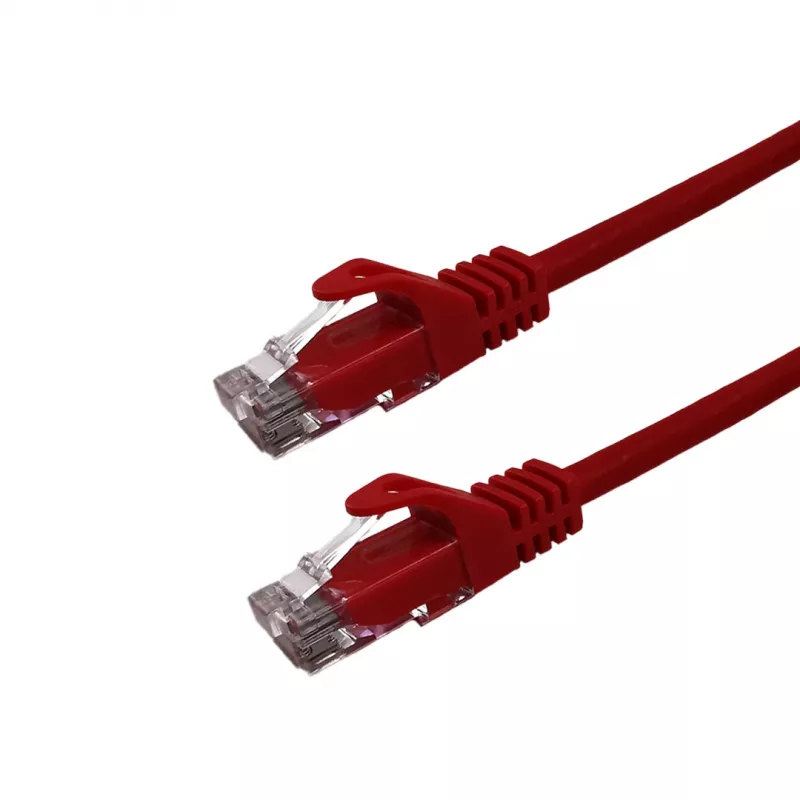

Grafenthal Cable de red CAT6A U/UTP CU LSZH 2,00m Rojo

The Grafenthal Patch Cable CAT6A U/UTP CU LSZH 2.00m Red is a high-performance Ethernet cable designed for reliable network connectivity in data centers, offices, and home networks. With Category 6a specifications, it supports data transfer rates up to 10 Gigabit Ethernet (10GBASE-T) and bandwidth up to 500 MHz, ensuring fast and stable connections. The cable features U/UTP (unshielded twisted pair) construction with 100% copper conductors, providing excellent signal integrity and reduced crosstalk. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in enclosed spaces by emitting minimal smoke and no toxic halogen gases in case of fire. The 2.00-meter length offers flexibility for short-distance connections, and the red color aids in easy identification and cable management.

Advantages

This patch cable delivers superior performance for high-speed networks, supporting 10GBASE-T applications. The 100% copper conductors guarantee optimal conductivity and durability, while the LSZH jacket enhances fire safety. Gold-plated RJ45 connectors ensure reliable, corrosion-resistant connections. The cable is compliant with RoHS and CE standards, and meets IEC 60332-1 for flame retardancy.

Suitable for

• Connecting computers, switches, routers, and patch panels in data centers
• High-speed Ethernet networks requiring 10 Gbps performance
• Office and home network installations where safety and reliability are paramount
• Applications demanding low smoke and halogen-free materials

Key specifications

• Cable Type: Patch Cable
• Category: CAT6A (Category 6a)
• Shielding Type: U/UTP (Unshielded/Unshielded Twisted Pair)
• Conductor Material: 100% Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 2.00 meters
• Color: Red
• Connector Type: RJ45 Male to RJ45 Male
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: Up to 500 MHz
• Wiring Standard: TIA/EIA-568B
• Conductor Gauge: 26 AWG
• Cable Construction: Stranded Copper
• Number of Conductors: 8 (4 twisted pairs)
• Connector Plating: Gold-plated contacts
• Application: Network connectivity, Ethernet, Data Centers
• Fire Safety Standard: IEC 60332-1 (LSZH compliant)
• Compliance: RoHS, CE
• Operating Temperature: -20°C to +60°C
• Outer Diameter: Approx. 6.0 mm

Recommendations

For optimal performance, use this cable with CAT6A compatible devices. Ensure proper cable management to avoid kinking or sharp bends. Ideal for structured cabling systems requiring high-speed data transmission and enhanced safety features.
