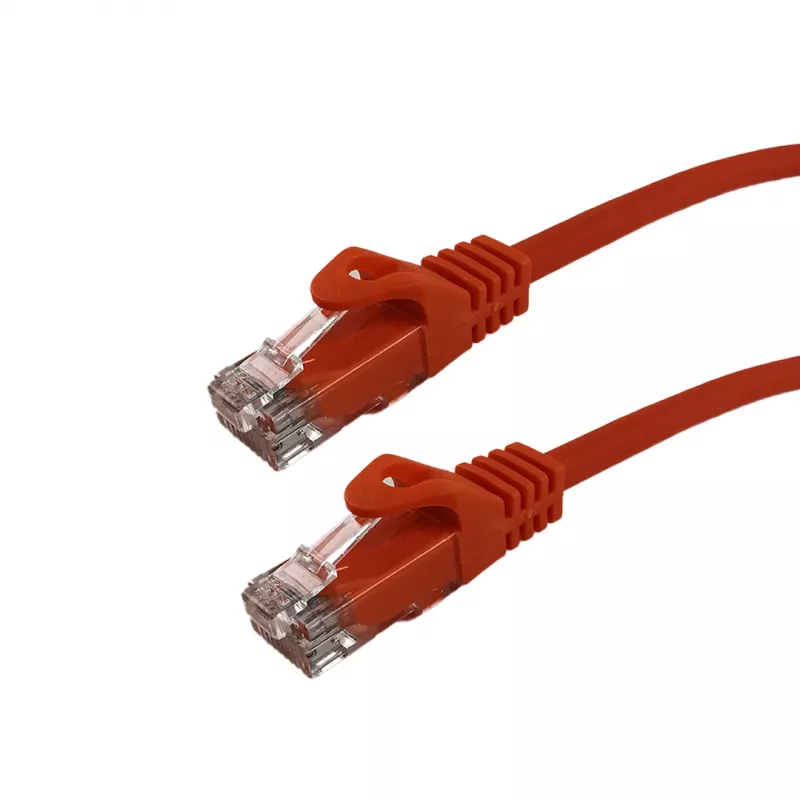

Grafenthal Cable de red Ethernet CAT6 U/UTP LSZH 0,2 m naranja

The Grafenthal CAT6 U/UTP LSZH Ethernet Patch Cable is a high-performance network cable designed for reliable data transmission in professional environments. With a length of 0.2 meters, it is ideal for short connections between patch panels, switches, and servers in data racks. The cable features 100% bare copper conductors and LSZH (Low Smoke Zero Halogen) jacket, ensuring safety and compliance with fire regulations.

Advantages

This patch cable offers excellent signal integrity and supports data transfer rates up to 10 Gbps, making it suitable for high-speed networks. The snagless boot design protects the RJ45 connectors during installation and removal, while the U/UTP shielding minimizes crosstalk and interference. The orange color allows for easy identification and cable management.

Suitable for

• Data centers and server rooms
• Network cabinets and racks
• Home and office Ethernet connections
• 10GBASE-T networks

Key specifications

• Cable Type: Ethernet Patch Cable
• Cable Category: CAT6
• Shielding: U/UTP (Unshielded)
• Conductor Material: 100% Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 0.2 m (20 cm)
• Color: Orange
• Connector Type: RJ45 Male to RJ45 Male
• Wiring Standard: TIA/EIA-568B
• Conductor Gauge: 24 AWG
• Frequency Bandwidth: Up to 250 MHz
• Data Transfer Rate: Up to 10 Gbps
• Number of Conductors: 8 (4 Twisted Pairs)
• Boot Type: Snagless
• Contact Plating: Gold-plated (50µm)
• Outer Diameter: Approx. 6.0 mm
• Operating Temperature: -20°C to 60°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, use this cable with CAT6 compatible devices. Ensure proper cable management to avoid bending beyond the minimum bend radius.
