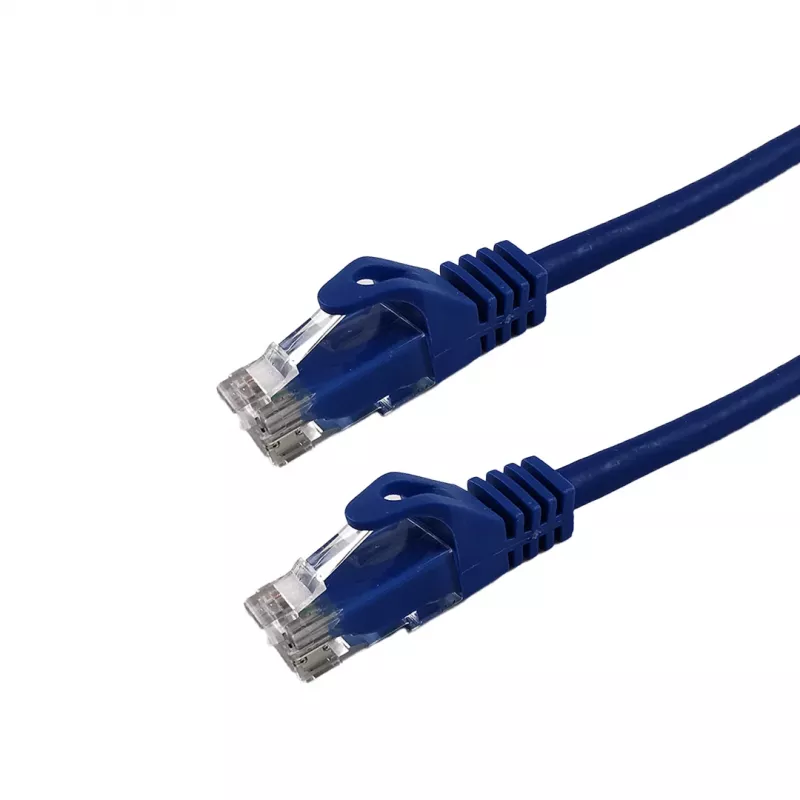

Grafenthal Cable de red Ethernet CAT6 U/UTP LSZH 5,0 m azul

The Grafenthal CAT6 U/UTP LSZH Ethernet Patch Cable is a high-performance network cable designed for reliable Gigabit Ethernet connections. With a length of 5.0 meters and a striking blue color, this pure copper cable ensures optimal signal integrity and minimal crosstalk. The LSZH (Low Smoke Zero Halogen) jacket makes it ideal for use in environments where fire safety is a priority, such as data centers, offices, and public buildings.

Advantages

This patch cable offers superior data transmission speeds up to 1 Gbps with a bandwidth of 250 MHz, making it suitable for demanding network applications. The stranded copper construction provides flexibility and durability, while the gold-plated RJ45 connectors ensure corrosion-resistant, reliable connections. The U/UTP shielding effectively reduces electromagnetic interference, and the TIA/EIA-568B wiring standard guarantees compatibility with standard Ethernet networks.

Suitable for

• Connecting computers, switches, routers, and other network devices in LAN environments
• Data center cabling where high-density and fire safety are required
• Office and home networks requiring reliable Gigabit Ethernet performance
• Installations in plenum spaces or areas with strict fire codes due to LSZH jacket

Key specifications

• Ethernet Category: CAT6
• Shielding: U/UTP (Unshielded Twisted Pair)
• Conductor Material: Pure Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 5.0 meters
• Color: Blue
• Connector Type: RJ45 Male to RJ45 Male
• Wiring Standard: TIA/EIA-568B
• Data Transfer Rate: Up to 1 Gbps (1000BASE-T)
• Bandwidth: Up to 250 MHz
• Conductor Gauge: 24 AWG
• Number of Conductors: 8 (4 Twisted Pairs)
• Conductor Construction: Stranded
• Connector Plating: Gold-plated contacts
• Compliance: RoHS, CE
• Operating Temperature: -20°C to 60°C
• Impedance: 100 Ohm

Recommendations

For optimal performance, use this cable with CAT6-compatible network equipment. Ensure proper cable management to avoid kinking or sharp bends. This cable is not recommended for outdoor use or direct burial.
