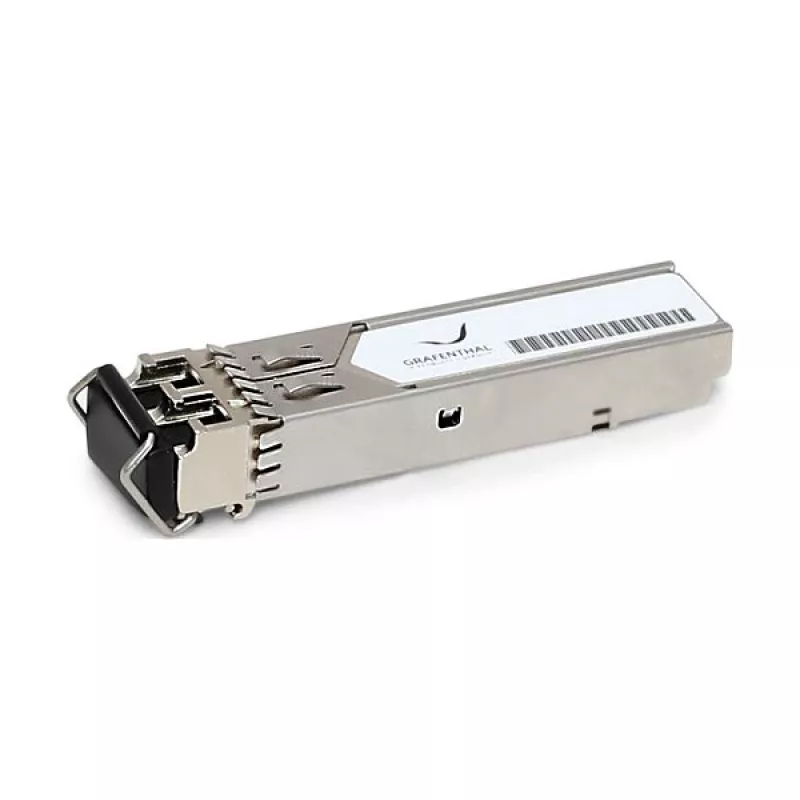

Grafenthal transceptor 10G SFP+ LC SR 300M OM3 MMF compatible con J9150D

The Grafenthal TRANSCEIVER 10G SFP+ LC SR 300M OM3 MMF is a high-performance, hot-pluggable SFP+ transceiver designed for 10 Gigabit Ethernet applications. It is fully compatible with the HP J9150D standard, ensuring seamless integration into existing network infrastructures. This transceiver supports a maximum reach of 300 meters over OM3 multimode fiber, making it ideal for data center and enterprise network deployments.

Advantages

This transceiver offers reliable, high-speed connectivity with low power consumption (<1W) and digital diagnostic monitoring (DDM) for real-time performance tracking. Its hot-pluggable design allows for easy installation and maintenance without disrupting network operations.

Suitable for

• 10 Gigabit Ethernet networks (10GBASE-SR)
• Data center interconnects
• Enterprise LAN and SAN environments
• Fiber Channel applications

Key specifications

• Transceiver Type: SFP+
• Data Rate: 10 Gbps
• Wavelength: 850 nm
• Connector: LC Duplex
• Fiber Type: Multimode (OM3)
• Max Distance: 300 m
• Power Consumption: <1 W
• Operating Temperature: 0°C to 70°C
• Compliance: IEEE 802.3ae
• Compatibility: HP J9150D Equivalent

Recommendations

For optimal performance, pair this transceiver with OM3 or OM4 multimode fiber cables and ensure your network equipment supports SFP+ modules. Always verify compatibility with your specific hardware before installation.
