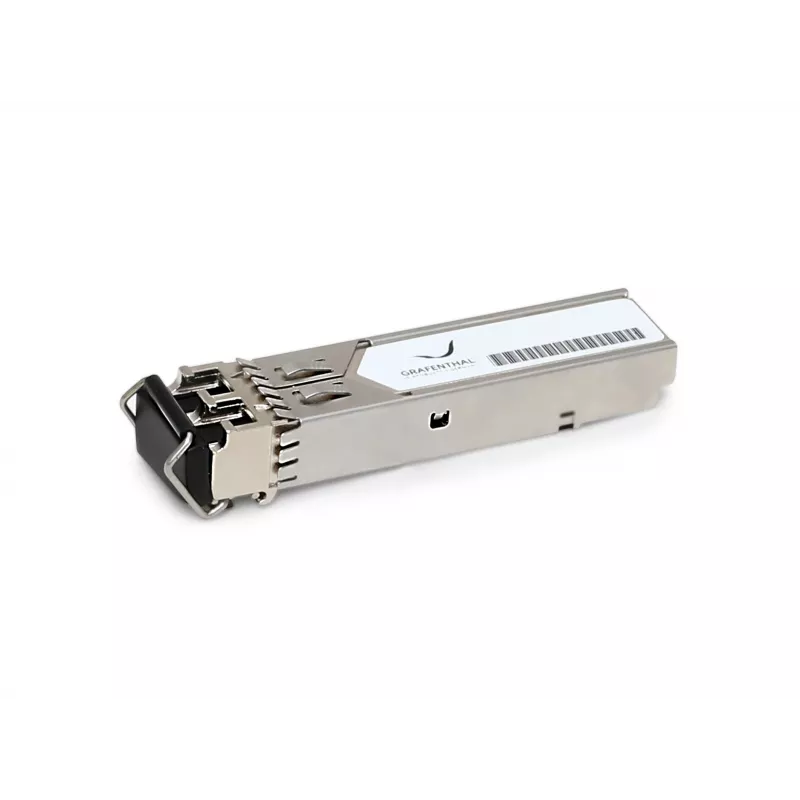

Grafenthal transceptor 1G SFP LC LX 10km SMF compatible con J4859D

The Grafenthal Transceiver 1G SFP LC LX 10km SMF is a high-performance, hot-swappable SFP module designed for Gigabit Ethernet networking. It provides reliable data transmission over single-mode fiber at distances up to 10 km, making it ideal for enterprise and data center applications. This transceiver is comparable to the HP J4859D and offers full compatibility with standard SFP ports.

Advantages

This transceiver delivers cost-effective connectivity without compromising on quality. It supports Digital Diagnostic Monitoring (DDM) for real-time performance tracking, ensuring network stability. The hot-swappable design allows for easy installation and maintenance without disrupting network operations. With low power consumption (<1W) and a wide operating temperature range (0°C to 70°C), it is suitable for various environments.

Suitable for

• Gigabit Ethernet networks requiring long-distance fiber connections
• Enterprise LANs, data centers, and telecommunications
• Replacement or expansion of existing HP J4859D compatible systems

Key specifications

• Form Factor: SFP
• Data Rate: 1 Gbps
• Wavelength: 1310 nm
• Max Distance: 10 km
• Fiber Type: Single-Mode (SMF)
• Connector: LC Duplex
• Standard: IEEE 802.3z 1000BASE-LX
• DDM: Yes
• Operating Temperature: 0°C to 70°C
• Power Consumption: <1 W
• Hot-Pluggable: Yes

Recommendations

For optimal performance, pair this transceiver with OS1/OS2 single-mode fiber cables and ensure compatibility with your network equipment. Always handle with care to avoid damage to the optical ports.
