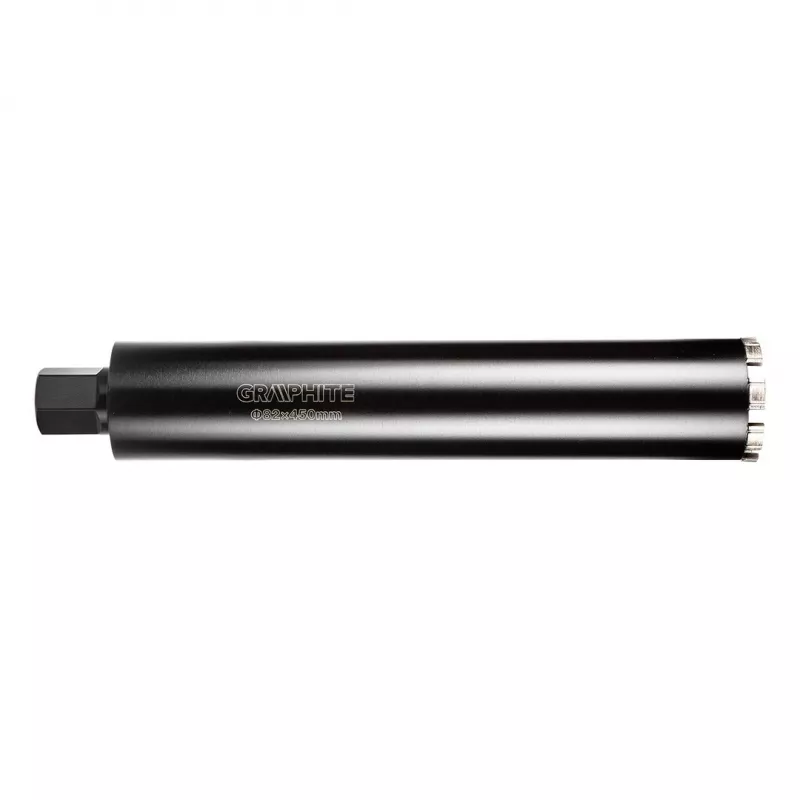

GRAPHITE corona de diamante 82 mm x 450 mm M22 para taladro de corona 58G540

Professional diamond core drill bit engineered for heavy-duty wet drilling in concrete, reinforced concrete, brick, masonry, and stone. The open-ended design allows continuous core ejection, while laser-welded diamond segments deliver exceptional cutting speed and durability in demanding construction environments.

Advantages

Laser-welded industrial diamond segments ensure high resistance to abrasion and impact, extending service life even in reinforced concrete. The open-ended body facilitates efficient core removal, reducing downtime during deep drilling. M22 thread provides secure, tool-free mounting to the GRAPHITE 58G540 core drilling rig, ensuring concentric rotation and precise holes.

Suitable for

• Professional construction and renovation projects
• Plumbing and pipe installation through walls and floors
• HVAC ductwork and vent openings
• Electrical conduit and cable routing
• Creating openings for anchor bolts and dowels

Key specifications

• Drilling diameter: 82 mm
• Overall length: 450 mm (maximum drilling depth)
• Mounting thread: M22
• Number of diamond segments: 8
• Segment attachment: laser-welded
• Body material: high-grade steel
• Segment material: industrial diamonds
• Drilling method: wet
• Compatible tool: GRAPHITE 58G540 core drilling rig

Recommendations

For optimal performance and longevity, always use water cooling during drilling. Apply steady, moderate pressure and periodically withdraw the bit to clear debris. Inspect segments for wear before each use and replace if damaged. Use only with compatible GRAPHITE 58G540 drilling rig.
