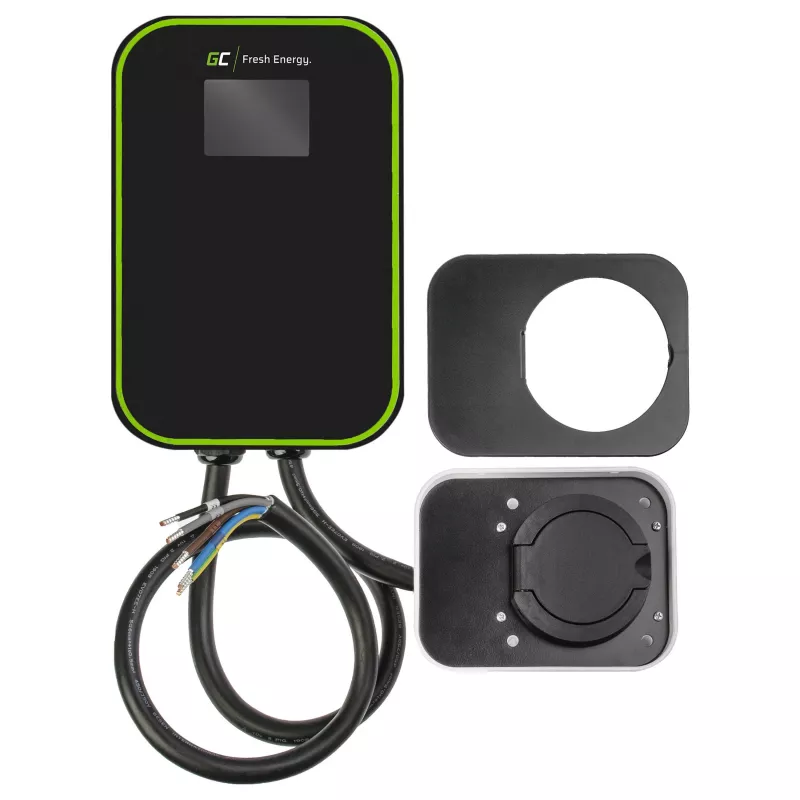

Green Cell EV PowerBox EV15 Cargador de pared 22kW con toma Type-2 para coches eléctricos e híbridos enchufables

For drivers who need maximum charging speed at home or work, the Green Cell EV PowerBox EV15 delivers a full 22 kW of three-phase power through a universal Type 2 socket. Unlike fixed-cable wallboxes that limit you to one connector, this unit works with your existing Type 2 cable and supports Mode 3 charging for all current EVs and plug-in hybrids. The IP65 weatherproof housing and IK10 impact resistance make it safe for outdoor installation, while integrated RFID, Wi-Fi, Ethernet, and Bluetooth give you complete control over access and energy use.

Highlights

• 22 kW maximum charging power on 400V three-phase supply
• Type 2 socket (IEC 62196-2) compatible with most EVs
• IP65 weatherproof rating and IK10 impact resistance for outdoor installation
• Integrated RFID reader for secure user authentication
• Wi-Fi, Ethernet, and Bluetooth connectivity with OCPP 1.6J
• Built-in energy meter and LCD display for real-time monitoring

In daily use

This wallbox combines robust engineering with intelligent features. The Type 2 socket supports Mode 3 charging, allowing you to use your existing charging cable. The IP65 enclosure protects against rain and dust, while the IK10 rating ensures it can withstand accidental impact. With the companion app, you can schedule charging during off-peak tariffs, monitor energy consumption, and adjust access permissions for different users.

Full specifications

• Maximum charging power: 22 kW
• Input voltage: 400V AC (three-phase)
• Maximum input current: 32 A
• Input frequency: 50/60 Hz

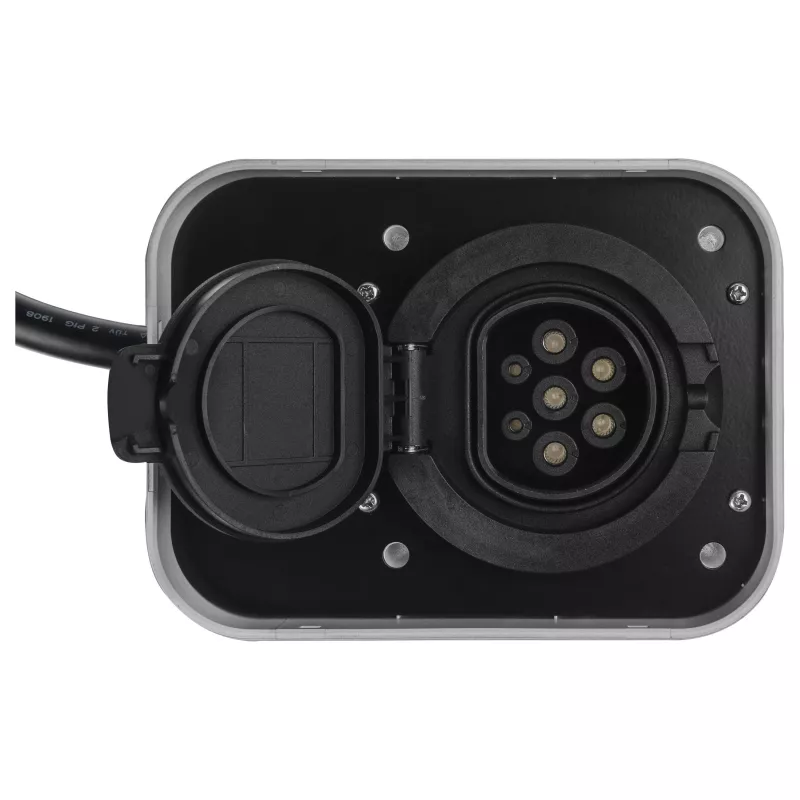

• Connector: Type 2 socket (IEC 62196-2)
• Charging mode: Mode 3
• Residual current protection: Type A + DC 6mA
• Rated IP: IP65
• Impact resistance: IK10
• Connectivity: Wi-Fi, Ethernet, Bluetooth, OCPP 1.6J
• User interface: LCD display, LED indicators, mobile app
• Authentication: RFID card, Plug & Charge
• Energy meter: Integrated

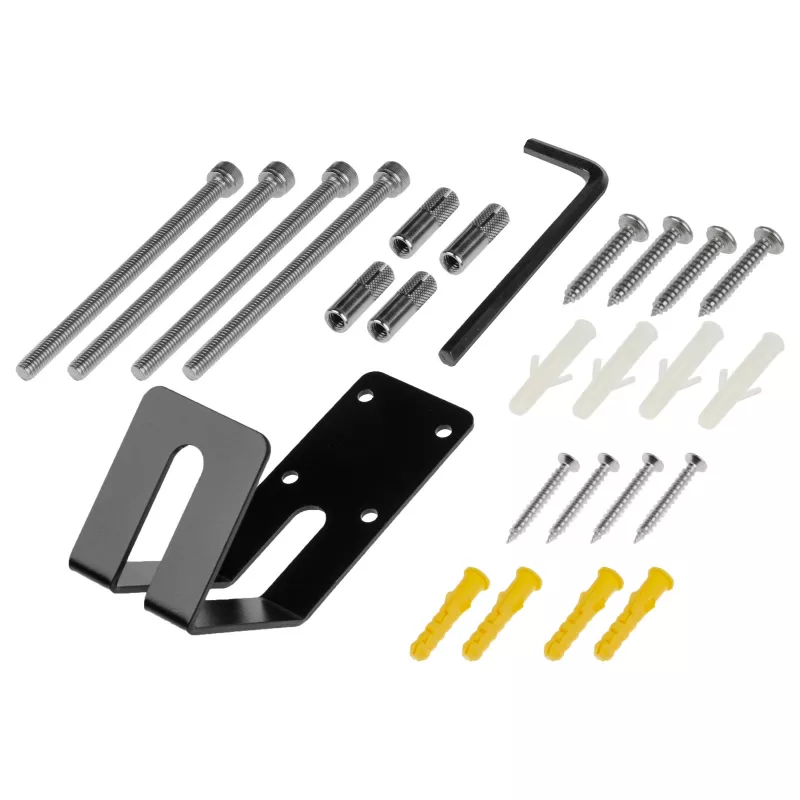

• Mounting type: Wall-mounted
• Operating temperature: -40°C to +55°C
• Housing material: ABS
• Certifications: CE

Final note

The EV15 is a future-ready charging solution that balances high power, durability, and smart connectivity for both private and commercial use.
