Grenton módulo de persiana (1 salida) - 1-Wire, entradas digitales (2 entradas), montaje empotrado, TF-Bus

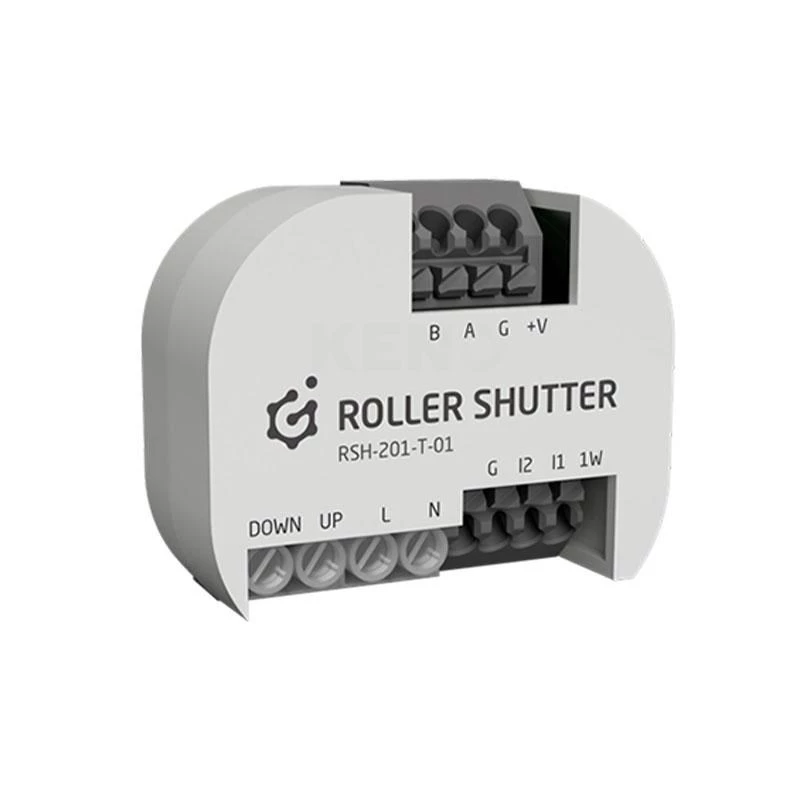

The Grenton Roller Shutter Module (RSH-201-T-01) is a compact, flush-mounted device designed for precise control of single roller shutters, awnings, or blinds within the Grenton Smart Home System. It communicates via the proprietary TF-Bus (1-Wire physical layer) and features two digital inputs for external switches or sensors. The module supports up/down/stop and percentage position control, with automatic travel calibration for reliable operation.

Advantages

This module offers seamless integration into Grenton smart home setups, enabling automated and remote control of window coverings. The two potential-free inputs allow connection to standard push buttons or sensors, while the bistable relay output ensures low power consumption. Automatic calibration simplifies installation and ensures accurate positioning.

Suitable for

• Controlling roller shutters, awnings, and blinds in residential and commercial buildings
• Integration into Grenton smart home automation systems
• Flush-mounted installations in standard Ø60mm wall boxes

Key specifications

• Communication Protocol: Grenton TF-Bus (1-Wire)
• Number of Shutter Outputs: 1 (Relay, Bistable)
• Output Voltage: 230V AC
• Max Output Current (Resistive): 5A
• Max Output Current (Inductive/Motor): 3A
• Max Output Power: 690W (at 230V, 3A)
• Number of Digital Inputs: 2 (Potential-free)
• Power Supply: 12V DC via TF-Bus
• Installation: Flush-mounted (Ø60mm box)
• Operating Temperature: -10°C to +50°C
• Operating Humidity: 5% to 90% RH (non-condensing)
• Housing Material: Flame-retardant plastic
• Protection Rating: IP20
• Control Functions: Up/Down/Stop, Percentage Position
• Special Features: Automatic travel calibration
• Bus Connection: 4-pin terminal block
• Input Connection: 2x 2-pin terminal blocks

Recommendations

For optimal performance, use with Grenton TF-Bus compatible controllers and ensure proper wiring according to the installation manual. The module is designed for indoor use only.
