Grenton Módulo de salida para persianas (1 salida) Carril DIN TF-BUS

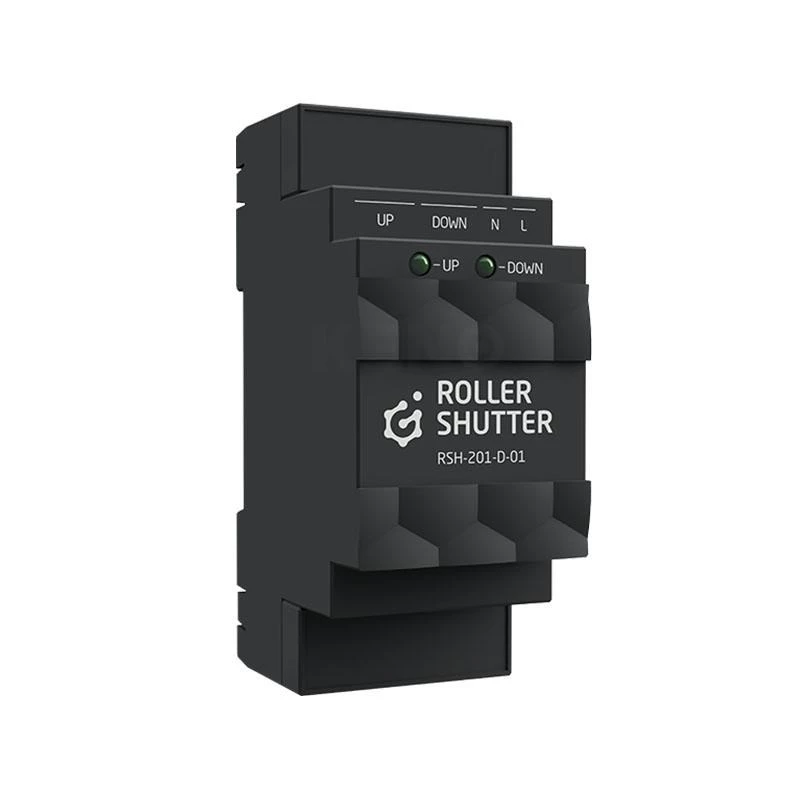

The Grenton RSH-201-D-01 is a single-channel roller shutter output module designed for DIN rail mounting. It integrates seamlessly into the Grenton TF-BUS smart home system, providing reliable control of roller blinds, shutters, awnings, gates, and projection screens. With potential-free relay outputs, it ensures safe and efficient operation for up/down/stop commands.

Advantages

Compact 2-module DIN design saves space in electrical cabinets. The TF-BUS communication protocol guarantees stable and fast data exchange with other Grenton devices. Low standby power consumption of only 0.5W contributes to energy efficiency. Easy installation and configuration within the Grenton ecosystem.

Suitable for

• Residential and commercial smart home installations
• Control of roller blinds, shutters, awnings, gates, and projection screens
• Integration into Grenton TF-BUS automation systems

Key specifications

• Module Type: Roller Shutter Output Module
• Number of Outputs: 1
• Output Type: Relay (Potential-Free Contacts)
• Output Control: Up / Down / Stop
• Max Output Current: 3A per channel
• Max Output Voltage: 250V AC
• Communication Protocol: Grenton TF-BUS
• Power Supply: 12V DC
• Power Consumption (Standby): 0.5W
• Mounting Type: DIN Rail (TS-35)
• DIN Module Width: 2 Modules (35mm)
• Operating Temperature: -10°C to +50°C
• Protection Rating: IP20
• Housing Material: Plastic
• Certifications: CE (expected)

Recommendations

For optimal performance, pair this module with a compatible Grenton TF-BUS controller and ensure proper DIN rail installation. Always adhere to local electrical codes and safety regulations.
