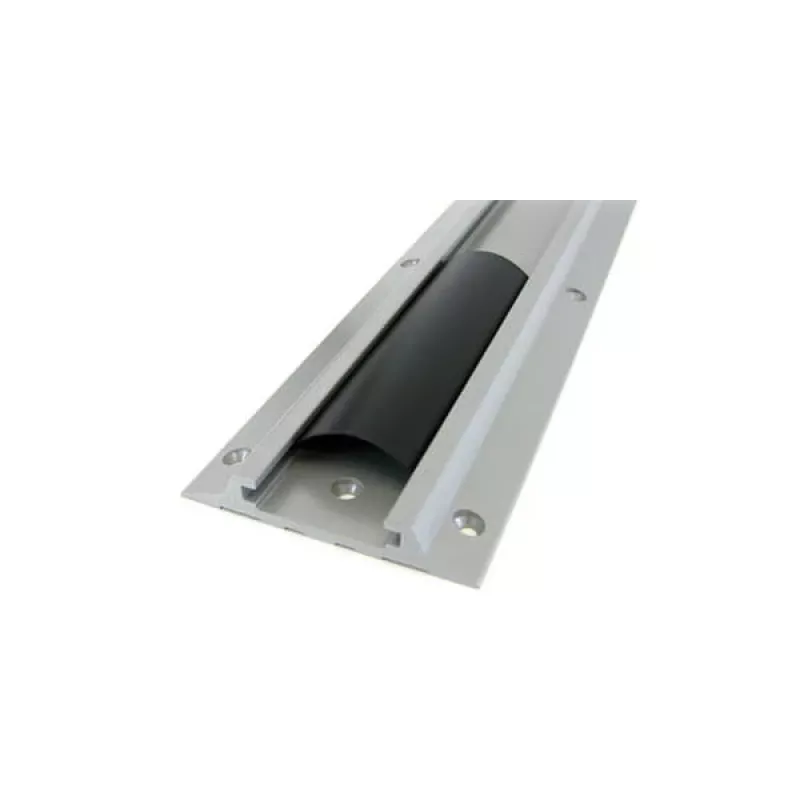

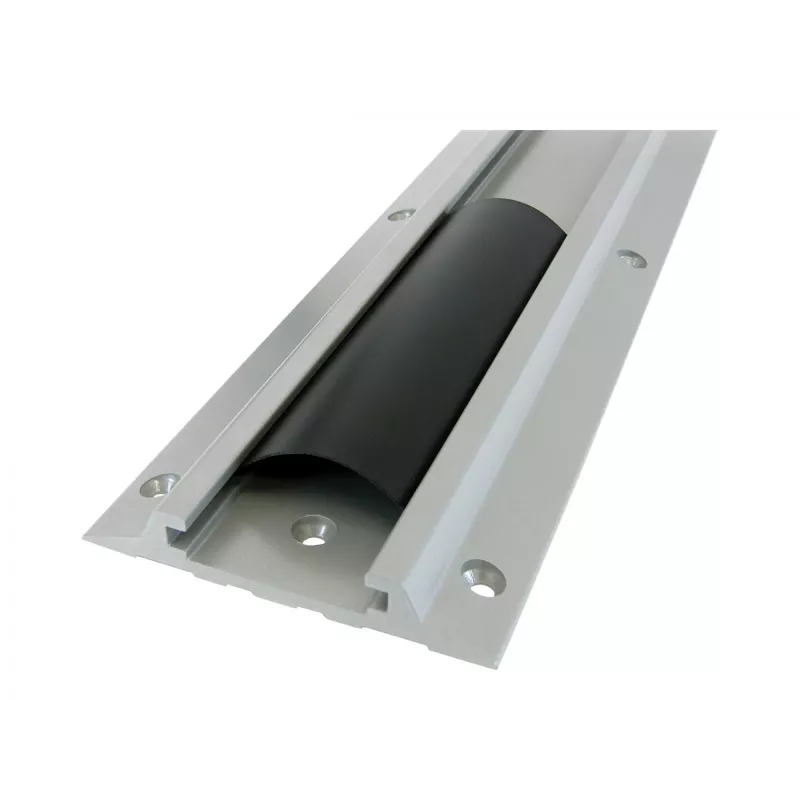

Guía de pared Ergotron 10" 31-016-182

The Ergotron Wall Track 10" (model 31-016-182) is a low-cost, zero-footprint mounting rail made of extruded aluminium that attaches to most vertical surfaces and can accommodate an entire computer workstation. Its aluminium finish provides a sturdy, low-profile solution for organizing monitors, arms, CPU holders and routing cables while optimizing space in offices, clinics or other environments where a compact mounting system is required.

Advantages

The Wall Track acts as a common interface for Wall Mount Arms and CPU Holders, allowing multiple components to be mounted along a single rail. By distributing weight over a larger surface area, it strengthens installations and reduces stress on individual fixings. The construction uses durable extruded aluminium for rigidity and longevity, and the product is OSHPD pre-approved to meet California hospital requirements. A channel cover is included to conceal and route cables for a cleaner appearance.

Suitable for

• Mounting monitor arms, keyboard trays and CPU holders in workstations
• Space-saving installations in offices, clinics and medical environments
• Locations requiring a low-footprint mounting solution on vertical surfaces

Key specifications

• Brand: ERGOTRON
• Model / MPN: 31-016-182
• Length: 10" (wall track)
• Material: Extruded aluminium
• Product colour: Aluminium
• Weight: 0.9 kg
• Includes channel cover for cable routing
• OSHPD pre-approved for California hospital requirements

How to use

Attach the Wall Track to a suitable vertical surface using appropriate fasteners for the wall type (fasteners and separately-ordered brackets are not included). Installers then mount Wall Mount Arms, CPU Holders or other compatible accessories to the track using the required brackets and secure them by tightening the set-screws on those brackets. Height and position of components are adjusted by loosening the bracket set-screws, sliding the component to the desired location on the track, and retightening the screws.

Recommendations

Use mounting hardware and wall anchors appropriate for the wall construction and load. Order the required brackets separately to attach components to the Wall Track and verify compatibility with your monitor arms and CPU holders. For installations in medical facilities, confirm that installation practices comply with local codes and the OSHPD pre-approval conditions.
