Guil ULK-600XL - Elevador de horquilla compacto con cabrestante, altura de trabajo máx. 6,00 m | Capacidad de carga

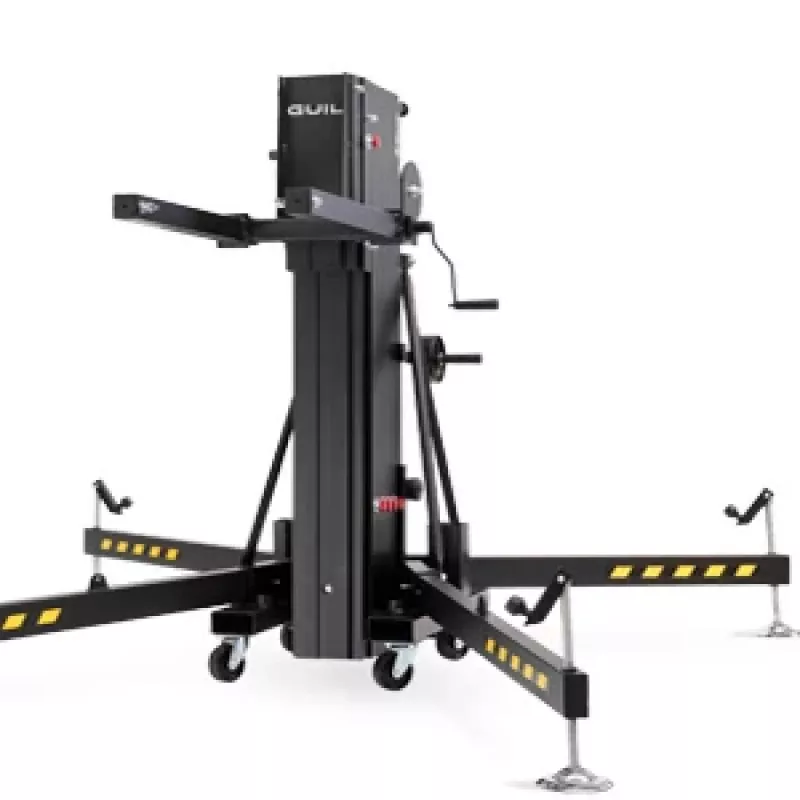

The GUIL ULK 600XL is a compact forklift with a manual winch, engineered for lifting loads up to 300 kg to a maximum working height of 6.00 metres. Its telescopic mast, constructed from high-strength aluminum alloy, ensures stability and durability, while the steel base and four telescopic stabilizer legs with rubber feet provide a secure foundation. The winch features an automatic brake for precise load control, and safety pins and a spirit level add extra security during operation. Integrated transport wheels and a folded height of just 1.75 m make it easy to move and store, ideal for stage, event, sound & lighting, and industrial lifting applications.

Advantages

The ULK 600XL combines robust construction with user-friendly features. The manual winch with automatic brake allows smooth lifting and lowering, while the adjustable fork width (250–750 mm) accommodates various load sizes. The four-section mast extends to 6.00 m yet folds to a compact 1.75 m for transport. CE compliance ensures safety standards are met, and the black/silver finish is both functional and professional.

Suitable for

• Stage and event rigging
• Sound and lighting equipment installation
• Industrial lifting and maintenance
• Warehouse and workshop use

Key specifications

• Maximum working height: 6.00 m
• Maximum load capacity: 300 kg
• Lifting mechanism: Manual winch with automatic brake
• Number of mast sections: 4
• Material: High-strength aluminum alloy mast, steel base
• Transport height: 1.75 m
• Base dimensions (folded): 560 x 560 mm
• Fork length: 650 mm
• Fork width (adjustable): 250–750 mm
• Safety features: Automatic brake, safety pins, spirit level, reinforced steel cables
• Stabilizer legs: 4 telescopic legs with rubber feet
• Wheels: Integrated transport wheels
• Certification: CE Compliant
• Minimum load height: 0.17 m
• Cable diameter: 6 mm

Recommendations

For safe operation, always ensure the stabilizer legs are fully extended and the spirit level indicates a level base before lifting. Regularly inspect the winch cable and safety pins for wear. Use appropriate personal protective equipment when handling loads.
