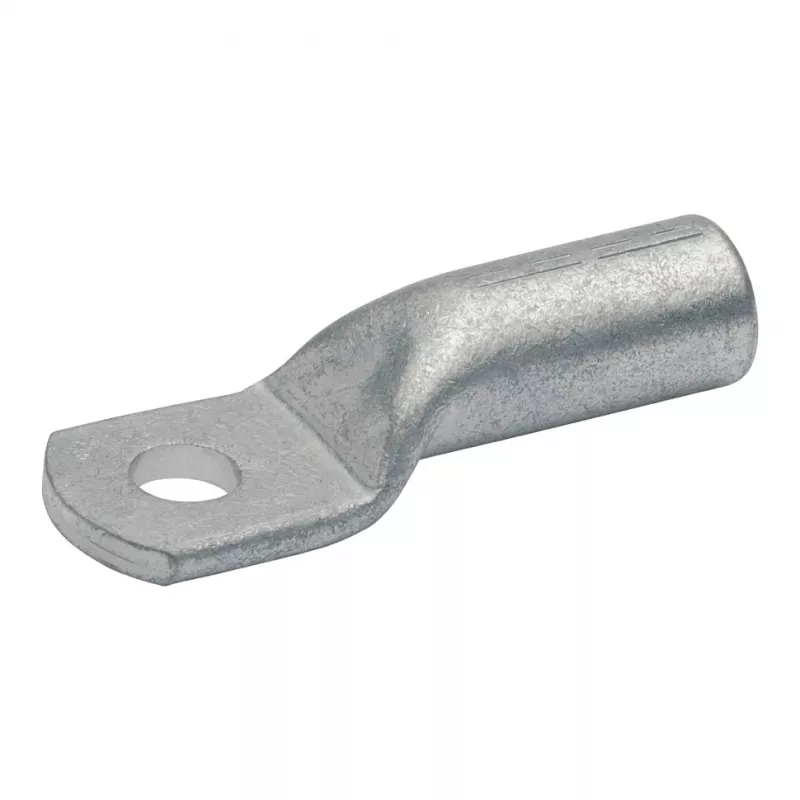

Gustav Klauke Terminal de cable 107R16 70 mm² cobre estañado galvánicamente Terminal de crimpado

This Gustav Klauke cable lug, model 107R16, delivers secure, high-conductivity terminations for 70 mm² copper conductors. Manufactured from seamless drawn electrolytic copper and galvanically tinned, it offers excellent corrosion resistance and reliable performance in demanding electrical installations.

Advantages

The galvanized tin coating provides superior protection against oxidation and corrosion, ensuring long-lasting electrical integrity. The seamless drawn tube construction offers high mechanical strength and consistent crimping characteristics. With an inspection hole, you can verify the conductor insertion depth for a secure and reliable connection every time.

Suitable for

• Terminating fine-stranded, multi-stranded, and solid copper conductors
• Low and medium voltage applications up to 1000 V
• Industrial control panels, switchgear, and distribution systems
• Electrical installations requiring dependable, maintenance-free connections

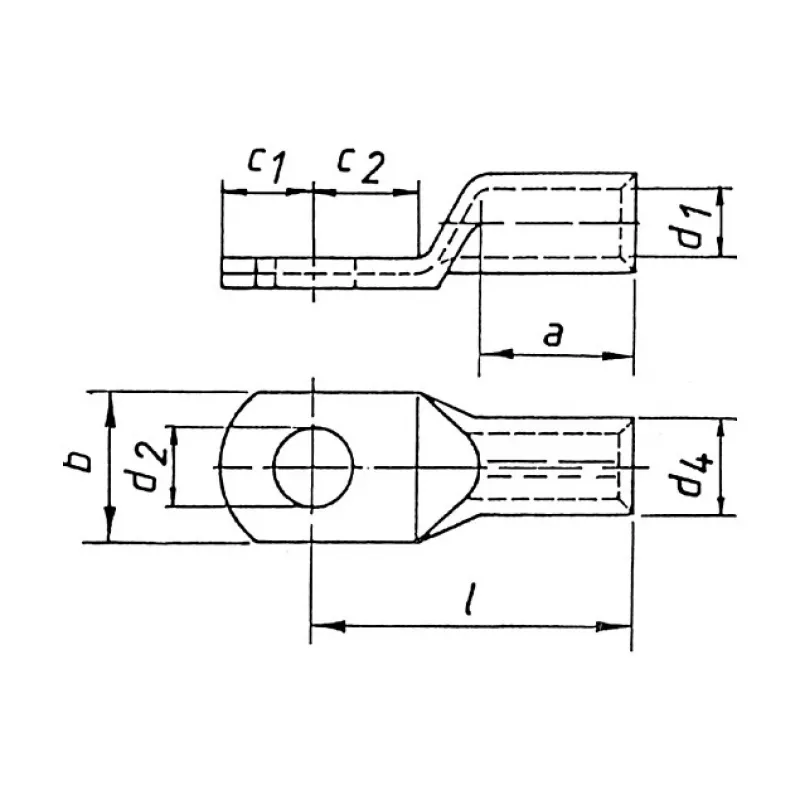

Key specifications

• Cable lug type: Tubular (Rohrkabelschuh) for crimp connection
• Conductor cross-section: 70 mm²
• Bolt hole diameter: 16 mm (M16)
• Material: Electrolytic copper (E-Cu), galvanically tinned
• Design standard: DIN 46235
• Maximum temperature: 150°C
• Voltage rating: Up to 1000 V
• Inspection hole: Yes

Recommendations

For optimal performance, use with a calibrated crimping tool recommended for 70 mm² copper lugs. Ensure the conductor is fully inserted and the crimp is properly executed to achieve a secure, low-resistance connection.
