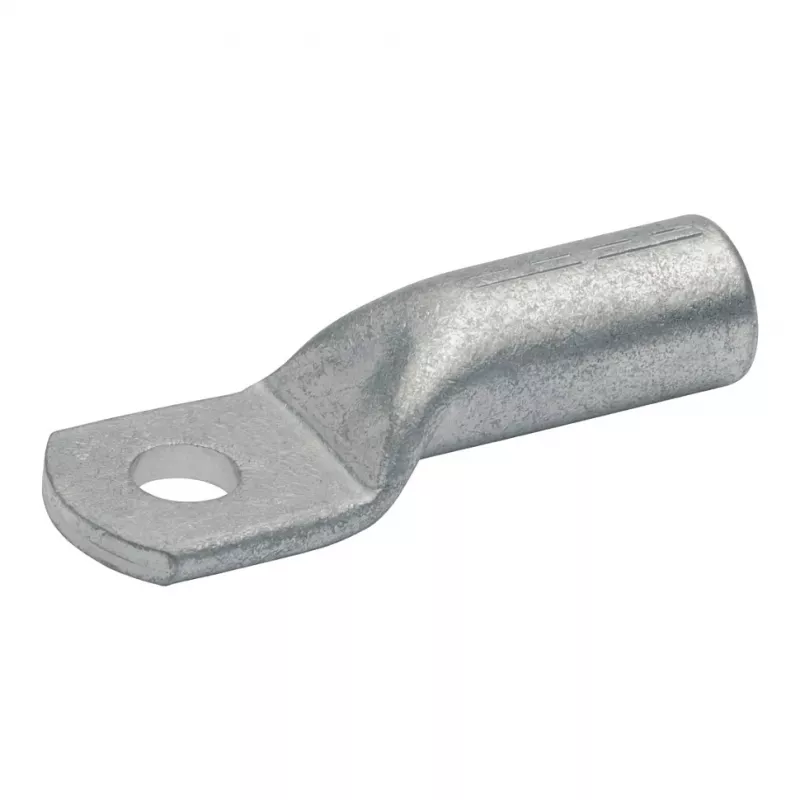

KLAU terminal de compresión 35 mm² M6 estañado electrolítico DIN 46235 (105R6)

For professionals who demand a secure, low-resistance connection in industrial and switchgear applications, the KLAU 105R6 compression cable lug stands apart through its meticulous electro-tinning and strict adherence to DIN 46235. Unlike generic lugs, this lug is crafted from high-purity electrolytic copper (E-Cu, >99.9% Cu) and then galvanically tinned, ensuring superior corrosion resistance and consistent electrical performance over decades of service. The integrated inspection hole allows for quick verification of full conductor insertion before crimping, eliminating guesswork and reducing installation errors.

Highlights

• Electro-tinned surface for maximum corrosion protection and low contact resistance
• Conforms to DIN 46235 for reliable crimp dimensions and performance
• Inspection hole ensures correct cable insertion depth
• Made from high-purity electrolytic copper (E-Cu, >99.9% Cu)
• Optimized wall thickness for standard crimping tools and dies
• RoHS compliant and halogen-free

In daily use

Compression cable lugs are the backbone of reliable electrical connections in power distribution, control cabinets, and machinery. The KLAU 105R6 is engineered for copper conductors with a cross-section of 35 mm² and features an M6 bolt hole (6.4 mm diameter) for secure fastening to busbars, terminals, or studs. Its straight barrel design accommodates standard crimping tools, and the tinned finish prevents oxidation even in humid or chemically aggressive environments. The operating temperature range of -50°C to +150°C ensures performance in extreme conditions.

Full specifications

• Product Type: Compression Cable Lug
• Cable Cross-Section: 35 mm²
• Bolt Hole Diameter: M6 (6.4 mm)
• Material: Electrolytic Copper (E-Cu)
• Surface Treatment: Electro-tinned (Galvanically Tinned)
• Standard Compliance: DIN 46235
• Connection Method: Crimp / Compression
• Conductor Compatibility: Copper Conductors
• Terminal Shape: Ring Terminal
• Number of Bolt Holes: 1
• Design: Straight Barrel
• Corrosion Resistance: High
• Electrical Conductivity: Excellent
• Inspection Hole: Yes
• Material Purity: >99.9% Copper
• Application: Industrial, Electrical Installations, Switchgear
• Operating Temperature Range: -50°C to +150°C
• Wall Thickness: Optimized for standard crimping tools
• RoHS Compliant: Yes
• Halogen-free: Yes

Final note

Choose the KLAU 105R6 for a dependable, long-lasting crimp connection that meets stringent DIN standards and performs flawlessly in demanding environments.
