Tira de pines DeLOCK 66692 accesorio para placas de circuito

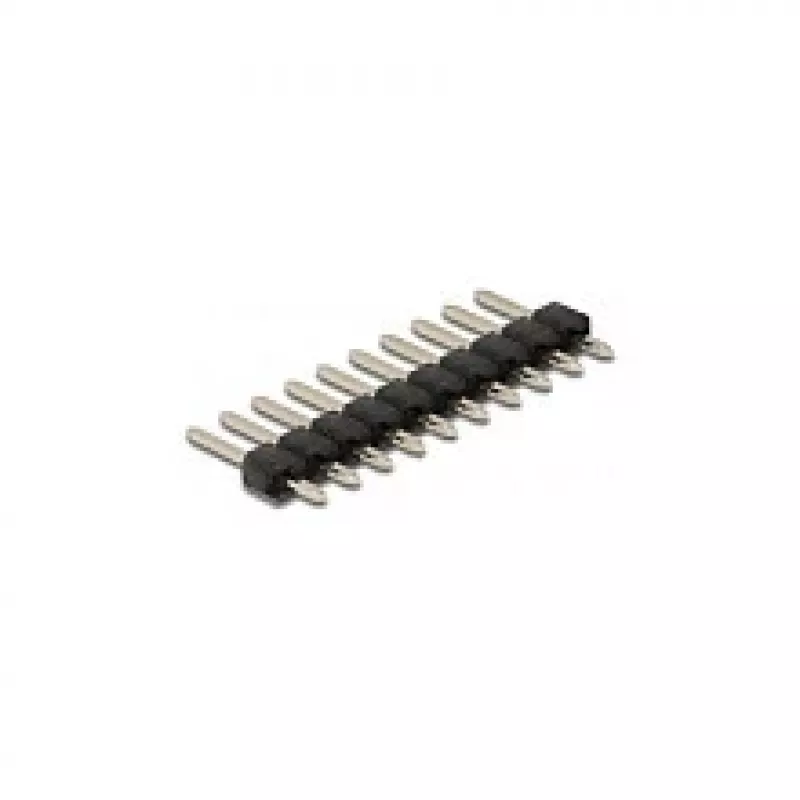

The DeLOCK 66692 pin header is an accessory for printed circuit boards designed to establish reliable electrical connections between individual PCBs. It combines metal contacts with a plastic housing in a compact black and metallic design and is suitable for a range of electronic applications where board-to-board or board-to-cable connections are required.

Advantages

This pin header provides a durable metal contact surface and a stable plastic insulator for consistent connection performance. Its compact dimensions (25.4 mm length, 11.5 mm depth, 2.5 mm height) make it easy to place on standard PCBs while keeping board space usage low. The standardized pin layout simplifies installation and compatibility with common connectors.

Suitable for

• Establishing connections between printed circuit boards
• Prototyping electronic circuits
• Replacing or adding header pins on development boards
• Connecting wires or ribbon cables to a PCB

Key specifications

• Brand: DELOCK
• Model / MPN: 66692
• EAN: 4043619666928
• Materials: metal contacts, plastic housing
• Color: black and metallic
• Dimensions: 25.4 mm (length) × 11.5 mm (depth) × 2.5 mm (height)
• Category: Printed circuit board accessory

How to use

Position the pin header on the PCB pads according to the board layout, then solder each pin to its corresponding pad ensuring good wetting and mechanical stability. Verify pin alignment before soldering to avoid misplacement. After soldering, inspect joints for cold solder or bridges and trim any excess pin length if necessary.

Recommendations

For reliable long-term operation, use appropriate soldering temperature and flux for the PCB and ensure the header is secured mechanically during soldering. Store the pin header in a dry environment to prevent corrosion of metal contacts.
