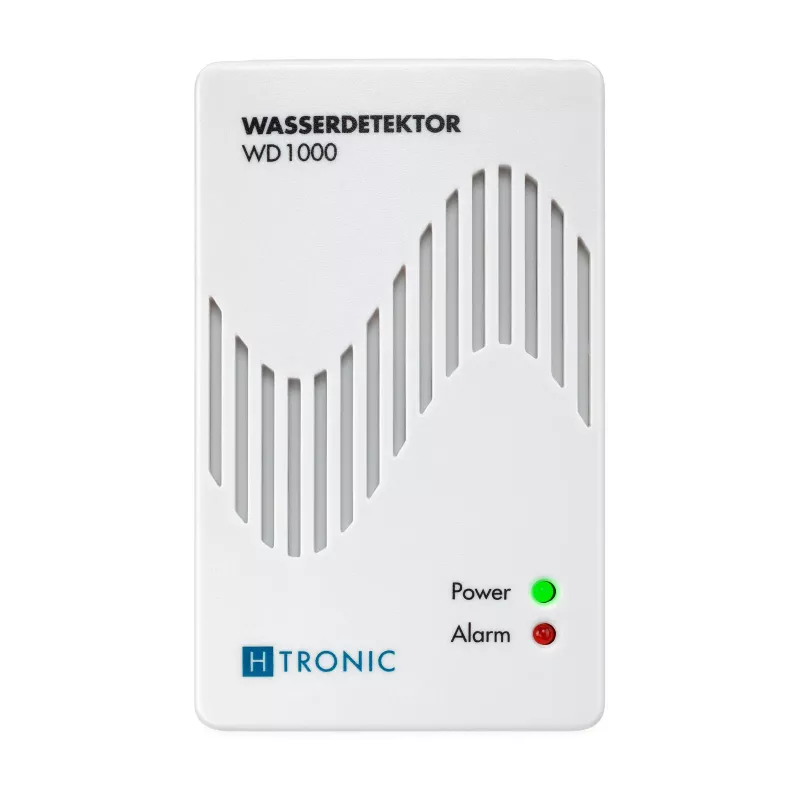

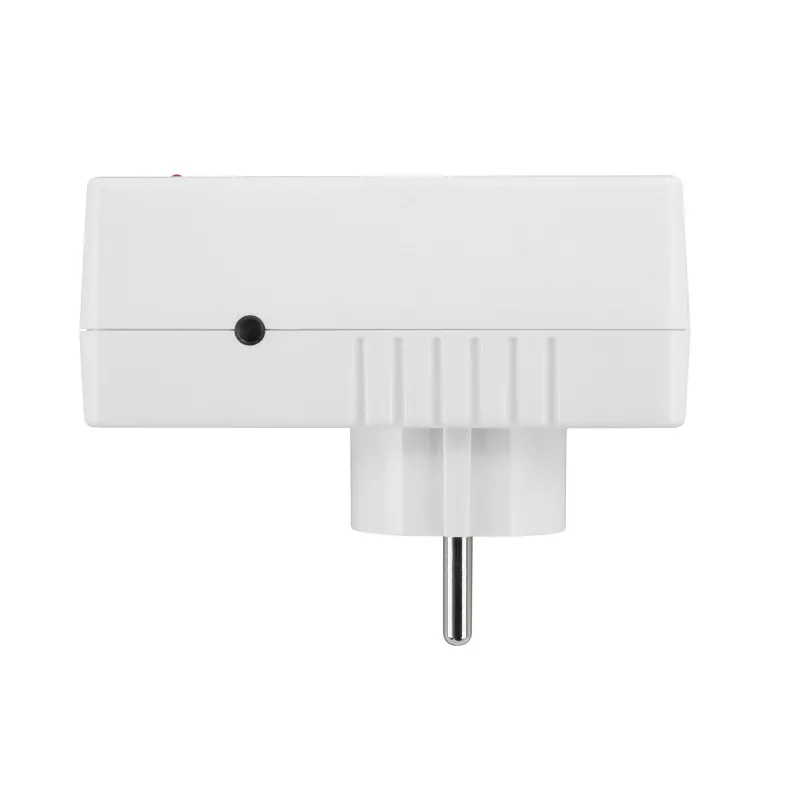

H-Tronic 1114720 Detector de agua con sensor externo, conector macho, 230V AC, alarma acústica 85 dB, salida de relé, cable de sensor 2m

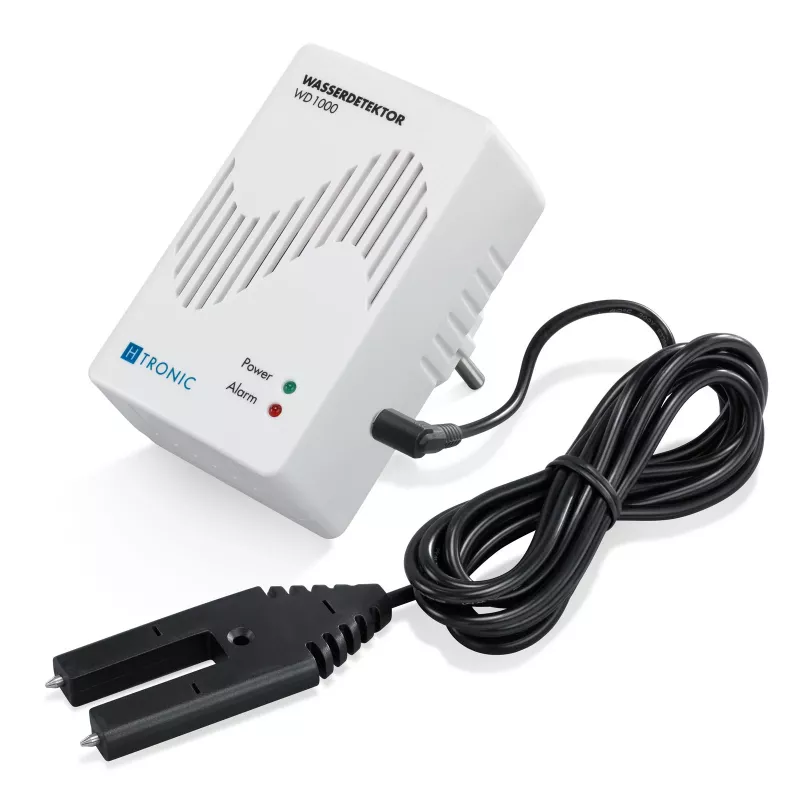

Water leak detector with external sensor, powered directly from a 230V wall socket. Detects water presence conductively via a 2-meter wired sensor and triggers an acoustic siren and visual LED alarm within 2 seconds. Equipped with a potential-free changeover relay for integration into alarm or building management systems.

Advantages

Immediate audible and visual alert upon water contact. External sensor allows flexible placement in hard-to-reach areas. Relay output enables connection to external alarm systems or actuators. Integrated test button for functional verification. Robust ABS housing for long-term use.

Suitable for

• Basements and cellars
• Laundry rooms
• Bathrooms and kitchens
• Server rooms and technical rooms
• Heating systems and boiler rooms

Key specifications

• Detection method: conductive via external sensor
• Sensor cable length: 2 m
• Alarm volume: approx. 85 dB at 1 m
• Relay output: potential-free changeover contact, max. 250V AC / 5A
• Power supply: 230V AC, 50/60 Hz, power consumption < 2 W
• Response time: < 2 seconds
• Operating temperature: 0°C to +50°C
• Humidity range: 10% to 90% RH (non-condensing)
• Housing material: ABS plastic
• Status indicators: power LED, alarm LED
• Test function: integrated test button

Recommendations

Place the sensor at the lowest point of the area to be monitored. Test the detector regularly using the test button. Ensure the socket is easily accessible for quick disconnection.
