HAGER 3x juego de barras colectoras de cobre univers UM40V4 conexión transformador de intensidad 40x10x170mm estañado (UM40V4)

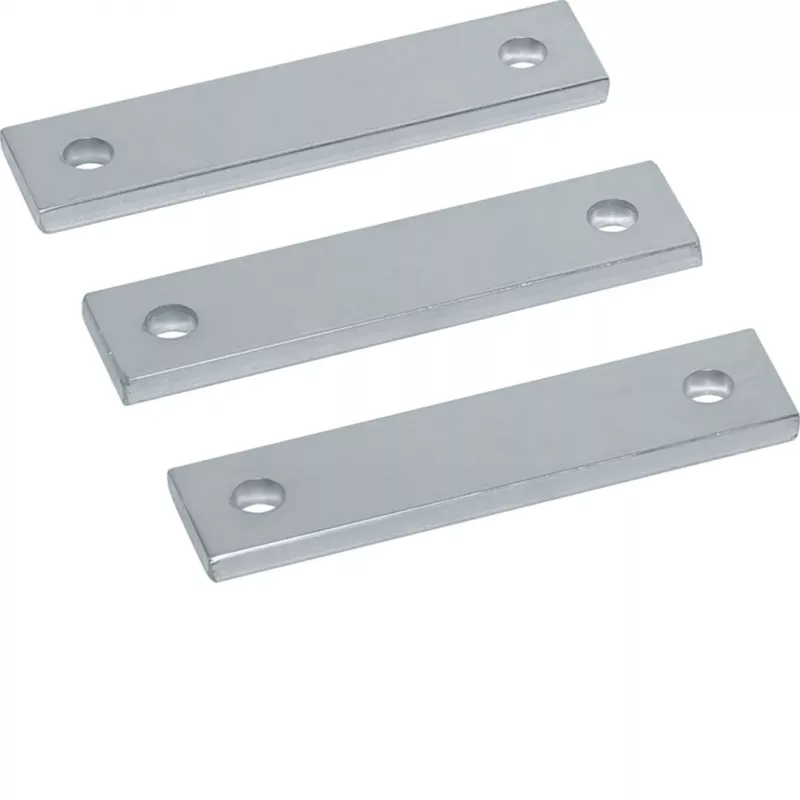

The HAGER UM40V4 is a high-quality copper busbar set designed for current transformer connections in switchgear assemblies. This set includes three tinned copper busbars, each measuring 40mm in width, 10mm in thickness, and 170mm in length, providing excellent electrical conductivity and corrosion resistance. Ideal for use with Hager univers Z distribution boards, this busbar set ensures reliable power distribution and easy installation.

Advantages

Enhanced corrosion resistance due to tinned surface; high electrical and thermal conductivity; robust construction for long-term reliability; compatible with standard switchgear components.

Suitable for

• Current transformer connections in Hager univers Z distribution boards
• Vertical or horizontal mounting in switchgear assemblies
• Applications requiring up to 630 A rated current and 1000 V rated voltage

Key specifications

• Product Type: Copper Busbar Set
• Number of Busbars: 3
• Material: Copper, tinned
• Busbar Dimensions: 40mm x 10mm x 170mm (each)
• Rated Current: Up to 630 A
• Rated Voltage: Up to 1000 V AC/DC
• Mounting Type: Bolt-on
• Standards: IEC/EN 61439

Recommendations

For optimal performance, ensure proper torque settings during installation and use compatible Hager accessories. This busbar set is a reliable choice for professional electrical installations.
