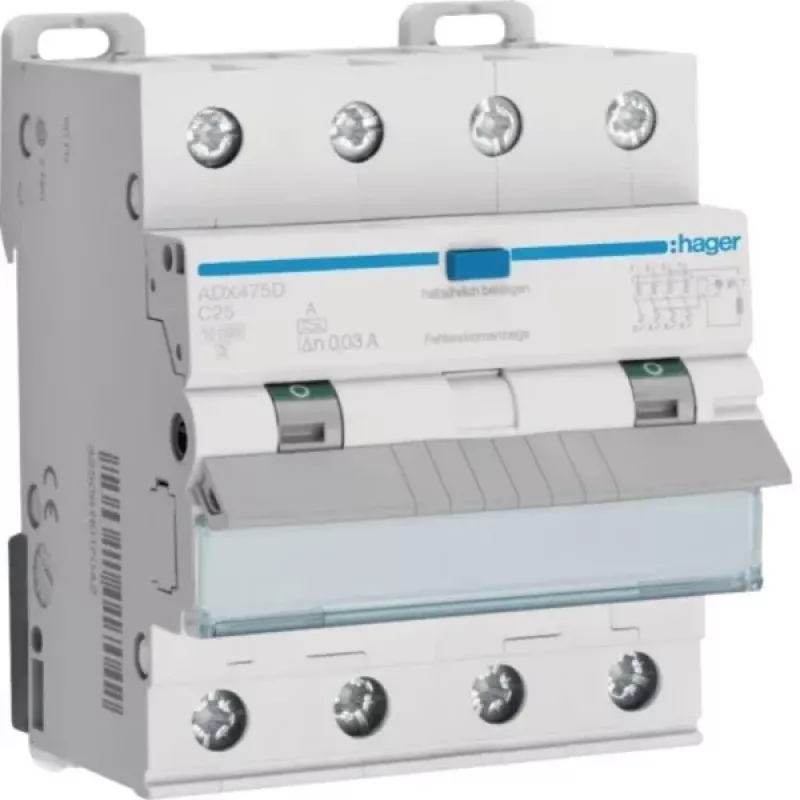

Hager ADX475D interruptor diferencial magnetotérmico RCBO 4P 10kA C-25A 30mA tipo A

Electricians and panel builders install the Hager ADX475D in three-phase distribution boards to protect circuits against both overload and earth leakage. This 4-pole RCBO combines a 25 A C-curve miniature circuit breaker with a 30 mA Type A residual current device in a 4-module DIN rail housing.

Key specifications

• Rated current: 25 A
• Tripping characteristic: C
• Residual operating current: 30 mA
• Residual current type: A
• Breaking capacity: 10 kA
• Rated voltage: 230/400 V AC
• Frequency: 50/60 Hz
• Number of poles: 4
• Module width: 4 modules
• Mounting: DIN rail
• Degree of protection: IP20
• Operating temperature: -25 to 40 °C
• Standards: EN 61009-1

Why choose it

The ADX475D provides combined protection in a single device, saving space and simplifying wiring. Its Type A residual current detection covers AC and pulsating DC fault currents, making it suitable for circuits with electronic loads.

Ideal use cases

• Protection of three-phase socket outlets and equipment in commercial and industrial installations
• Circuits with electronic ballasts, LED drivers, or single-phase inverters
• Distribution boards where space is limited and individual circuit protection is required

Good to know

Screw terminals accept conductors from 1.5 to 25 mm² rigid and 1.5 to 16 mm² flexible. The device is compliant with EN 61009-1 and rated for 10,000 electrical operations.
