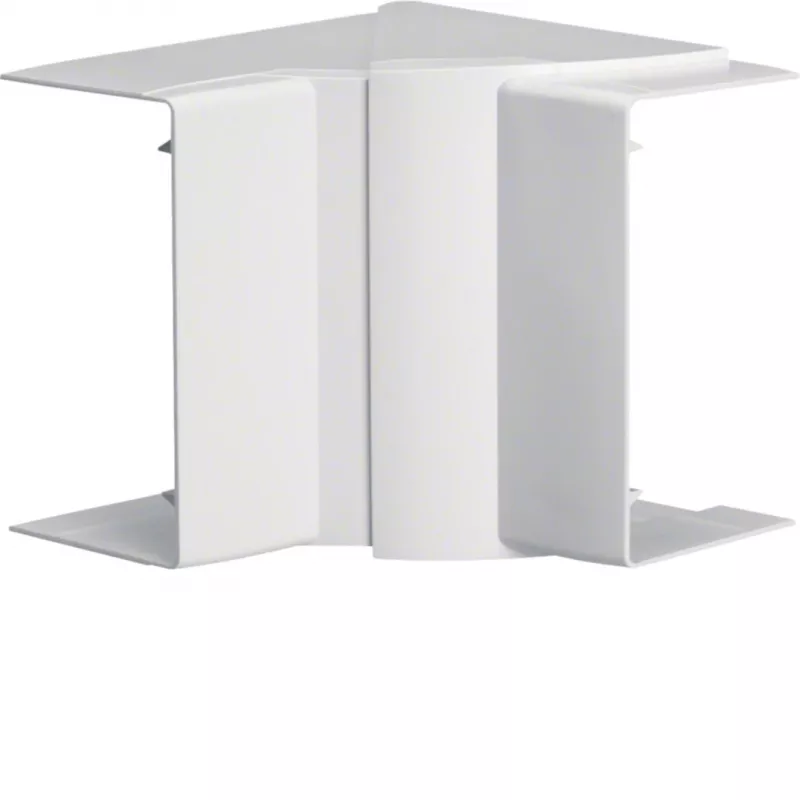

HAGER Ángulo interior ajustable LFF6011049016 para canal LF/LFF/LFH 60x110, PVC, blanco

This HAGER adjustable inner corner is a purpose-built component for OBO Bettermann LF, LFF, and LFH trunking systems with 60x110 mm dimensions. Unlike fixed corners, its adjustable angle allows precise alignment on non-standard wall angles, ensuring a clean, professional cable routing finish. The clip-on design simplifies installation without additional tools or adhesives, and the smooth PVC surface in pure white (RAL 9010) blends seamlessly with matching trunking.

Highlights

• Adjustable angle for flexible inner corner installation
• Compatible with LF, LFF, and LFH trunking, 60x110 mm
• Quick clip-on mounting – no screws or glue required
• Durable PVC construction, indoor use

In daily use

The corner snaps securely onto the trunking profile, maintaining a continuous cable pathway while accommodating irregular wall angles. Its smooth, pure white finish matches standard trunking, keeping installations tidy in offices, homes, and commercial spaces. The material is self-extinguishing and designed for interior environments with temperatures from -5 to +60 °C.

Full specifications

• Product type: Adjustable inner corner
• Compatible trunking system: OBO Bettermann LF/LFF/LFH
• Compatible trunking dimensions (H x W): 60 x 110 mm
• Material: PVC (Polyvinyl Chloride)
• Colour: Pure white (RAL 9010)
• Angle adjustment: Yes
• Installation type: Clip-on / snap-on
• Application: Interior cable routing
• Halogen-free: No
• UV resistance: No (indoor use)
• Temperature range: -5 to +60 °C
• Fire behaviour: Self-extinguishing
• Surface finish: Smooth

Final note

A reliable adjustable corner for precise trunking turns, engineered for straightforward installation and a clean appearance.
